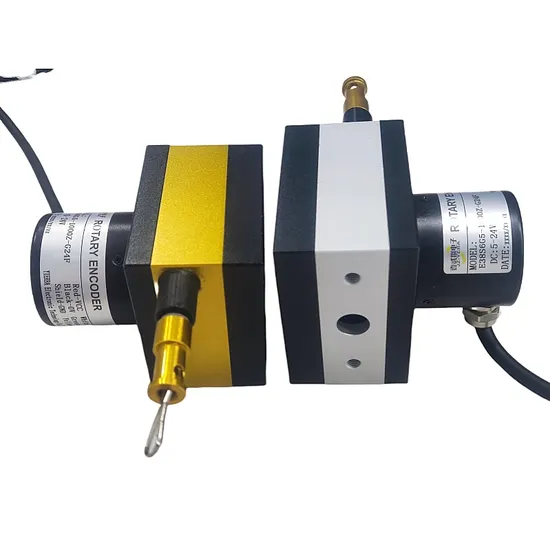

Industrial Automation Production Pulse-Select Multi-Wire Linear Displacement Encoder

Product Description

Why Choose Us Exhibition Product Description

Encoder signalABZ	Collector open-drain output. Differential outputs. Push-pull output. Voltage output. (Default push-pull output)	Cord	Highly flexible wire rope
Range	10-1000.10-1500.10-2000.10-2500	life span	10 million times under normal conditions
Operating voltage	5V or 5V-24V optional	Ingress protection	IP51
Resolution (P/R)	50P/R-5000P/R optional	Operating temperature	-25-85
Housing material	Aviation aluminum.Surface antistatic oxidation treatment	precision	0.06%FS
Encoder cable length	Customized on request (default 1.5 meters)	Round-trip accuracy	0.015%
Measure the perimeter	10-1000circumference10010-1500circumference100 10-2000circumference15010-2500circumference150

Dimensional drawings Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Other products Hotoelectric incremental rotation coding is suitable for automation equipment and recording the speed of the motor, the company supports customization and a variety of pulses, the output mode is optional, please contact customer service for consultation. Instructions:
1, all products are new, the highest quality components, brand new unused products.
2. The picture is for reference only. More accurate data can be consulted by customer service.
3. Prices, specifications and availability of all products are subject to change without notice.
Payment Terms:
1. TT, PayPal and L/C are accepted. The rest of the payment is negotiable
2. After successful payment, you can send us a reference number or MTCN for confirmation.
Transportation:
1. We will deliver the goods within 3-7 working days after payment (except for special requests).
2. We deliver to you by Courier, sea and air according to your request.
3. Any import charges or freight charges shall be borne by the Buyer.
Warranty:
Warranty based on the following:
1. One year of quality assurance.
2. If the quality of the goods you buy from our company is not perfect or the goods are defective, please inform us within 3 days after delivery.
3. Any item must be returned in its original condition to be eligible for a refund or replacement.
Installation and use:
1. Installation
The product consists of precision parts. Treat this product with caution. When installing the product, if the eccentricity and deflection Angle are large, the load on the shaft will increase, and the life cycle and accuracy of the product may be shortened.
When inserting the coupling into the shaft, do not use a hammer or other strong impact.
Step 2 Use
Do not disconnect or connect the circuit when it is powered on. May damage the device. Do not connect cables when the power is on. Do not splash water, oil, etc. on the electronic products, and cover the protective cover if necessary.
3. Environment
Do not use this machine in the following environments, otherwise it may cause failure.
This product or part may be damaged by strong vibration or shock.
Where there is a large amount of flammable or corrosive gases. A place where a strong magnetic field or electrical noise occurs. Places that exceed rated temperature or humidity. A place near a strong acid or base.
4. Vibration and shock
If the product is subjected to a large impact or strong vibration, it may cause pulse error.
High resolution encoders are susceptible to vibration, so check the encoder's links.
5. Wire connection
After wiring fixed devices and cables, do not unplug cables with a strength greater than 30N.
If the wire encoder cable is in the same conduit as the high voltage or power cable, failure or interference may result. Separate wiring or use separate conduits.
Interlocution
Q: Can it be used underwater?
A: This one can't, but the custom waterproof one can.
Q: I want to extend the cable.
Yes, our products are standard with 1.5 meters, if you need to extend, you can contact us for consultation.
Q: I need a special look.
A: Yes, we can customize products for you according to your requirements.
Q: Can you help me post my own brand?
A: Yes, we can provide you with OEM assistance according to your requirements.
