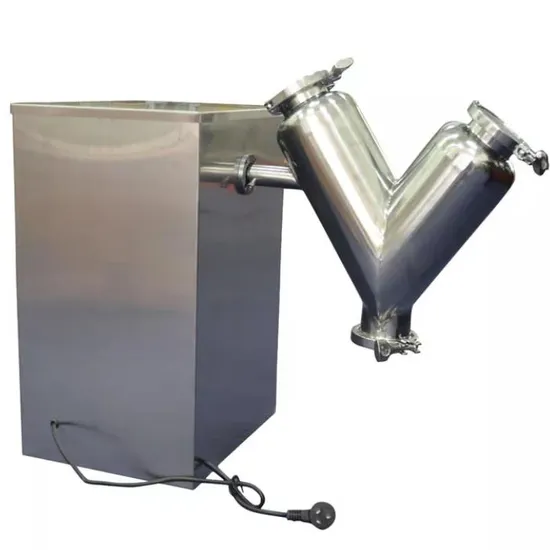

Vh-5 Small Single-Arm Powder Mixing Machine for Lab Mixer

Product Description

VH-5 Small Single-Arm Powder Mixing Machine for Lab Mixer Product Name : Powder Mixer Machine
Model: VH-5
Barrel Capacity: 5L
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 2L
Range of Spindle Speed(r.p.m): 1 - 25 r.p.m
Max. Loading Capacity: 2
Weight (KG): 60 KG
Material: SUS304
Voltage: 220V OR 110V
Dimension(L*W*H):610*550*700mm
Certification: ISO9001:2008
Power (kW): 0.55 kW
Warranty: 1 Year
After-sales Service Provided:Video technical support

Model	VH-5
Barrel volume (L)	5
Working volume (L)	2
Optimum loading (Kg)	1.4 (Actual situation depends on the proportion of raw materials)
Motor power (Kw)	0.55
Mixing speed (r/min)	25
Overall size (mm)	610*550*700
Net weight (Kg)	48
Best mixing time per time (min)	15-20

VH-5 Mixer Machine Details
1. Compact structure, easy to operate and maintain.
2. Made of stainless steel, meets GMP standard.
3. Elegant design of V-like machine body to blend stuff with no dead corner.
4. Works very steady and quite.
5. Digital control the blending time.
VH-5 Mixer Machine Application: This machine is suitable for mixing dry powder or granular materials such as pharmaceuticals, chemical industry and food.
The power of motor is transmitted to reducer through belt, and reducer is transmitted to V-barrel through coupling.
The V-shaped barrel can be continuously operated, and the materials in the barrel can be fully mixed in the upper, lower, left and right parts of the barrel.
Medicine: capsule granules, Chinese herbal condiments, powdery or granular Chinese herbal medicine, Western medicine and other mixtures.
Chemical products: iron powder, copper powder, magnesium powder and other chemical powder.
Feed: It can be mixed with various feeds, such as fishery feed, poultry feed, wildlife feed, fowl feed and so on.
Food: such as condiments, additives, vitamins, and various sugar products.
1. VH Blenders are commonly used in pharmaceutical, nutriceutical, chemical,food and related industries to mix dried powder and granules.
2. VH Blenders are rugged in designed and construction, 304 S.S. (optional 316L) mirror polished of inner andouter shell to meet the GMP Standard.
3. We offer the most affordable VH-Blenders in the market from laboratory to large scale productionbatch.
4. We used heavy duty industrial Motors & Drives for all 3-Phase VH and intensifier bar.
Structure:
1. This machine is composed of V-type asymmetric mixing barrel, two-phase motor, reducer, time relay and other components, with high mixing uniformity. Because of the unequal length of the two cylinders and the time difference of material flow in the cylinder, the mixing efficiency and uniformity are very high.
2. Low noise, beautiful and concise appearance, convenient operation and maintenance, no residue, no cross-contamination. There is no dead angle between the inner part of the cylinder and the contact part of the material, the mixing process is mild, no segregation, complete discharge, no residue, and no cross-contamination.
3. The machine is made of 304 stainless steel for the contact part and shell with medicine. The cylinder body is made of stainless steel. It is corrosion-resistant and has long service life.
Technical Parameter of other models small powder mixer Machines :

Product Name	VH-2	VH-5	VH-8
Volume(L)	2L	5L	8L
Max. Loading Capacity(L)	1L	2L	4L
Max. Loading Quantity(g)	600g	2000g	5000g
Mixing speed (r/min)	1 - 24r/min	1 - 25r/min	1 - 35r/min
Working Voltage(V)	220V or 110V	220V/ 110V	220V or 110V
Motor power (Kw)	0.25Kw	0.55Kw	0.55Kw
Dimensions (cm)	41*34*40cm	61*55*70cm	61*55*70cm
Machine weight (Kg)	16KG	48KG	51KG
Packing weight (Kg)	19KG	55KG	60KG

FAQ ( Frequently Asked Questions ) Q: What's your MOQ ?
A: It is ok if you need 1 piece of this small mixer machine for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment way with trade assurance .
Q: Do you have 220V motor and 110V motor for Choice ?
A: We have 110V and 220V motor for choice, and meanwhile we have different plug for different countries, our clients can use it directly after receiving it .
Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
