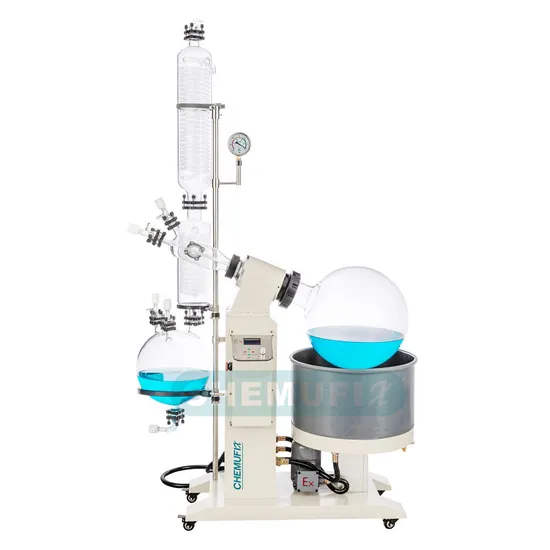

5L 10L 20L 50L Laboratory Rotary Evaporator Rotovap
| US$1,475.00-6,063.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RE-LA Series
Application
Industry, School, Hospital, Lab
Customized
Customized
Certification
CE, ISO
Structure
Desktop
Material
Stainless Steel
Type
Rotary Evaporator
Rotary Speed
10to140r/Min, 10to130r/Min, 10to110r/Mi
Evaporating Flask
5L, 10L, 20L, 50L
Receiving Flask
3L, 5L, 10L, 20L
Rotary Motor Power
40-120W
Elevating Mode
Electric & Manual
Temp. Range
Digital Display, Rt~99°c
Vacuum Degree
399.9PA (Below 3mmhg)
Transport Package
Carton/Plywood
Specification
765L*400W*1070H mm
Trademark
XIANGYI
Origin
China
HS Code
8419409090
Production Capacity
100 PCS/Month
Product Description
Usage:
Large capacity, large diameter rotary evaporator flask, evaporation area, the vacuum water bath, while rotating edge heating, evaporation of the solution diffusion efficiency can be used for biological, pharmaceutical, chemical, food and other small scale areas, Chinese and production. Products with recycled water multi-use vacuum pumps, diaphragm pumps, low temperature cycle (vacuum) pumps, circulating cooler, constant temperature circulator, low temperature cooling liquid circulating pump and other devices supporting component systems.
Features:
Teflon (PTFE) and fluorine rubber dual rotating seal, patented technology to ensure high vacuum. The introduction of foreign advanced frequency control system, temperature control system, accurate and reliable. A vacuum switching valve, without affecting the system vacuum distillation of the situation and the solution can be continuously collected. Water bath electric lift and manual lift support, easy to use. PTEE discharge valve, corrosion resistance, pollution-free.
Specifications:
| Technical Parameters: Model | RE-LA-5 | RE-LA-10 | RE-LA-20 | RE-LA-50 |
| Capacity of Rotary Bottle | 5L | 10L | 20L | 50L |
| Flanged diameter | Φ50mm | Φ95mm | Φ95mm | Φ125mm |
| Capacity of Collecting bottle | 3L | 5L | 10L | 20L |
| Rotary control | LCD display, frequency conversion stepless | |||
| Rotary speed | 10to140r/min | 10to130r/min | 10to130r/min | 10to110r/min |
| Power of rotary motor(W) | 40W | 90W | 120W | 120W |
| Condensing tube | Vertical double serpentine tube | Vertical, main + auxiliary cooling and highly efficient three circulating | ||
| Water Bath | Stainless steel water bath | |||
| Temp. Range | Digital display, RT~99°C | |||
| Vacuum degree | 399.9Pa (below 3mmHg) | |||
| Evaporating capability | Water≥2L/h Alcohol≥4L/h | Water≥3.2L/h Alcohol≥6.5L/h | Water≥5L/h Alcohol≥11L/h | Water≥9L/h Alcohol≥19L/h |
| Elevating mode | Electric | Electric & manual | ||
| Elevating stroke | 0~150mm | 0~160mm | 0~190mm | 0~230mm |
| Power supply | 220-240V/50Hz | 380V/50Hz | ||
| Power | 2.2KW | 4.8KW | 6.3KW | 8.3KW |
| Dimensions(mm) | 765L*400W*1070H | 920L*550W*1700H | 1250L*600W*2100H | 1320L*770W*2340H |
