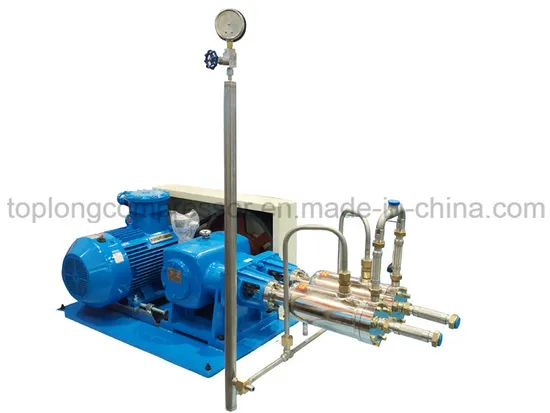

Cryogenic Liquid Cylinder Filling Pump (Svmb300-600/165)
| US$1,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SVMB300-600/165
Position of Pump Shaft
Horizontal
Certification
CE, ISO, RoHS
Hs
8413810090
Color
Blue Type
Material
Copper and Stainless
Voltage
220V 60Hz /380V 50h /440V 60Hz
Transport Package
Carton/Plywood
Specification
CE GS
Trademark
Toplong compressors
Origin
China
HS Code
8413810090
Production Capacity
10000PCS/Month
Product Description
high pressure cyrogetic liquid Cylinder Filling PumpLiquids Pumped
LO2, LN2, LAR, LNG
Technical Parameters
Optional Configuration
Frequency converter
Overpressure interlocking device
Safe valve/Cryogenic check valve
Temperature interlocking device of outlet
Temperature interlocking device inside pump
Featuring
Classic design, stable performance, service life of product can last as long 20 years
Vacuum jacketed pump head with 10-5 torr vacuum degree and low cold loss
Reliable sealing effect, filling service life is as many as 1500, 000 cylinder times.
Service life of piston ring is as many as 300, 000 cylinder times.
Convenient reparation, regularly Only 2 hours will be enough
Can be kept functioning continuously for 24 hours
| Model | Type | Flow Range L/h | Inlet Pressure Mpa | Max Pressure Mpa |
| SVOC30-80/165 SVNB50-150/165 SVNB100-450/165 SVMB300-600/165 SVMA400-800/165 | Single Horizontal Piston | 30-80 50-150 100-450 300-600 400-800 | 0.02-1.6 | 16.5 |
| DVNA400-1000/165 DVMB600-1200/165 DVMA800-1600/165 | Double\ Horizontal Piston | 400-1000 600-1200 800-1600 | 0.02-1.6 | 16.5 |
| SVNB100-200/200 SVNB200-450/200 SVMB300-600/200 | Single\ Horizontal Piston | 100-200 200-450 300-600 | 0.02-1.6 | 20.0 |
