PLC Crimping Curved Arch Roofing Sheet Making Machine Cold Roll Forming Machine

Product Description

Product Description

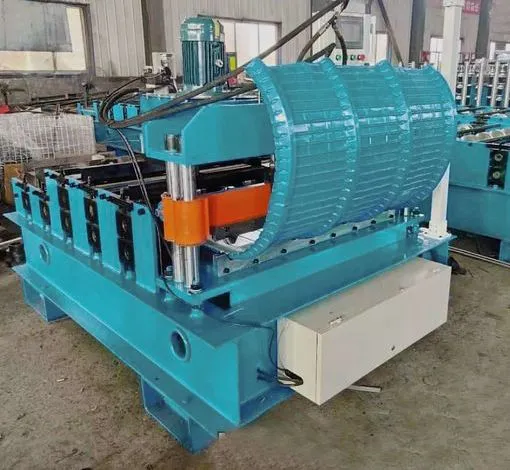

Crimping Curved Arch Roof Sheet Roll Forming Machine
The crimping roll forming machine is composed of hydraulic shear head, roll forming system, electrical system, etc.
The IBR/TRAPEZOID roof roll forming machine has the following characteristics:
1. Advanced technology: the line adopts continuous coil production after cold bending to determine the precision of the long cutting parts forming shape rules length accurate consistency.Good appearance and high strength of molding workpiece.
2. High productivity: this line only needs 2-3 people to operate, with simple operation and low labor intensity. The production
speed of this line is adjustable from 0 to 15 meters per minute, and the normal operation speed is 8 to 10 meters per minute.
3. High reliability: the main components of the hydraulic, pneumatic and electrical systems of this line all adopt imported
high-quality components with stable performance and high reliability materials applicable to high technical parameters.
Profile Drawing
Detailed Parameters

Main Technical Parameters

Weight	About 3500kgs
Size	About 1.5m x 1.4m x 1.4m (length x width x height)
Material	PPGI colored steel plate galvanized plate
Thickness	0.3-0.8mm
Coil width	1000mm
Quantity of forming rollers stations	5
Diameter of forming rollers shafts	70mm
Roll Forming Speed	8-15m/min
Forming rollers material	45# steel with CNC machining and surface is being hard chrome
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	DELTA PLC and Converter
Electric Power requirement	Main motor power: 3kw
	Hydraulic unit motor power: 3kw
Electric voltage	According to customer's requirement
