Automatic Hand Operated Cold Olive Sunflower Seed Coconut Peanut Screw Oil Press Machine

Product Description

Automatic Hand Operated Cold Olive Sunflower Seed Coconut Peanut Screw Oil Press Machine
Product Description

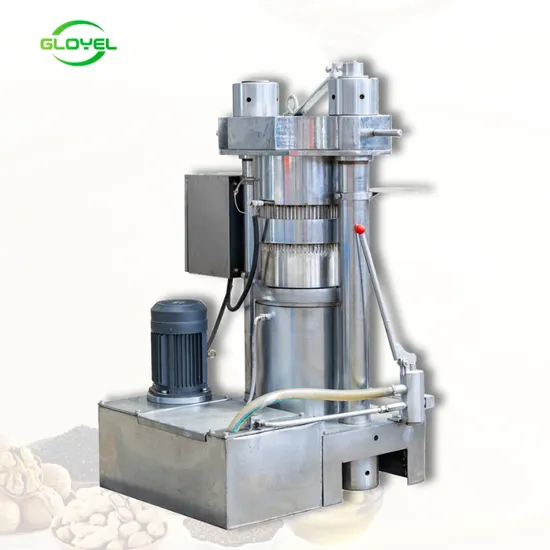

This machine is mainly composed of frame, cylinder, hydraulic station, manual reversing valve, oil barrel, tray and electrical control part.
Best selling hydraulic oil pressers is based on the principle of liquid static pressure transmission to the hydraulic pressure as the transmission medium to squeeze the oil and then pressed out of a squeezing oil equipment. This machine is a closed circuit system composed of two parts of the hydraulic system and the oil press mainframe. Hydraulic press squeezing method is a purely physical method of squeezing oil.
Product Parameters

Model	Capacity(L/H)	Power(kw)	Working Pressure	Working Thrust	Voltage	Weight(kg)	Dimension(mm)
6YY-250C (Perforated barrel,single barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1300KG	1300*1300*2300MM
6YY-250C (Perforated barrel,double barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1500KG	2050*1300*2300MM
6YY-250C (Row barrel,single barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1400KG	1300*1300*2300MM
6YY-250C (Row barrel,double barrel)	90L/H	3KW	≤30MPA	147T	380V,50HZ	1600KG	2050*1300*2300MM
6YY-250F	100L/H	3KW	≤40MPA	196T	380V,50HZ	1600KG	1300*1300*2300MM
6YY-250D	110L/H	3KW	≤40MPA	196T	380V,50HZ	1700KG	1300*1300*2300MM
6YY-280D (Perforated barrel,single barrel)	110L/H	3KW	≤50MPA	250T	380V,50HZ	2350KG	1300*1300*2550MM
6YY-280D (Perforated barrel,double barrel)	110L/H	3KW	≤50MPA	250T	380V,50HZ	2500KG	2020*1300*2550MM
6YY-280D (Row barrel,singel barrel)	110L/H	3KW	≤50MPA	308T	380V,50HZ	2350KG	1300*1300*2550MM
6YY-280D (Row barrel,double barrel)	110L/H	3KW	≤50MPA	308T	380V,50HZ	2600KG	2020*1300*2550MM

Related Product
6YL Series oil press

Model	Hydraulic power(Ton)	Heating power (KW)	Processing capacity (kg/h)	Weight (KG)	Dimensionsmm
6YL-80ZD (Complete Machine)	6-pole 5.5	3	80-160	550	1700*1300*1600
6YL-100ZD (Complete Machine)	6-pole 7.5	3.5	150-260	760	2020*1315*1570
6YL-120ZD (Complete Machine)	6-pole 11	4	260-400	915	2060*1345*1570
6YL-150ZD (Complete Machine)	6-pole 30	5	450-550	1550	2700*2910*1635
6YL-80 (Single Machine)	6-pole 5.5	3	80-160	480	1700*1000*1700
6YL-100 (Single Machine)	6-pole 7.5	3.5	150-260	670	2020*1050*1580
6YL-120 (Single Machine)	6-pole 11	4	260-400	820	2060*1050*1580
6YL-150 (Single Machine)	6-pole 30	5	400-500	1285	2700*1100*1650

Final Product
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Company Profile
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can also meet the special voltage demand.
5.The engineer is available to service machinery oversea. FAQ

Q1:How can I pay my order ? -----We can accept payment through Payment terms: T/T; L/C; Western Union; Money Gram.

Q2:What's the certification of your baling machine? ------CE Certification.

Q3: How to pack the products? ------We will use standard export package.

Q4:How to install after the equipment arriving destination? ------We will provide detailed illustrations for you.

Pls click "SEND" ask for more Catalog & EXW Price of our Machine
