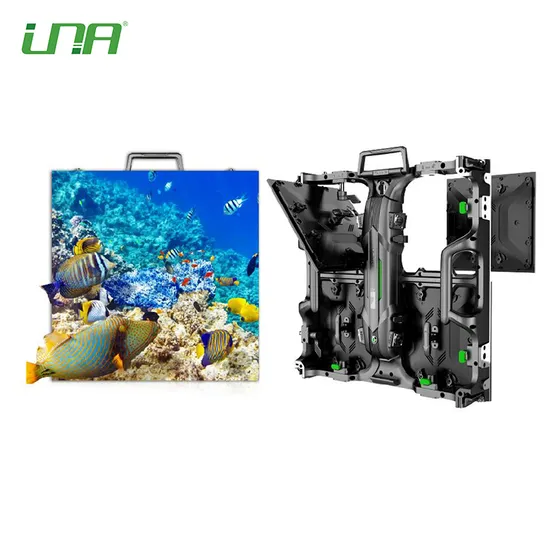

Events Die-Cast Aluminum Rental LED Sign Video Screen Smart P3.91 Full Color Digital Display
| US$800.00 | 5 Square Meters (MOQ) |
Basic Info.
Model NO.
UNA-OP39-500
Pixel Pitch
3.91mm
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
350W / m²
Pixel Density
65536dots/M2
Scanning Mode
1/4 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS
Application1
Museum
Application2
Stadium
Application3
4s Shop
Application4
Show Room
Application5
Meeting Room
Application6
Conference Room
Application7
University
Application8
School
Application9
Education Institution
Application10
Library
Application11
Plaza
Application12
Building
Application13
Square
Application14
Public Plaza
Application15
Shopping Building
Transport Package
Flight Case
Specification
500x500mm
Trademark
UNA
Origin
China
HS Code
8528591090
Production Capacity
50000m2 Per Month
Product Description
Events Die-Cast Aluminum Rental LED Sign Video Screen Smart P3.91 Full Color Digital DisplayProduct Description:
| Specifications | ||||||||||||
| Pixel pitch(mm) | 2.6 | 2.976 | 3.91 | 2.976 | 3.91 | 4.81 | ||||||
| LED type(SMD) | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 | ||||||
| Module Size(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | ||||||
| Module Resolution(dot) | 96x96 | 84x84 | 64x64 | 84x84 | 64x64 | 52x52 | ||||||
| Module Pixel | 9216 | 7056 | 4096 | 7056 | 4096 | 2704 | ||||||
| Pixel Density(dot/sqm) | 147456 | 112896 | 65536 | 112896 | 65536 | 43264 | ||||||
| Best View Distance | >2.5m | >3m | >4m | >3m | >4m | >5m | ||||||
| Cabinet size(W*H) mm | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 |
| Cabinet Resolution(dot) | 192x192 | 192x384 | 168x168 | 168x336 | 128x128 | 128x256 | 168x168 | 168x336 | 128x128 | 128x256 | 104x104 | 104x208 |
| Usage | Indoor / Rental | Outdoor / Rental | ||||||||||
| Water proof IP rate | IP31 | Front: IP65; Rear:IP54 | ||||||||||
| Brightnees(nits) | <1100 | <5000 | ||||||||||
| View angle | H: 160° / V: 160° | |||||||||||
| Gray scale | 16 bit | |||||||||||
| Refresh Rate | 1920Hz / 3840Hz | |||||||||||
| Diving Mode | 1/16 scan | |||||||||||
| Lifespan(H) | >100 000 | |||||||||||
| Power Comsumption(max.) | 550 | 600 | 800 | |||||||||
| Power Comsumption(ave.) | 180 | 200 | 266 | |||||||||
| Environment | ||||||||||||
| Working Temperature | -20ºC ~ + 60ºC | |||||||||||
| Working Humidity | 10% ~90% | |||||||||||
| Storage Temperature | -35ºC ~ + 85ºC | |||||||||||
| Storage Humidity | 10% ~90% | |||||||||||
| Material | ||||||||||||
| Cabinet | Die-cast aluminium | |||||||||||
| Maintenance | Front-side / Rear-side access (Optional) | |||||||||||
| LED chip | Nationstar / King light (Optional) | |||||||||||
| Power supply | Meanwell / G-energy (Optional) | |||||||||||
| Controlling system | Novastar / Linsn / Colorlight (Optional) | |||||||||||
| Installation | Free standing / Hanging (Optional) | |||||||||||
Manufacturer:
Exhibitions:
Certificates:
2. Features: 1. High Quality LED Lamps 2. Hight brighenss & high contrast rate
3. Constant current IC & control system
4. Large area splicing, high color uniformity
5. Low light decay, super long lifespan
6. Standard Module & Cabinet
7. Wall mounted or Pole fixed installation
3. Advantages:
A: High refresh rate: With NOVAstar control system,no scanning line when photographed
B: High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
C: High resolution: The most apparent features of the new generation of LED display
D: Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
E: High Brightness: 6000-8000cd/m2, brightness automatically adjusted
F: High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
G: Long life span: over100,000hours, warranty at least 2 years.
H: You need = We design: Provide Personal- Customized led offer.
