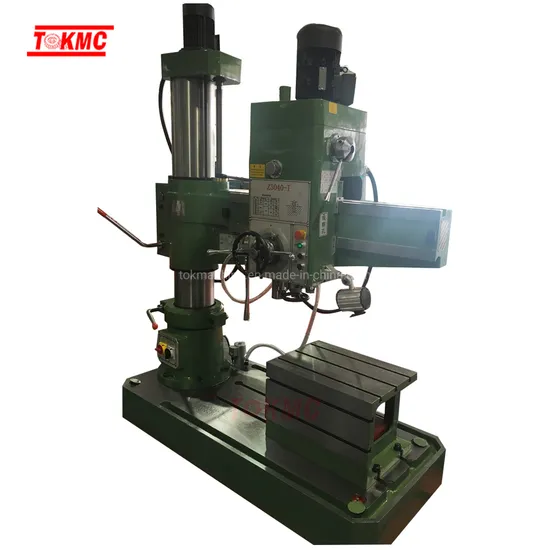

Drilling Dia 40mm Steel Universal Metal Hydraulic Radial Arm Drilling Machine
| US$4,000.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
z3040x14
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Type of Machine
Radial Drilling Machine
Max.Drilling Dia.
40mm Steel and Cast Iron
Spindle Travel
260mm
Spindle Cone
Mt4
Spindle Speed Step
12
Motor Power
3 Kw
Accuracy
Within 5
Keywords
China Radial Drilling Machine
Transport Package
170X705X220 Cm
Specification
1500/1600 kgs
Trademark
tokmc
Origin
Shandong China
HS Code
84592900
Production Capacity
100 Sets/Year
Product Description
hydraulic clamping drilling dia 40mm steel universal radial drilling machine| Model | UNIT | Z3040x11-1 | Z3040x14-1 |
| Max.drilling dia. | mm | 40 cast iron/ steel | 40 cast iron/ steel |
| Distance between spindle axis and column surface | mm | 350-1030 | 320-1370 |
| Headspindle level travel distance | mm | 670 | 1000 |
| Distance from spindle nose to table surface | mm | 170-1110 | 280-1210 |
| The rock lift height | mm | 680 | 680 |
| The rock up and down speed | Mm/m | 1.32 | 1.32 |
| Rock rotary angle | Degree | ±90 | ±90 |
| Spindle Cone | MT | 4 | 4 |
| Spindle travel | mm | 260 | 260 |
| Spindle speed step | 12 | 12 | |
| Spindle speeds range | r/min | 40-1896 | 40-1896 |
| Spindle feeding step | 4 | 4 | |
| Spindle feeding range | mm/r | 0.13-0.54 | 0.13-0.54 |
| Max.torque of spindle | N | 200 | 200 |
| Max. Resistance of the spindle | N | 10000 | 10000 |
| Main motor power | kw | 3 | 3 |
| N.W./G.W. | kg | 1500/1600 | 1900/2200 |
| Overall dimensions(L×W×H) | cm | 170x705x220 | 205x820x24 |
