UTP CAT6 Keystone Jack RJ45 Network Module Jack CAT6 Ethernet Connector 8p8c Keystone Jack Module

Product Description

Product Description UTP CAT6 Keystone Jack RJ45 Network Module Jack CAT6 Ethernet Connector 8p8c Keystone Jack Module

Applicattion: Structured cabling transmitting data ,voice, video. Suitable for working area, central room, managing room, equipment room and subsystem applications. Telephone, Computer, Workstation, Mobile phone, Laptop.

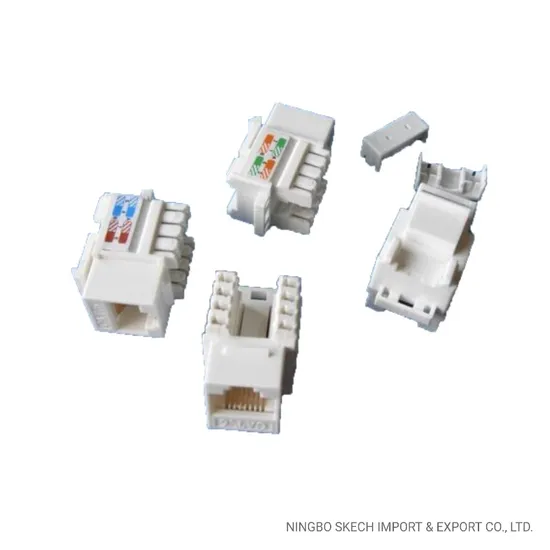

Detailed Photos
Standards Verification:
ANSI/TIA-568-C.2 ;
ISO/IEC 11801 :2002/Amd.2:2010 ;
YD/T 926.3-2009 ; ISO/IEC 60603-7 COMPLIANT ;
RoHS directive 2002/95/EC compliant

Product Parameters

Electrical
Part Number	KJ-UC6-024
Category	CAT6
Color	White, Black
Current Rating	1.5A
Insulation Resistance	≥ 500 MΩ
Contact Resistance	≤10 mΩ
DC Resistance	≤ 0.1 Ω
DC/AC Volt Endurance	DC1000V/AC750V 1min
Mechanical
Plug Insertion Life	≥750 Cycles with FCC Compliant RJ-45 Plug Min.
Plug & Jack Contact Force	≥100 Grams with FCC Compliant RJ-45 Plug Min.
Plug Retention Force	≥ 11 lbf
Durability	200 Termination Cycles Min.
Operating Temperature	-10~60°C
Operating Humidity	10%~90%RH
Storage Temperature	-40°C TO 68°C
Physicals
Housing	High impact flame retardant plasticUL 94V-0 rated or UL 94V-2
PCB:	FR-4, 1.6mm Thickness
Jack Wire:	0.35 mm Phosphor bronze gold over nickel plating
IDC Conductor	0.5mm Phosphor bronze, tin-plating
Contact Compatibility	Accommodates 26 to 23AWG Solid

Certifications ISO , CE RoHS
Packaging & Shipping Packaging: 1 PC in Ploybga or customized, 500/1000 pcs in one outer standard export carton.

Shipping: By Sea, by Air, by Train, by DHL, UPS,TNT FedEx and EMS express.

FAQ Q1:How can you guarantee the delivery time?
A: To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.

Q2. Can you make products according to the samples?
A: Yes, it's available to make products according to customers' requests. We can set new mould or modify ours .

Q3. What is your sample policy?
A: Free Sample is provided if there is in stock, and customers need to pay the freight fee.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q5: How do you make our business long-term and good relationship?
A: 1.Our high quality and competitive price are the most important factors to maintain long-term and good
relation -ship with our customers.
2. Good service is our basic principle for every customers.

Q6: What's The Lead Time Of Mass Production?
A: Generally 2-4 weeks. We will inform you the delivery time after receiving your payment.
