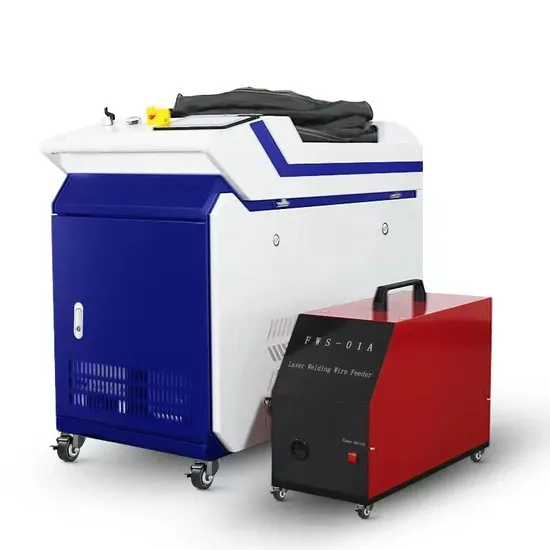

Handheld Laser Beam Welding Machine for Stainless Steel Carbon Steel Aluminum
| US$2,645.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HKD-1500
Application
Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Technical Class
Continuous Wave Laser
Control
Manual
Power Density
Heat Conduct Welding
Laser Classification
Optical Fiber Laser
Type
Optical Fiber Transmission Laser Welding Machine
Transport Package
Wooden Case
Trademark
Inlang
Origin
China
Product Description
Handheld laser beam welding machine for stainless steel carbon steel aluminum1. Portability: The equipment is small in size, light in weight, easy to carry and operate, and suitable for various on-site welding operations.
2. High precision: The laser beam has a small spot, which can accurately control the welding position and welding depth to ensure the welding quality.
3. High efficiency: fast welding speed, small heat-affected zone and small deformation, which can greatly improve production efficiency.
4. Wide applicability: It can be used to weld a variety of metal materials, such as stainless steel, aluminum alloy, etc., and has certain adaptability to the thickness of the material.
| Specifications | Technical parameters |
| Equipment name | Handheld laser welding machine |
| Device model | HKD-1500 |
| Laser generator | 1500W |
| laser wavelength | 1064nm |
| Fiber core diameter | 50μm |
| Fiber length | 10 meters as standard |
| Working Mode | Continuous/Modulated |
| Galvanometer width | 0-5mm |
| Galvanometer scanning speed | ≤8000mm/s |
| Welding speed | 0-120mm/s |
| Refrigeration unit | Intelligent dual-temperature chiller |
| Operating ambient temperature range | 15-35°C |
| Operating environment humidity range | <70% non-condensing |
| Thickness of welding material | ≤4.5m/≤6.5 |
| Weld gap requirements | ≤1mm |
