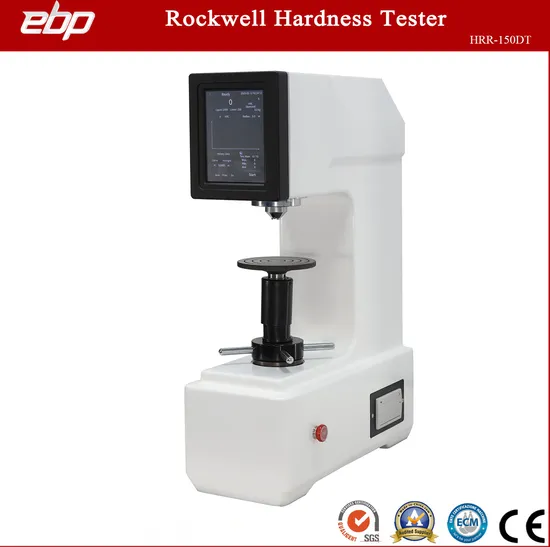

Digital Twin Rockwell and Superficial Rockwell Hardness Tester with Touch Screen
| US$2,000.00-9,900.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HRR-150DT
Application
Metal
Standard
ISO, ASTM, GB/T, BSEN
Warranty
1 Year
Mobility
Desktop
Calibrating Method
Standard Hardness Test Blocks
Rated Voltage
220V
Support Language
English or Chinese
Customized
Customized
Display
LCD Touch Screen
Resolution
0.1hr
Loading - Dwell - Unloading
Automatic
Test Space
200mm X 160mm
Structure
Close Loop Load Cell Structure
Function
Rockwell & Superficial Rockwell
Indenter Protection
with Indenter Protective Device
Data Output
Built-in Printer
Transport Package
Plywood Box
Specification
510x290x730mm
Trademark
EBP
Origin
Zhejiang, China
HS Code
9024102000
Production Capacity
60 Sets Per Month
Product Description
Product DescriptionDigital Twin Rockwell and Superficial Rockwell Hardness Tester with Touch screenMain Function:
HRR-150DT close loop load cell base digital Rockwell & Superficial Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display and good reliability, is a high-tech product combining the mechanic and electric features, which is suitable for the Rockwell hardness test. Support for all the Rockwell scales and superficial Rockwell scales;Support for conversion scales of different kinds of hardness;With arc correction function;Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;With data storage function, automatic calculation of the maximum, minimum, average of the hardness value, the test results can be printed for output.Indenter protective device for more safe and more accuracy test
Built-in printer make data output easilyWith touch screen to operate more convenient
Application range:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.Product Parameters
Technical Specification:
| Model | HRR-150DT |
| Initial Test Force | 3kgf (29.4N) for superficial Rockwell 10kgf (98N) for Rockwell |
| Total Test Force | 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N) 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) |
| Indenter | Diamond Rockwell Indenter, ф1.588mm Ball Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Touch Screen |
| Test Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
| Data Output | Built-in Printer |
| Resolution | 0.1HR |
| Dwell Time | 0-99s |
| Test space | 200mm x 160mm (Height x depth) |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension & weight | 510*290*730mm, 90kg |
| Name | Qty | Name | Qty |
| Instrument Main Body | 1 set | Diamond Rockwell Indenter | 1 pc |
| ф1.5875mmBall Indenter | 1 pc | Middle Plane Test Table | 1 pc |
| Large Plane Test Table | 1 pc | V-shaped Test Table | 1 pc |
| Inner Hexagon Spanner | 1 pc | Spanner | 1 pc |
| Hardness Block | 6 pc | Fuse 2A | 2 pcs |
| Power Cable | 1 pc | Anti-dust Cover | 1 pc |
