EPS Hot Pressing Recycling Machine

Product Description

EPS Foam Hot Melting Styrofoam Densifier recycling machine
EPS Foam Hot Melting Styrofoam Densifier recycling machine is a Styrofoam EPS recycling machine, which can smash the waste Styrofoam materials into small pieces by the blades and screw, and then it could be easily compressed into tight foam ingots at a ratio of 90:1. After compaction, the waste Styrofoam can be reused to make other products, such as frame products and construction moldings.
In addition, the applicable materials also include XPS, EPP, food trays and cups. Wedo EPS recycling machine is able to eliminate all your waste foam recycling concerns.
EPS foam hot melting styrofoam densifier to reduce the size of expanded polystyrene foam and expanded polypropylene foam for easier transportation. It is also called EPS densifier and EPS compactor. It is widely used in sea food processing plant, electronic factories, White goods and black goods stores, and the supermarkets.
EPS Foam Hot Melting Styrofoam Densifier recycling machine photos:

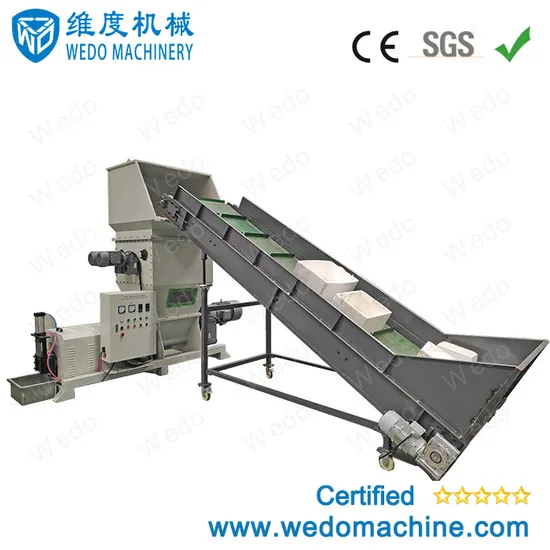

Over view of EPS Foam Hot Melting Styrofoam Densifier recycling machine Main part of EPS Foam Hot Melting Styrofoam Densifier recycling machineside of EPS Foam Hot Melting Styrofoam Densifier recycling machineback of EPS Foam Hot Melting Styrofoam Densifier recycling machinescre of EPS Foam Hot Melting Styrofoam Densifier recycling machineafter melt EPS material from EPS Foam Hot Melting Styrofoam Densifier recycling machineThe mleted EPS from EPS Foam Hot Melting Styrofoam Densifier recycling machine
EPS Foam Hot Melting Styrofoam Densifier recycling machine description:
1.Twin shaft crushing blades. This machine adopts manual feeding, the material will be crushed by blades on the twin shaft, then through the screen conveyed into the barrel of the main machine.
2.The screw of the main machine can convey and heat the EPS material to melting state, then extruding them and hydraulic blade cut them to pieces for easy storage and transportation.
3.The shapes of the products can be designed according to customers' requirements.
EPS Foam Hot Melting Styrofoam Densifier recycling machine principle:
The twin shaft are two parallel shafts with blades, they running in different rotation direction. Each shaft has blades and driven by the gear box, to crushing the EPS material then the material will get throught the sreen into the barrel. The material will be processed by the high speed rotary screw to the heating barrel. Then EPS material will be melt under high temperature and can extruding to expected shapes.
EPS Foam Hot Melting Styrofoam Densifier recycling machine for the environment:
1.EPS is uniquely recyclable - all manufacturing waste can be fully reprocessed as can the products at end-of-life.
2.EPS is comprised of 98% air and therefore only 2% polystyrene making it a highly efficient use of raw material.
3.Although EPS is derived from a non-renewable resouce - oil, it represents less than 0.1% of crude oil usage.
4.As EPS is highly energy efficient - the energy saved over the lifetime of an insulation panel.
Data of EPS Foam Hot Melting Styrofoam Densifier recycling machine

model	H-200
Screw diameter	Φ250 mm
Pitch length	180 mm
Screw speed	160 r/min
Yield	200Kg/h
Filter aperture	50 mm
Extruder center height	366 mm
main motor power	22KW
Heating rate	The total area of the three districts is 14KW.
Crusher motor power	2.2kwx4
Number of crusher blades	Four axes 11 +10 +11 +10
Crusher speed	100r/m
Machine size	3400×1880×2550
Machine weight	1800 Kg

Wedo Produce steps:Wedo have a fully step for the EPS Foam Hot Melting Styrofoam Densifier recycling machine producing before packing and shipping, this ensure the plastic recycling machine will delivery in good quality, and custerm will get good machine.Wedo service:We do best service for you in EPS Foam Hot Melting Styrofoam Densifier recycling machine Any further about the EPS Foam Hot Melting Styrofoam Densifier recycling machine, please contact us timely we will give your professional fully support.
