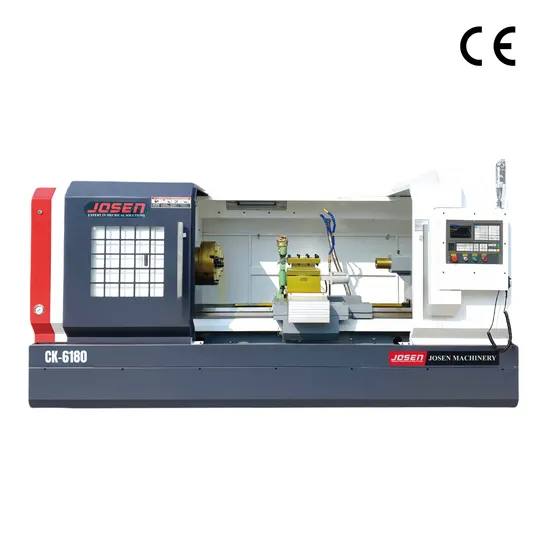

Precision Machining Horizontal Lathe Heavy Duty Skew Gear CNC Horizontal Lathe Horizontal Lathe Cutting Lathe

Product Description

Product Description

1.The machine adopts an integral 35°bed structure, which has good rigidity and stability. 2.The two axis guide rail adopts imported overweight line rail sliders, and the optional servo turret, power turret, power head, and the spindle adopts an independent spindle unit, which has good rigidity, low noise, and high precision, and is suitable for secondary processing and molding of complex parts. 3.The machine adopts an integral high and low rail bed structure, which has good rigidity and stability. The two axis guide rail adopts imported overweigh troller line rail slider, which can be equipped with aY axis structure. 4.The 12/15 station power servo turret is used. The spindle adopts an independent spindle unit, which has good rigidity, low noise and high precision, and is suitable for secondary processing and molding of complex process parts. 5.The electric box structure adopts double-layer waterproof design, and water will not enter from the door seam Inside the electric box. 6.The protection circuit design is complete, and the electric box layout is safe, clear, and standardized, which fully conforms to the electrical safety specification. 7.In order to ensure the safety of operators, the whole series of machines are equipped with safety door locks. If the operation door is opened during operation, the machine will automatically stop and send an alarm. 8.Equipped with automatic oil injection machine, quantitative filling, no waste of oil. Do not waste resources, effectively ensure the spindle oil supply and lubrication, prolong the service life of the spindle. 9.Using foot pedal, let the operator in both operation NC lathe parts installation, adjust positioning, using the foot switch to complete the hydraulic casket, hydraulic tail seat, hydraulic center frame and functional components such as movement, can complete the installation, positioning and clamping of parts at the same time, greatly improving the production efficiency. 10.When the machine tool uses the water quality coolant, due to the different density, the liquid surface is often floating debris or oil quality, equipped with oil and water separator, enhance the vitality of coolant, prolong the service life of coolant, more energy saving.

Basic specifications:

SPECIFICATIONS	unit	CK-6163	CK-6180	CK-61100
Maximum turning diameter of the bed	mm	φ630	φ800	φ1000
Maximum turning diameter on the pallet	mm	φ330	φ450	φ630
Maximum processing length	mm	1000/1500/2000/3000	1000/1500/2000/3000	1500/2000/3000
Spindle drive form	/	Fourth gear	Fourth gear	Fourth gear
Spindle speed series	/	stepless speed change	stepless speed change	stepless speed change
Spindle speed	r/min	30-84/53-150/125-350/300-835	30-84/53-150/125-350/300-835	30-84/53-150/125-350/300-835
3μindle I lead fulml	/	C11	D11	D11
Spindle hole front taper	/	120 1:20	120 1:20	120 1:20
Spindle through hole diameter	mm	105	105	105
main motor power	kw	11	11	11
X/Z axis positioning accuracy	mm	0.025/0.03	0.025/0.03	0.025/0.03
X/Z axis repeat positioning accuracy	mm	0.01/0.015	0.01/0.015	0.01/0.015
Workpiece machine accuracy	/	IT6-IT7	IT6-IT7	IT6-IT7
Work surface roughness	/	Ra1.6	Ra1.6	Ra1.6
X fast moving speed	mm/min	4000	4000	4000
Z fast moving speed	mm/min	6000	6000	6000
Tailstock sleeve diameter	mm	100	100	100
Tail sleeve inner hole taper	/	MT6	MT6	MT6
Tailstock sleeve movement	mm	250	250	250
Tool holdor form	/	Electric Vertical 4-Station Tool Holder	Electric Vertical 4-Station Tool Holder	Motorized 4-station (Horizontal 6-station optional)
Ball screw diameter*pitch	mm	X:30*06 Z:50*10	X:30*06 Z:50*10	X:30*06 Z:50*10
Knife size	mm	32/32	32/32	40x40
Machine dimensions	mm	3400/3900/4400/5400*1820*1780	3500/4000/4500/5500*1900*1900	3600/4100/4600/5600*1950*2000
Machine weight	kg	3200/3600/4000/4500	4200/4500/5200/6200	4800/5600/6700
