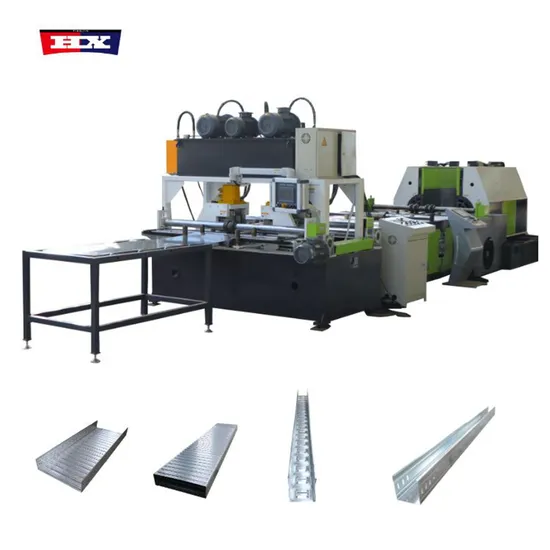

Full Automatic Galvanized Metal Steel Perforated Type Trench Cable Tray Roll Forming Machine Cable Tray Manufacturing Machine Cable Tray Making Machine

Product Description

We, Tianjin Haixing a professional cold roll forming machine manufacturer, as a professional supplier for roll forming machine have been focusing on this field for 28 years, support ODM/OEM, our equipment includes cable tray roll forming machine, roof roll forming machine, floor deck roll forming machine, automatic decoler, shutter door roll forming machine, light keel roll forming machine, purlin machine, and other related construction equipment. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, a two-year warranty, installation and training services, and local service in South America. Cooperating with 150+ countries & 5,000+ Partners, looking forward to more cooperation with new and old friends from all over the world. Product Description
Product Specification

full automatic trench cable tray roll forming machine cable tray manufacturing machine cable tray making machine
Formed Materia	Q235 cold rolled strip steel, galvanizedsheet	Thickness:0.5-2.5mm,Width:200-1250mm(customized)
Decoiler	Hydraulicdecoiler	Manual decoiler(will giveyou as free)
Main body	Roller station	26 rows(As your requirement)
	Diameter of shaft	80mm solid shaft
	Material ofrollers	45#steel,forging with chromium plate 0.05mm,
	Dimension(L*W*H)	20*2.5*2m(customize)
	Weight	20 Ton
Cutter	Automatic	H13 quenched treatment 58ºC-62ºC
	Cutting tolerance	±1mm
Power	Motor Power	50KW
	Motor explosion-proof leve	ExdlICT4
	Motor protection level	IP55
Voltage	380V 50Hz 3Phase	As your requirement
chain	1 inch	As your requirement
Control system	Electric Box	WeiChuang brand (As your requirement)
	Language	English,Spanish,etc. (Support multiple languages)
	PLC	Automatic production of the whole machine.Can set batch, length,quantity,etc.
Forming Speed	6-10m/min	Includingpunchedconnection holes(determined by product length and number of punched holes,not including punched tray holes)

Product Parameters
Hydraulic decoiler
1.Capacity:10T2.Coil diameter: 460-520mm3.Coil outer diameter:1500mm4.Coil width: 200-1250mm(as customers' request)
Main rollers
1.Roller stations: 26 row wheels, (according to different design, depend on the profile drawing) 2.Roller materila: 45# steel with quenched treatment and hard chroming
3.Shaft diameter: 80mm, solid.
4.Shaft material: 45# steel with tempering treatment.
5.Wheel speed: 6-10M/min
Punching machine part
1. Hydraulic punching 2. Two-station punching machine
3. Punch seven-character buttonholes
4. Marking thickness 0.5-1.5 (optional)
5. Hydraulic pump station: 7.5 kw
high speed platform
1. Six-meter roller feeding table 2. (2 pieces) Main motor power (1.5x2KW) Electric opening and closing, electric adjustable guide wheel, suitable for different material widths Plate.

Computer Control Cabinet
Function and advantages: 1.PLC control, LCD touch screen, human-machine interface. Realize the interaction between people and PLC. Programmable control and monitoring of the control process.
2.Switching languages is easy to operate, the language can be English, Spanish or as required.
3.The touch screen interface is designed to be intuitive.
Hydraulic station power
1.Multiple groups of solenoid valves Solenoid relief valve cooling system Motor power (7.5X2)KW 2.Motor with pump capacity of tank: 450L
3.Advantages:The free included fan helps reduce oil temperature, extend service life, improve system reliability, and prevent overheating protection, reduce energy consumption and reduce maintenance costs.
Discharge table
1. 3 meter platform, 1 support roller type
Packaging & Shipping
1.Nude,with waterproof cloth and stow-wood. lmported computer control system packed with waterproof cloth and card board. 2.This producing line is maintained free of charge for 18 months.When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we willsend the professional technician to debug buyers should take all the fees for technician stravelling abroad.
3.All the parts in the roll forming machine is free to maintain long life. If in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost, if more than 18 month, we also free to maintain the broken parts but for send the newparts, the buyer need bear the express cost.
4.When ship full automatic cable tray roll forming machine cable tray manufacturing machine cable tray making machine, we will also send one set CD and specification (Chi-nese and English) to you with the machine, they can teach you how to operater the machines.
Application
Machine manufacturing process
Company Profile
FAQ
Q: Are you a manufacturer? A: Yes, we have been a manufacturer of cold roll-forming machines for over 28 years.Q: if Can you accept OEM? Design and manufacture according to our photo.A: Yes, we can accept OEM, we own an expert engineering team, and use famous brand components according to your demands.Q: What's the warranty for our machine? A: we provide a 2years guarantee and provide lifetime technical support. Q: How many workers are needed for the machine operation? A: One worker is enough, the machine uses an automatic PLC control system.Q. Can you be responsible for transport?Yes, we own an expert export team, and we can arrange for you to your destination port or address. Q: What service can you provide before ordering?A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameters,delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.Q: What is the after-sale service? A: We will supply lifetime technical support and quick-wear parts within 2 years.Q: What's the delivery time?A: 25 days after deposit receipt your paymentQ: Installation and traininga.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use themachine, and also train your workers/technicians face to face.b.Without visiting, we will send you a user manual and video to teach you to install and operate.c.If the buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the Transportation and accommodation expenses.Q: what can you buy from us?Cable Tray Roll Forming Machine, Roof & Wall Roll Forming Machine, Floor Deck Roll Forming Machine, Light Steel Keel Roll Forming Machine, CZ Purlin Roll Forming Machine, Leveling Slitting Roll Forming Machine, and other related machines.
