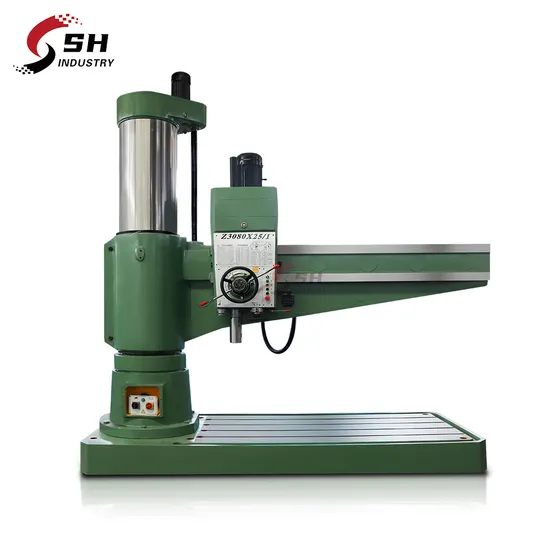

Factory Price Hydraulic Radial Drilling Machine Z3080 High Accuracy Radial Drilling Machine for Metal

Product Description

Metal Hydraulic Arm Radial Drilling Machine Price Z3050X16 Universal Radial Drilling Machine
Product Description
Product description:
hydraulic clamping Hydraulic transmission Hydraulic pre-selection Electrical machinery double insurance Product main technical specifications:

specifications	Units	Z3080*20A	Z3080*25A
Max. drilling diameter	mm	80	80
Distance from spindle nose to table surface	mm	350-1570	350-1570
Distance between spindle axis and column surface	mm	510-2000	480-2500
Spindle travel	mm	400	400
Spindle taper	MT	6	6
Spindle speeds range	(r.p.m)	16-1600	16-1600
Spindle speed step		16	16
Spindle feeding range	(r.p.m)	0.04-3.20	0.04-3.20
Spindle feeding step		16	16
Rocker rotary angle		+/-90°	+/-90°
Main motor power	kw	7.5	7.5
Movement motor power	kw	1.5	1.5
N/W	kg	7000	9500
Overall dimensions(L*W*H)	mm	2980*1250*3300	3500*1450*3300

Detailed Photos


Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
