Radial Drilling Machine Vertical Metal Universal Hydraulic Drill Press Z3080 Cheap Sale

Product Description

Product Description
Factory Direct Sale CE Universal Vertical Milling Radial for Metal

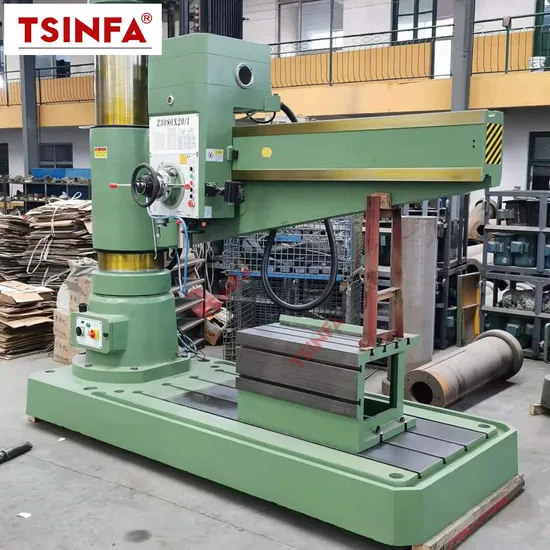

The Hydraulic radial drilling machine Z3080 is our most popular radial drilling machines ,the Hydraulic radial drilling machine
Z3080 has been exported to all over the world ,and it is satisfied by all of the customers .
Product Parameters

pecification	Unit	Z3050×16	Z3063×20	Z3080×20	Z3080×25
Max. drilling diameter	mm	Cast iron 50 Steels 45	Cast iron 60 Steels 55	Cast iron 80 Steels 75	Cast iron 80 Steels 75
Locking mode		hydraulic	hydraulic	hydraulic	hydraulic
Distance between spindle nose and working surface of base plate	mm	700-1220	850-1580	850-1580	850-1580
Distance between spindle axis and column	mm	400-1600	500-2000	500-2000	500-2500
Spindle travel	mm	315	400	400	400
Spindle taper	morse	MT.5	MT.6	MT.6	MT.6
Range of spindle speeds	r.p.m	25-2000	16-1250	16-1250	16-1250
Number of spindle speeds		16	16	16	16
Steps of spindle feeds		16	16	16	16
Radial rotation Angle	°	360°	360°	360°	360°
Main motor	KW	4	5.5	7.5	7.5
Lifting motor power	KW	1.5	1.5	1.5	1.5
N.W /G.W	KG	2500/2800	5500/6000	5600/6100	7500/7900
Overall dimensions	mm	2500*1060*2800	3000*1250*3300	2980*1250*3300	3700*1450*3300
Packing Size	mm	2600*1100*2550	3250*1100*2250 3100*1280*1500	3250*1100*2250 3100*1280*1500	3750*1500*1850 3830*1150*2250

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.

Certifications

Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.
