TMAXCN Brand Stirring Ball Mill/Stirred Media Mills

Product Description

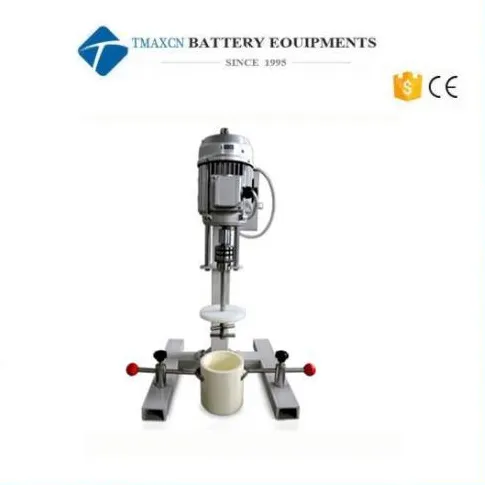

Stirring Ball Mill/Stirred Media Mills

Principle
The stirring ball mill is mainly composed of a stationary grinding cylinder filled with small-diameter grinding medium, agitating device and other auxiliary devices (such as circulation device, cooling device, timing, speed control, etc.), with high grinding efficiency and small grinding particle size, which can well meet the requirements of various process parameters and simulate various indicators in production. At the same time, due to its advantages of small batch, low power consumption and low price, it is a science School, research unit and company are optional equipment for grinding technology, new materials and coating research. It is widely used in the production of zirconium silicate, zirconium, alumina, ceramics, chemical industry, electronic materials, magnetic materials, paper-making, coatings, non-metallic minerals, new materials, paints, graphite, calcium carbonate, pharmaceutical and other ultra-fine powders.
Features
1.High energy utilization, and can get a very high power density, so saving energy;
2.Product size is easy to be adjusted,ensure the final degree of fineness by adjusting the residence time of material in the barrel;
3.Small vibration, low noise;
4.Simple structure, easy to operate;
5.It can achieve various of process parameters requirement, product continuously or intermittently according to the need;
6. It can be well controlled grinding temperature because the milling cylinder has a jacket;
7. Can produce devices with a variety of special features according to the need, such as: the timer, speed control mode, circulation method, temperature regulator etc;
8. Can select grinding cylinder with different materials (stainless steel, corundum ceramics, polyurethanes, zirconium, etc.) and stirring device.
JM-0.5-A means 0.5L volume. A means frequency converter.
JM-200-B means 200L volume. B means no frequency converter.

Specifications

Models	Volume(L)	Input Amount(L)	Power(KW)	Barrel Material	Input Granularity (mm)	Output Size (um)	Speed Adjustment Mode
JM-1L	1	0.35	0.37	Stainless steel, nylon, corundum, pu, irconia, agate, PTFE	≤5	≤1	Frequency Control
JM-2L	2	0.7	0.37
JM-3L	3	1.05	0.37
JM-5L	5	1.75	0.75				Frequency control or stable rotate speed
JM-10L	10	3.5	1.5		≤10
JM-15L	15	5.25	2.2
JM-20L	20	7.0	2.2
JM-30L	30	10.5	3	Carbon steel, stainless steel, lined with nylon pu, PTFE, corundum
JM-50L	50	17.5	4
JM-100L	100	35	7.5		≤20
JM-200L	200	70	11
JM-500L	500	175	22
JM-1000L	1000	350	34
JM-1500L	1500	525	42
