Xe215c 21ton Best Quality High Performance Crawler Excavators
Basic Info.
Model NO.
XE215C
Type
Crawler Excavator
Usage
Special Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Weight
21500kg
Engine Model
Imported
Rated Power/Speed
128.5/2100kw/Rpm
Displacement
6.949L
Bucket Digging Force
149kn
Arm Digging Force
111kn
Travel Speed (H/L)
5.5/3.3km/H
Transport Package
Nude Packing
Specification
21 ton
Trademark
MAXIZM
Origin
China
HS Code
8429521200
Production Capacity
1000/Year
Product Description
XE215C 21ton Best Quality High Performance Crawler ExcavatorsWelcome to MAXIZM Construction Machinery Co.,Ltd!
Home of value that works!
We provide you with the best quality of BULLDOZER, EXCAVATOR,COMPACTOR, FORKLIFT, MOTOR GRADER,WHEEL ROADER,ETC.
Product Description

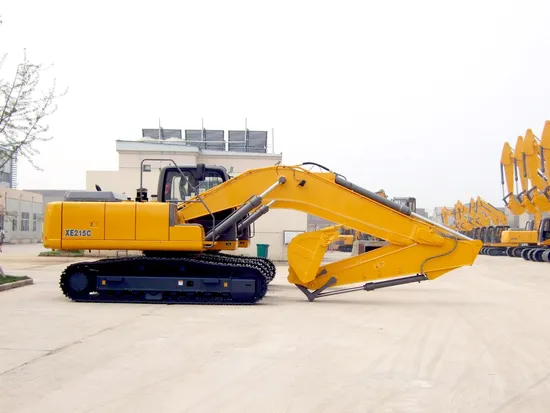

XE215C excavator
XE215C is the most popular model of China 21t excavator,Now XE215C is upgrading to new model XE215D equipped with EURO III engine with electric injector, new model will have high performance.
1. The maximum traveling speed is up to5.4km/hto realize faster site transfer speed.
2. The highest breakout force on the loading end is leading the industry by15%~20%compared with like
models.
3. Low-speed and high-torque custom, fully electronically controlled engine in accordance with excavator working
conditions, torque reserve increased by15%.
4. the industry's first large-displacement high-efficiency pump, the displacement increased by 13.6%, the power increased by4.5%.
5. High-efficiency large displacement motor, the rotary motor increases the
displacement and increases the rotary torque of the whole machine by12.1%;
6. Fully-controlled high-pressure common rail engine technology, fuel utilization increased by5%.
Product Parameters
| Operation Weight | 6010 kg | Parameter value | | |
| Bucket Capacity | 0.23 m ³ | 1795 | | |
| Main performance | Travel speed(H/L) | 4.2/2.2 km/h | 0.04 | |
| Rotating speed | 10 r/min | D782-E3B-CBH-1 | | |
| Gradeability | 35° | 3 | | |
| Ground pressure | 32.5 kPa | 9.8/2300 | | |
| Bucket digging force | 48.3 kN | 44.5/1800 | | |
| Arm digging force | 32.5 kN | 0.778 | | |
| Maximum traction | 50.5 kN | 4.3/2.2 | | |
| Hydraulic system | Rated flow of main pump | 151.2 L/min | 30° | |
| Pressure of prime valve | 24.5 Mpa | 22 | | |
| Pressure of travel system | 22 Mpa | 22 | | |
| Pressure of swing system | 21 Mpa | 11 | | |
| Pressure of pilot system | 3.5 Mpa | 3.9 | | |
| Oil capacity | Fuel tank capacity | 110 L | 18 | |
| Hydraulic tank capacity | 85 L | 17 | | |
| Engine oil capacity | 12 L | 3.8 | | |
| Appearance size | Overall dimensions(L*W*H) | 5860×1920×2585 mm | 3560 | |
| Width of platform | 1780mm | 1240 | | |
| Width of crawler | 400 mm | 2348 | | |
| Clearance under counterweight | 700 mm | 990 | | |
| Min. ground clearance | 385 mm | 990/1240 | | |
| Min. tail swing radius | 2890 mm | 230 | | |
| Working scope | Min. tail swing radius | mm | 620 | |
| Max. digging height | mm | 3475 | | |
| Max. dumping height | mm | 2415 | | |
| Max. digging depth | mm | 2290 | | |
| Standard | Length of boom | mm | 1690 | |
| Length of arm | mm | 1100 | | |
| Bucket capacity | m³ | 0.04 | ||
