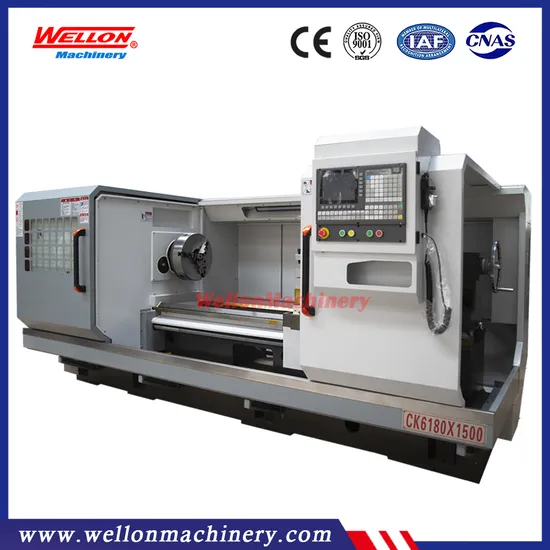

High Quality Horizontal CNC Lathe Center Machine Ck6180

Product Description

Product Description

Product Parameters

CK Series are economical and practical CNC lathes.With optimized structures, unfailing performance, high quality,
simple programming, and easy handling, they are suitable for turning of complicated shaft, sleeve, and disk type
work-pieces such as turning of internal and external cylindrical,
conical, arc surfaces and various threads, and even drilling, boring and reaming holes.
And they are especially fit for turning of diversified work-pieces on small and medium batches.
They are of high versatility high efficiency, low inferiority and good comfort ability.
So to be widely used in various trades, such as automobile industry.
Petroleum industry, and so on.
Technical parameters:

Model	Unit	CK6180
Max swing over bed	mm	800
Max swing over slide	mm	550
Distance between centers	mm	1500
Spindle bore	mm	82
Spindle taper	mm	MT6
Spindle speed	r/min	90-1200
3 jaw chuck diameter	mm	350 Manual type
X axis rapid moving speed	m/min	4
Z axis rapid moving speed	m/min	4
X axis travel	mm	420
Z axis travel	mm	900
Tail stock quill diameter	mm	100
Tail stock quill travel	mm	150
Quill taper		MT5
Guide way width	mm	400
Tool post shrank size	mm	25X25
Re-positioning accuracy	mm	0.005
Main motor power	kw	11
Coolant pump motor power	W	125
Machine width x Height x Length	mm	1710x1740x2800
Machine weight	kg	3200
Max Loading weight	kg	800
