Insulating Materials Hexin Plywood Case Die Cutting Price Automatic Die-Cutting Machine

Product Description

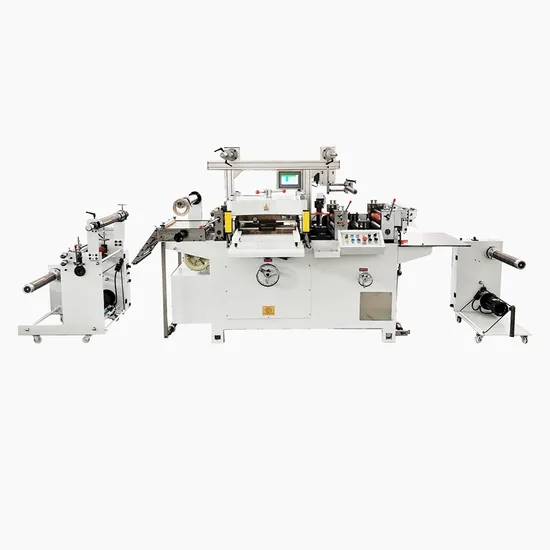

Printed Label Aluminum Foil Plastic Die Cutting Machine
Automatic foam Paper vinyl Sticker Rubber Laminate Flat label Die Cutting Machine price This machine integrates multi-layer lamination and partial lamination, and the discharge-film-die cutting-waste discharge-slicing-rewinding is controlled by a computer at one time.Features: Multi-function in ONE machine: Laminating / partial laminating+unwinding+laminating+die cutting +discharging sheet cutting/rewinding Photo Cell if necessary .Sucking device during material feeding process Waste discharge shaft. Sheet cutting station
Rewinding station .Safety curtain device Optional function: Conveyor belt device for full-cut use Application: Glue-based products: 3C parts, foot pad, silicone, velcro backing, conductive tape, double-side tape,3M tape and all kinds of glue-based products. Dustproof materials: cosmetic cotton, camera cotton, high density sponge, filtering sponge, dustproof filter, non-woven fabric,etc. Shockproof materials: EVA tape, rubber cushion, PORON cushion,3M, flame-resistant EVA, EPDM,etc. Insulation/shielding materials : EMI Shielding material, fireproof paper, aluminum foil, copper foil, PVC,PET, k paper, sponge sheath, pearl cotton sheath and so on. Heat-conductive/ heat-proof materials : silicon sheet, transparent mica, fiber cloth, heat insulation cotton and so on. Other materials which are suitable for die cutting The working principle of the flat die-cutting machine is: the product model that has been opened according to the product drawing in advance is stamped into the specified shape by means of upper and lower stamping. The entire operation process of the die-cutting machine is driven by the servo motor to pull the material to drive the automatic feeder to feed. , Passing through the feed can complete some actions of the film, passing through the die-cutting machine of the die-cutting machine, draining the waste of the frame, and cutting into pieces to complete some of the entire process. Compared with other die-cutting equipment, the flat die-cutting machine has the advantages of convenient operation, convenient maintenance,easy replacement of die-cutting indentation plates, suitable for materials of different weights, and precise die-cutting, so it has been widely usedDie-cutting machines are also called beer machines and CNC punching machines. They are mainly used for die-cutting (full-break, half-break) and pressing of corresponding non-metallic materials, stickers, EVA,double-sided tape, electronics, mobile phone pads, etc. Marking and bronzing operations, laminating, automatic waste discharge,the die-cutting machine uses steel knives, metal molds, steel wires (or stencils carved from steel plates), and applies certain pressure through the embossing plate to cut the printed products or cardboard into Certain shape. It is an important equipment for post-press packaging processing and shaping. The working principle of die-cutting machine is to use steel knives, hardware molds, steel wires (or stencils carved from steel plates) to apply certain pressure through the embossing plate to roll and cut printed products or cardboard into certain shapes.If the entire printed product is press-cut into a single graphic product, it is called die-cutting; if the steel wire is used to make traces on the printed product or leave a bent groove, it is called indentation; Heated to a certain temperature, hot stamping of patterns or fonts with a three-dimensional effect on the surface of the printed product is called hot stamping; if one substrate is used to overlay another substrate, it is called laminating; except for the genuine product, the rest is called To discharge waste; the above can be collectively referred to as die cutting technology. Die Cutting Machine , also known as cutting machine, CNC punching machine, is mainly used for die-cutting (completely broken) of corresponding non-metallic materials, stickers, EVA, double-sided tape, electronics, mobile phone pads, etc. , Semi-broken),indentation and bronzing operations, laminating, automatic waste removal, die-cutting machine uses steel knives, hardware molds,steel wire (or a template carved from steel plates), and applies a certain pressure through the imprinting plate to print The product or cardboard is rolled and cut into a certain shape. It is an important equipment for post-press packaging processing and formingThe die-cutting process is the most commonly used process for packaging printed matter. It uses a die-cutting knife to combine the patterns required by the product design to form a die-cutting plate. Under pressure, the printed matter or other ring-packed blanks are rolled into the desired shape or The forming process of the cut marks. The creasing process is to use a crimping knife or a crimping die to make a line mark on the sheet through the action of pressure, or use a rolling wheel to bend and shape the board at a predetermined position. Usually, the die-cutting and creasing process is a process of combining the die-cutting knife and the crimping knife in the same template, and simultaneously performing die-cutting and creasing processing on the die-cutting machine, which is referred to as die-cutting.Process introduction The main process of die-cutting and indentation is:uploading→adjusting pressure→determining the rules→adhesive base material accessories→test pressure die-cutting→formal die-cutting and indentation→removing waste→finished product winding or cutting into pieces→points package
The working principle of the automatic flat-bed die-cutting machine is that the paper feeder feeds the paper into the front gauge and the side position through the paper feeding part, and then the paper is sent to the die-cutting mechanism by the tooth row for secondary positioning and die-cutting. After cutting, it is sent to the waste removal mechanism by the tooth row, and then enters the paper delivery section after the waste removal, thereby completing the die-cutting operation.Touch screen technology,frequency conversion speed regulation technology and programmable controller technology are widely used in the equipment, and the stability and reliability of the equipment have been greatly improved.Data communication between multiple programmable controllers of the die-cutting machine; LCD intelligent operation display screen,human-machine dialogue; use optical fiber sensor to detect the cursor, precise positioning; digital servo; holographic aluminum foil surface tension control machine parameters

Model	320B	420B
Cutting speed	20-200 (t/m)	20-200 (t/m)
Max unwinding diameter	450mm	450mm
Max web width	320mm	420mm
Max mould cutting area	300*300mm	420x420mm
Orientation accuracy	±0.10mm	±0.10mm
Motor power	3kw	4kw
Power voltage	220v±10%	380v±10%
Machine weight	2000kg	2800kg
Measurement	2500x900x1400mm	2600x1050x1800mm

Specification 1. The machine enjoys electrical appliance, multi-layer sticking, partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling 2. All of them are completed by the computer control by one turn. Advantage 1.wherever you are our professional engineers will fight to you to solve the proble 2.Quality is priority. HEXIN always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE & ISO Certification .We have been procesing and manufacturing spare parts for APPLE and TOYOTA . 3..More than 40 countries are using our machine . Samples Show Company Information certifications CE Certification for leather belt cutting machine Our machines meet CE requirement . Conform to the safety, health, environmental protection and consumer protection, and a series of European directives to express requirements . For our products ,please rested assured . Letter of Patent Utility Model Patent Certificate .Thirty years of production experience ,we spent a great deal of time to research new products ,won a number of utility model patent certificates .Some of our product are world first . Our machines are widely applied in laminating, slitting and die cutting for protective materials, sticky materials, insulating materials, conductive materials, electronic materials, printing materials and so on, and sizing cutting for strings, strips, sheets, ropes, lines, belts, rolls, plates ,tubes, fibre, rubber, foam, Mylar, LCD, films, tapes, PET, PVC, PC, metal foils, etc. Our machines can process all kinds of sheet materials, roll materials and so on. we will provide all our customers with reliable products, perfect service in order to create a brilliant future together. Any help , please feel free to contact us.
