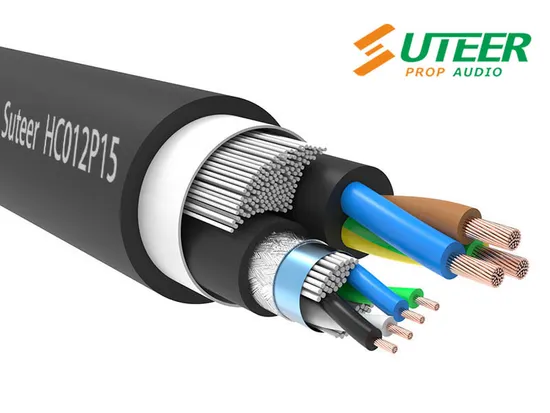

Combination Cable Power 3G1.5 + 4-Core 110 Ohm DMX Composite Cable
Basic Info.
Model NO.
HC012P15
Type
Twisted Pair
Species
XLR & Power
Connector
XLR
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, ISO9001, Reach
Brand
Suteer
Transport Package
Carton
Specification
Φ 14
Trademark
Neutral
Origin
China
HS Code
8544421100
Production Capacity
10000000m/Month
Product Description
Application: This Hybrid cable with 1 x 4-core DMX cable and 1 x power cable. Power cores with a separatelly jacket. Operational ranges are e.g. DMX-applications. DMX pair double screened and acc. to DMX and AES/EBU specifications.Suitable as patch cable as well as for the fixed installation. All cross sections for AES/EBU, 0,22qmm and 0,34qmm additional for DMX applications. Highest flexibility despite double screen.Features: DMX cable: 4 x0.22 mm² (24 AWG), 2-pair Stranded Oxygen-free copper (OFC) H05VV-F 3G1.5 power cable Cotton filler Textile separator Ultra flexible PVC outer jacket, black 5 mm (Ø) outer diameter Specifications:
| Cable model | HC01P075 | HC01P15 | HC012P15 |
| Hybrid Cable | |||
| Twisting | 2-core DMX cable + 1 power cable + tracers | 2-core DMX cable + 1 power cable + tracers | 4-core DMX cable + 1 power cable + tracers |
| Taping | Textile fleece | Textile fleece | Textile fleece |
| Outer jacket | PVC,black,Ø15.5 | PVC,black,Ø16.5 | PVC,black,Ø18.5 |
| DMX Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 28x 0.1 mm | 28x 0.1 mm | 28x 0.1 mm |
| Conductor section | 0.23 mm2 | 0.23 mm2 | 0.23 mm2 |
| American wire gauge | 24 AWG | 24 AWG | 24 AWG |
| Insulation material | PE | PE | PE |
| Number of cores | 2 | 2 | 4 |
| Insulation colours | Red / Blue | Red / Blue | yellow / Blue / Black / white |
| Conductor twisting | Yes | Yes | Yes |
| Shielding 1 | AL/PET-foil | AL/PET-foil | AL/PET-foil |
| Shielding 2 | 16 x 6 x 0.1 mm TC - Braided | 16 x 6 x 0.1 mm TC - Braided | 16 x 8 x 0.1 mm TC - Braided |
| Filling | Cotton yarn | Cotton yarn | Cotton yarn |
| Separator | None | None | None |
| Outer jacket | Flexible PVC | Flexible PVC | Flexible PVC |
| Outer jacket color | Black matt | Black matt | Black matt |
| Outer jacket dimension | Ø5.0 mm | Ø5.0 mm | Ø7.0 mm |
| Conductor resistance-100M | ≤ 7.9 ohm | ≤ 7.9 ohm | ≤ 7.9 ohm |
| Capacity (C/C) @ 1kHz | 47 pF/m | 47 pF/m | 47 pF/m |
| Characteristic impedance | 110 ohm | 110 ohm | 110 ohm |
| Power Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 24 x 0.2mm | 48 x 0.2mm | 48 x 0.2mm |
| Conductor section | 0.75 mm2 | 1.5 mm2 | 1.5 mm2 |
| Insulation material | PVC | PVC | PVC |
| Number of cores | 3 | 3 | 3 |
| Jacket | PVC,Black,Ø6.8 | PVC,Black,Ø8 | PVC,Black, Ø8 |
| Mechanical characteristics | |||
| Temperature range | fixed installation | -25 °C to +80 °C | |
| flexible installation | -20 °C to +70 °C | ||
| Bending radius | fixed installation | 10 x outer diameter | |
| flexible installation | 12 x outer diameter | ||
