Heavy Duty Ck6140 Metal Bench Lathe Machine Fanuc CNC Lathe

Product Description

Product Description
CK6140 CNC Flat Bed Metal Turning Center
This machine is mainly used to process various shaft and disc parts. It can turn various threads, arcs, cones, and internal and external surfaces of rotating bodies and meet the speed requirements of high-speed chip cutting of ferrous and non-ferrous metals.
It is suitable for efficient, large-scale, and high-precision processing of rotating parts in the automotive, motorcycle, electronics, aerospace, and other industries. The processing accuracy can reach level 7.

Product Parameters

Menu	Unit	Specification
Swing Over Cross Slide	mm	400
Max. turning diameter on skateboard	mm	200
Max truning length	mm	750 / 1000 / 1500 / 2000
Maximum cutting diameter	mm	400
Type and code of spindle end		A2-6
Main shaft hole diameter	mm	52
range of spindle speed	r/min	50-2200
Main motor power	kW	5.5
Chuck diameter	Mm	200mm manual type
X axis speed	m/min	4
Z axis speed	m/min	6
X axis stroke	mm	220
Z axis stroke	mm	1500
The tailstock diameter	mm	60
The tailstock travel	mm	100
Taper of spindle taper hole of tailstock		MT4
Standard tool rest form		Electric four-position tool
Tool rest transposition and repeated positioning accuracy	--	±3.2″
Knife party size	mm	20*20
Cooling Motor	w	90
Machine weight	kg	1800
Machine size	mm	2450*1380*1640

Machine Precision

Items		workshop standard
Machining accuracy		IT6-IT7
Roundness of machining workpiece		0.005mm
Cylindricity of machined workpiece		0.01/300mm
Flatness of machining workpiece		0.025/300mm
Surface roughness of machined workpiece		Ra0.2~1.6μm
positionaI accuracy	X axis spindle	0.015
	Z axis spindle	0.015
Repositioning resolution precision	X axis spindle	0.01
	Z axis spindle	0.01

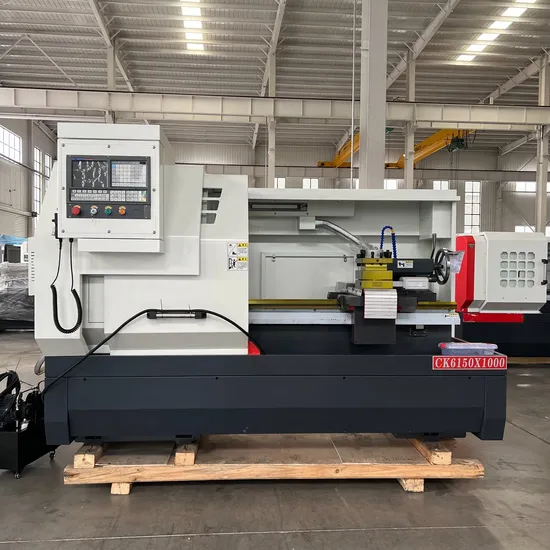

Detailed Photos
Application

Flat bed CNC lathes are equipped with multi-station turrets or power turrets and have a wide range of processing capabilities. They can process straight cylinders, oblique cylinders, arcs, various threads, grooves, worms, and other complex workpieces, and they can also groove, drill, ream, bore, and bore various rotary surfaces. This versatility makes them perform well in the mass production of complex parts.
Packaging & Shipping
The lathe machine will be packed with a metal base and plywood case, suitable for international transportation, such as by sea, air, etc.
Delivery time:7-15 days, fast to deliver, sometimes also have stock at hand!
Company Profile
With more than 20 years of experience in exporting machines
After service is very finished fully
Best price for customers from all over the world
Technical engineers are very professional
After Sales Service
1. The Operation Manual will be sent with the machine.
2. The spare parts will be provided freely during the warranty period.
3. The 24-hour online Service Team will help you solve the problems that you meet!
4. we also provide the after-service with video calls, videos, phone calls, online meetings, etc., to ensure
you can use the machine better.
