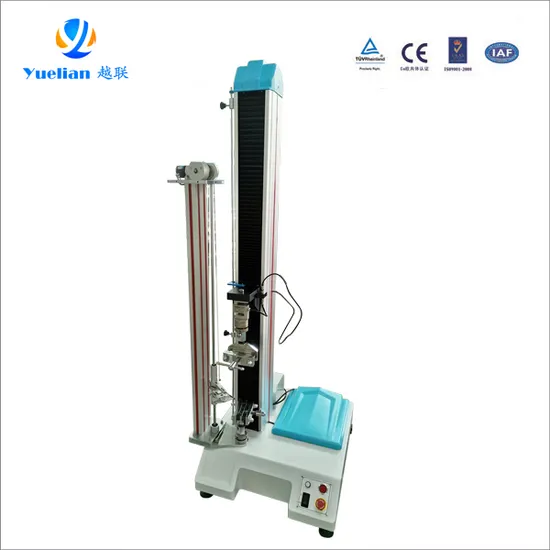

YL-S72 Rubber Tensile Testing Machine is specially designed to test the strength of various materials, finished products and semi-finished products. It selects various fixtures and tools and is suitable for measuring the mechanical properties and related physical parameters of various materials under tension, compression, bending, shearing, tearing, peeling, puncture, and other states. It can perform tensile, compression, three-point bending, four-point bending, shearing, tearing, peeling, finished shoe puncture, carton holding pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests.


Features
Powerful auxiliary tools for data analysis statistics and curve graph analysis, with functions such as zoom in, zoom out, pan, cross cursor, and point selection. Multiple historical test data can be imported into the graph and displayed at the same time for comparative analysis. Up to 7 interval settings, 40 manual point picking, 120 automatic point picking functions. It has various statistical functions such as maximum value, minimum value, average value, high and low average value, median, standard deviation, overall standard deviation, and CPK value.

Product Parameters

Model	YL-S70	YL-S71	YL-S72	YL-S73
Capacity selection	10N,20N,50N,100N,200N,500N,1KN,2KN,5KN(Optional dual-capacity configuration with quick replacement requirements)
Control method	Full computer control, powerful software
Unit of strength	N,kN,gf,kgf,lbf,kP,tf(SI),tf(long), etc.
Length unit	mm,cm,Inch,m,km,um, etc.
Stress unit	Pa,Kpa,Mpa,Gpa,KN/m2,N/m2 etc.
Strength Resolution	1/500,000
Precision	Better than level 0.5
Stroke resolution	1/500,000mm
Acquisition rate	50 times/S
Effective stroke	450mm	700mm	1000mm	1300mm
Speed range	0.01~500mm/min(customizable)
Test space	Ø140mm
Stop mode	Overload shutdown, emergency stop button, automatic shutdown of specimen damage, automatic shutdown of upper and lower limit settings
Machine power	Servo motor drive
Machine size (W×D×H)	520×590×1061mm	520×590×1325mm	520×590×1530mm	520×590×1880mm
Machine net weight	45KG	50KG	55KG	70KG
Power	400W
Power supply	220V 50~60HZ
Machine equipment	1 USB\232 cable, 1 software
Optional accessories	Two-point extensometer, fixture, computer
