Yg6 C122 Insert Tungsten Cemented Carbide Brazed Tips

Product Description

Application of Tungsten carbide tips/carbide saw tips/circular saw tips
Tungsten carbide saw tip is used as the tips for the TCT saw blade for cutting all kinds of original wood, hard wood, HDF, MDF, plywood, particle board, laminated board, composite material, grass, aluminum and metals. It can give much more excellent performance than HSS .

Product Description

PRODUCT NAME				Carbide saw tips used for cutting HDF
MATERIAL				Co+WC 100%Virgin Raw Materials
COLOR				Nickel white/Black/Gray
STANDARD				DIN GB ISO JIS BA ANSI
USED				Brazed on the wood-working saw blade for cutting HDF

About Tungsten Carbide
1.Using over high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2.Taking isostatic pressing machine, our drill button has a uniform density and do not break easily.
3.Sintered by HIP sintering fuenance, the abrasive resistancing of carbide button can be increased by 24%.
4.Ground by centerless grinder, it has precis measurement up to 0.01mm.

Emented carbide saw tips performance and its use recommendation
1.cemented carbide cutting saw blade used for harcwocd,iecycled wood and aluminum alloy.
2.cemented carbide cutting saws for plywood,density plates and sandwich plates.
3.carbide cutting saw suitable for steel.

Grade

Physical and mechanical properties

ISO Code

Applications recommended

Proposal for welding

Density g/cnV

Hardness HRA(HV

TRS Mpa

YG6

14.6-15.0

≥90.0

≥1800

K20

For the cutting of ordinary wood

use resistance welding the remperature should be not too high

VG8

14.6-14.9

≥89.5

≥1900

K30

For the cutting of ordinary wood,also for aluminum

use resistance welding the remperature should be not too high

JX20

14.4-14.7

≥90.0

≥2000

K20

For the cutting of ordinary wood

use resistance welding the remperature should be not too high

JX25

14.3-14.6

≥89.5

≥2100

K30

For the cutting of ordinary wood,also for aluminum

use resistance welding the remperature should be not too high

JX5

14.6-15.0

≥90.5

≥1900

K10

Applies to the cutting of hard wood,recycling wood and aluminum

use resistance welding the remperature should be not too high

JX9

14.5-14.9

≥90.5

≥2000

K10

Applies to the cutting of aluminumopperand lesd.non-ferrous

recommend the high-frequency welding

YG6X

14.7-15.0

≥92

≥1800

K10

Applies to the cutting of the timber

recommend the high-frequency welding

JX05

14.8-15.1

≥93.3

&2500

K05

Applies to the cutting of hard Wood, also can be used for The cutting of soft metal

recommend the high-frequency welding

JX15

14.6-15.0

≥92.5

≥2400

K05

Applies to the cutting of mardwood and aluminum

recommend the high-frequency welding

JX35

14.9-15.2

≥93.5

≥2000

K01

, Apply to the cutting of plywood, mdf board and sandwich board

recommend the high-frequency welding

JX40

12.8-13.2

≥90.5

≥2000

P40

Apply to the cutting of steel

recommend the high-frequency welding

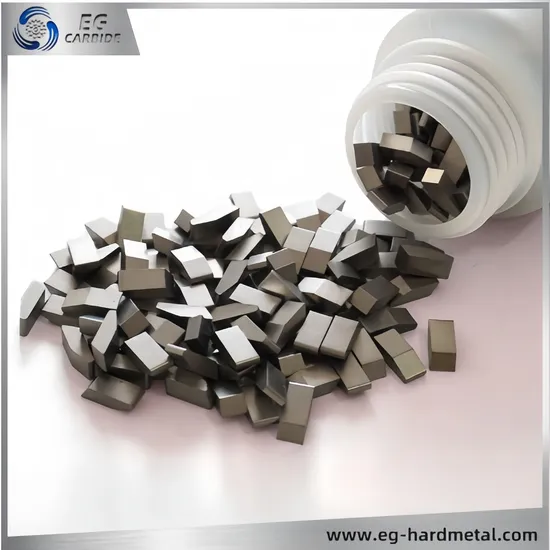

Detailed Photos
Product Parameters

Saw tips-European styleSaw tips-European style

LXWXT(mm)																a°	r°	B
L	W													T°
7.5	2.52.83.03.23.43.63.84.04.24.44.55.26.0													2.5		28	70	5
7.5	2.83.23.53.74.55.05.66.06.5													2.4		30	50	0
8.0	2.42.82.93.03.13.23.33.13.53.63.83.94.0													2.3		28	70	5
8.0	4.34.44.54.85.05.25.56.06.88.0													2.5		28	70	5
8.0	2.83.03.33.53.84.14.24.65.05.25.510.0													3		25	45	0
8.5	2.83.03.33.43.53.63.84.14.24.34.65.06.0													2.5		28	70	5
9.0	3.64.34.55.25.5													2.7		28	45	5
9.0	3.13.33.53.63.84.34.54.75.25.52.86.0													2.7		28	70	5
10.0	3.43.54.36.5													2.5		20	68	0
10.0	3.53.73.94.04.34.54.75.05.56.0													2.8		28	70	5

LXWXT(mm)																a	r	B
L	W													T°
10.0	6.57.07.510.0													2.8		28	70	5
10.0	3.53.84.34.54.74.85.05.35.45.56													3		15	72	0
10.5	3.03.53.87.0													2.3		28	70	5
10.5	3.03.33.43.53.63.84.04.14.34.4													2.5		28	70	5
10.5	4.54.65.25.56.5													2.5		28	70	5
10.5	3.03.43.53.63.84.14.34.54.64.7													3		28	70	5
10.5	4.85.05.35.55.66.06.57.07.514.5													3		28	70	5
10.5	3.53.94.04.24.34.44.54.64.74.8													3.5		28	70	5
10.5	5.05.35.55.86.06.57.08.08.59.010.5													3.5		28	70	5
10.5	3.53.94.04.14.34.54.74.84.95.1													3.5		39	59	5
10.5	5.56.56.57.09.0													3.5		39	59	5
10.5	4.14.85.05.56.06.57.58.59.511.0													3.5		30	75	0
12.0	4.54.64.75.15.55.86.06.36.57.0													3.5		30	45	10
12.0	8.08.51012.517.0													3.5		30	45	10

LXWXT(mm)																α°	r°	B°
L	W													T°
12.5	4.04.54.85.05.45.55.96.26.36.57.07.510.1													3.0		28	70	5
12.5	4.85.25.35.46.06.36.56.87.07.5													3.5		28	70	5
12.5	4.55.05.56.06.36.56.87.07.58.09.512.5													4.0		30	70	5
13.0	4.04.34.55.05.25.55.86.06.36.5													4.0		30	45	5
13.0	7.07.58.08.28.59.010.011.013.0													4.0		30	45	5
13.0	4.44.84.95.25.45.75.86.06.36.5													4.0		30	60	5
13.0	6.77.07.58.510.0													4.0		30	60	5
13.0	4.04.54.84.95.05.35.56.06.56.8													4.0		40	60	3
13.0	7.07.58.08.510.0													4.0		40	60	3
13.0	5.06.07.08.09.010.012.0													5.0		35	45	0
14.5	4.04.55.05.56.06.57.07.58.08.59.0													4.0		30	70	0
14.5	10.011.012.012.213.014.014.215.016.0													4.0		30	70	0
14.5	16.217.018.019.020.0													4.0		30	70	0
15.5	8.09.512.013.0													5.0		30	0	0

Our Advantages
Features of cemented carbide saw tips blades
1.Production of 0.4 um ultrafine tungsten carbide.
2.The hardness of the product is as high as 93.5.it has good wear resistance.
3.High frequency welding of welding wire.
Inspection
The size of the angle shall not exceed 0.15 mm on the edge of the blade and 0.3 mm on the
non-blade.
The inspection rules and test methods should be in accordance with the provisions of GB 5242
Marking,packing,transportation and storage
Requirements for surface quality of cemented carbide saw tips blades
Cemented saw tips blade surface must not be delamination,cracks and bubbles,obvious
carburization and other defects.
The size of the angle shall not exceed 0.15 mm on the edge of the blade and 0.3 mm on the
non-blade
Package
The saw tips piece every 5Kg in a plastic bag,cardboard boxes in a dry,with scraps of paper or
cotton plugged in,carton box,or plastic box,placed in a corrugated box.Weight per box shall not
exceed 30Kg.
Each box should be sticked to the factory label,indicating the product brand,model,batch number
and net weight.
When the product is transported,the moisture should be prevented and the collision should not be
violently.
The product should be stored in dry,acid free,alkali atmosphere and corrosion protection.The
product should not be stored for more than one year,and the product discoloration should be
retreated and reused one year later.
