500kw Water Cooled Turbine Manufacture Gas Generators Set for Sale

Product Description

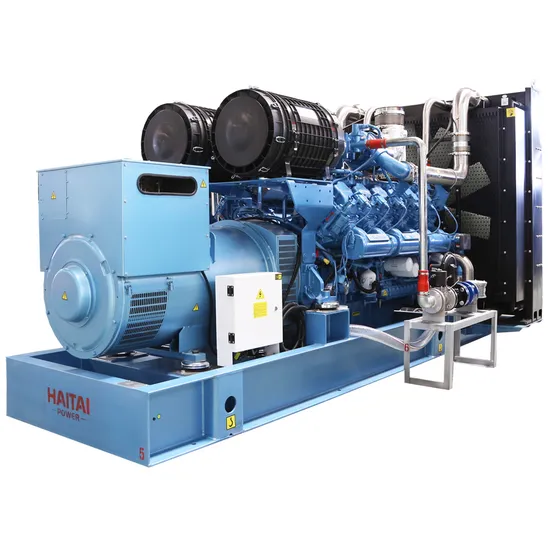

500kW Water Cooled Turbine Manufacture Gas Generators Set For Sale.
Shandong Pulita New Energy Technology Co.,LTD,located in Weifang National High-Tech Industrial Development zone, which is the biggest area of the power manufacturing in China. Pulita major in design, manufacturing, and installing of superb gas Generator set, ranging from 2kW to 3000kW which covers varied types for general and special users, including soundproof type, mobile type, containerized type, intelligent type, high voltage generators etc.
Product Description

Model	PLT-150DF		Rated current	270A
Rated power	150kW/187.5kVA		Power factor	0.8
Standby power	165kW/206kVA		Controller	Auto PLC controller
Rated voltage	400V/230V		Speed Governor	Electric control
Rated frequency	50Hz/60Hz		Fuel	Biogas, Natural gas
Rated speed	1500 rpm / 1800 rpm		Gas Consumption	≤0.6m³/kW·h

Product advantange Biogas generator Safety - Stability - Economy - Reliability Power
1. Brand new original Natural Gas / Biogas special use water cooled engine
2. Engine ECU governing and ignition system use BOSH and Germany part, with High reliability and safety
3. Genset equipped with explosion-proof safety system and Gas mixture automatically control system
4. Brand new Stamford type brushless AC alternator, 230/400V, 3-Phase, 50Hz, 1500Rpm, 0.8PF, IP23, H insulation class
5. Genset equipped with radiator with engine driven fan mounted on skid.
6. Genset Digital-6120U Automatic control system of generator include, High speed protect, High water temperature protect, low oil pressure protect, 3 phase Voltage,current and frequency,calculagraph,output power, LED display with AMF functions (for ATS)
7. Genset equipped with MCCB
8. Anti-vibration mounting
9. 24V DC Electric start system with maintenance free battery and Battery Connect wire
10. ndustrial class silencers with flexible connects and elbow
11. Genset with engine manual, controller manual, operation manual and standard engine tools
12. H igh protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
Model list Cummins LNG CNG Natural Methane Gas Generator Set

Generator spec.				Engine Spec.		Bore*Storke	Dspl
Model	Rated power		Frenquency / voltage	Engine model	Power/Speed
	kW	kVA	Hz/ V		kW/RPM	(mm)	(L)
HTG-15GF	15	20	50/400	4B3.9-NG	26/1500	102*120	3.9
HTG-20GF	20	25	50/400	4B3.9-NG	26/1500	102*120	3.9
HTG-25GF	25	30	50/400	4BT3.9-NG	30/1500	102*120	3.9
HTG-30GF	30	37.5	50/400	4BT3.9-NG	34/1500	102*120	3.9
HTG-35GF	35	43.75	50/400	4B3.9-NG	40/1500	102*120	3.9
HTG-40GF	40	50	50/400	4BTA3.9-NG	45/1500	102*120	3.9
HTG-50GF	50	62.5	50/400	6B5.9-NG	60/1500	102*120	5.9
HTG-60GF	60	72.5	50/400	6BT5.9-NG	70/1500	102*120	5.9
HTG-80GF	80	100	50/400	6BTAA5.9-NG	90/1500	102*120	5.9
HTG-100GF	100	250	50/400	6CT8.3-G1-NG	110/1500	114*135	8.3
HTG-120GF	120	150	50/400	6CTA8.3-NG	132/1500	114*135	8.3
HTG-150GF	150	200	50/400	6LTAA8.9-NG	180/1500	114*135	8.9
HTG-200GF	200	250	50/400	NTA855-NG	220/1500	140*152	14
HTG-250GF	250	300	50/400	KTA19-NG	280/1500	159*159	19
HTG-300GF	300	375	50/400	KTA19-NG	320/1500	159*159	19

Weifang Ricardo LNG CNG Natural Methane Gas Generator Set

Generator spec.				Engine Spec.		Bore*Storke	Dspl
Model	Rated power		Frenquency / voltage	Engine model	Power/Speed
	kW	kVA	Hz/ V		kW/RPM	(mm)	(L)
HTG-15GF	15	20	50/400	HT485NG	22/1500	85*90	1.8
HTG-20GF	20	25	50/400	HT4102D	22/1500	102*120	4.1
HTG-25GF	25	30	50/400	HT4102D	32/1500	102*120	4.1
HTG-30GF	30	37.5	50/400	HT4105D	32/1500	105*120	4.5
HTG-35GF	35	43.75	50/400	HT4105ZD	38/1500	105*120	4.5
HTG-40GF	40	50	50/400	HT6105D	45/1500	105*130	6.7
HTG-50GF	50	62.5	50/400	HT6105D	58/1500	105*130	6.7
HTG-60GF	60	72.5	50/400	HT6105ZD	68/1500	105*130	6.7
HTG-80GF	80	100	50/400	HT10D-NG	88/1500	126*130	10
HTG-100GF	100	250	50/400	HT10ZD-NG	110/1500	126*130	10
HTG-120GF	120	150	50/400	HT10ZID-NG	132/1500	126*130	10
HTG-150GF	150	200	50/400	HT12ZD-NG	160/1500	126*155	12
HTG-200GF	200	250	50/400	HT13ZD-NG	210/1500	127*165	13

Baudouin LNG CNG Natural Methane Gas Generator Set
All Weichai baudouin engines are built with the best technology and components. baudouin engines are ISO 9001: 2008 certified; which demonstrates its commitment to quality under European standards.

Generator spec.			Engine Spec.			Alternator	Controller	Dimensions
Model	Prime Power		Engine Model	Bore*Storke	DsHT	Faraday	Smargen/Deepsea	LxWxH (Open Type)	Weight
	KW	KVA		mm	L	Model		mm	kg
HTG-30GF	30	37.5	WP4D40E300NG	105*130	4.5	FD3C	HGM6110/DSE7320	1820*738*1084	760
HTG-50GF	50	62.5	WP4D66E300NG	105*130	4.5	FD3C	HGM6110/DSE7320	1931*738*1086	860
HTG-80GF	80	100	WP6D100E300NG	105*130	6.75	FD3C	HGM6110/DSE7320	1931*738*1086	860
HTG-100GF	100	125	WP6D132E300NG	105*130	6.75	FD3C	HGM6110/DSE7320	2532*950*1365	1085
HTG-120GF	120	150	WP10D158E300NG	126*130	9.7	FD3D	HGM6110/DSE7320	2667*950*1322	1632
HTG-150GF	150	187.5	WP10D200E300NG	126*130	9.7	FD3EM	HGM6110/DSE7320	2667*950*1322	1715
HTG-180GF	180	225	WP12D238E300NG	126*155	11.6	FD3G	HGM6110/DSE7320	2713*950*1410	2010
HTG-200GF	200	250	WP12D264E300NG	126*155	11.6	FD3H	HGM6110/DSE7320	2713*950*1411	2070
HTG-250GF	250	312.5	WP13D317E300NG	127*165	12.5	FD4M	HGM6110/DSE7320	3110*1134*1450	2275
HTG-500GF	500	625	12M26D605E300NG	150*150	31.8	FD5L	HGM6110/DSE7320	3747*1486*1909	5040
HTG-800GF	800	1000	12M33D880E310NG	150*150	39.6	FD6C	HGM6110/DSE7320	5500*2000*2100	7500
HTG-1100GF	1100	1375	16M33D1280NG10	150x185	52.5	FD7A	HGM6110/DSE7320	6090*2300*2900	12300
HTG-1400GF	1400	1750	12M55D1588A0NG	180x215	65.6	FD7A	HGM6110/DSE7320	6090*2300*2900	1230

Doosan LNG CNG Natural Methane Gas Generator Set

Generator spec.					Engine Spec.			Alternator	Controller	Dimensions
Model	Prime power		Standby Power		Engine model	Bore*Storke	DsHT	Faraday	Smargen/Deepsea	LxWxH (Open Type)	Weight
	kW	kVA	kW	kVA		mm	(L)	Model		mm	kg
HTG-114GF	114	142.5	125.4	156.8	GE08TI	111*139	8.07	FD3DS	HGM6110/DSE7320	2500×950×1520	1550
HTG-157GF	157	196.3	172.7	215.6	GE012TI	123*155	11.05	FD3F	HGM6110/DSE7320	2750×1015×1460	2170
HTG-201GF	201	251.3	221.1	276.4	GV158TI	128*142	14.6	FD3H	HGM6110/DSE7320	2850×1390×1820	2320
HTG-258GF	258	322.5	283.8	354.8	GV180TI	128*142	18.27	FD4M	HGM6110/DSE7320	3000×1390×1820	2580
HTG-301GF	301	376.3	331.1	413.9	GV222TI	128*142	21.92	FD4L	HGM6110/DSE7320	3200×1400×1820	3400

Man LNG CNG Natural Methane Gas Generator Set

Generator spec.					Engine Spec.			Alternator	Controller	Dimensions
Model	Prime Power		Standby Power		Engine Model	Bore*Stroke (mm)	DSHT. (L)	Faraday	Smargen/Deepsea	LxWxH (Open Type)	Weight
	KW	KVA	KW	KVA				Model		mm	kg
HTG-50GF	50	62.5	55	681	E0834E302	108*125	4.6	FD2C	HGM6110/DSE7320	2800*1050*1550	1600
HTG-100GF	100	125	110	137.5	E0836LE202	108*125	6.9	FD3C	HGM6110/DSE7320	3700*1150*1750	2200
HTG-200GF	200	250	220	275	E2676LE202	128*166	12.4	FD3H	HGM6110/DSE7320	4300*1300*2000	4400
HTG-250GF	250	312	275	342	E3262LE302	132*157	25.8	FD4M	HGM6110/DSE7320	4300*1300*2000	4600
HTG-400GF	400	500	440	550	E2842LE232	132*157	25.8	FD5M	HGM6110/DSE7320	5200*2000*2100	6400
HTG-520GF	500	625	550	681	E3262LE202	132*157	25.8	FD5LP	HGM6110/DSE7320	5500*2000*2100	75

Producet Detail
Packaging & Shipping Our services one year or 1000 hours whichever reach first from exfactory date. 1. During the guarantee period-
ur will provide the free easydamageable spare parts of alternator caused by our quality of production or raw material.
2. After expiration-
our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Our customer
Feedback of customer
FAQ 1.What's your power range of biogas generators?
Re: We can offer the range from 10kW~1000kW.
2.What's your delivery time?
Re: 7-25 work days after we get the down payment, if your order is some special engine and alternator, then the delivery time is longer.
3.What's your payment?
Re: We accept T/T, L/C, ****** trade assurance also acceptable.
4.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
5.What's your MOQ?
Re: One set.
6.What's the frequency of diesel generators?
Re: 50Hz/60Hz.
7.Do you have single phase or three phase diesel generators?
Re: Sure, we have single phase and three phase diesel generators.
8.What's the voltage of your diesel generator?
Re: 220/110V, 380/220V, 400/230V, 415/240V, 440/260V, 460/270V, and double voltage.
