Metal Lathe Big Turning Manual Lathe Machine Cak6140 Cak6150 Cak6160 Cak6166 Cak6180
| US$3,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CAK6140 CAK6150 CAK6160 CAK6166 CAK6180
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
500mm
Swing Over Cross Slide
300mm
Width of Bed
400mm
Spindle Bore
105mm
Motor Power
7.5kw
Spindle Taper
Mt6
Spindle Speed
10-1400rpm
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description

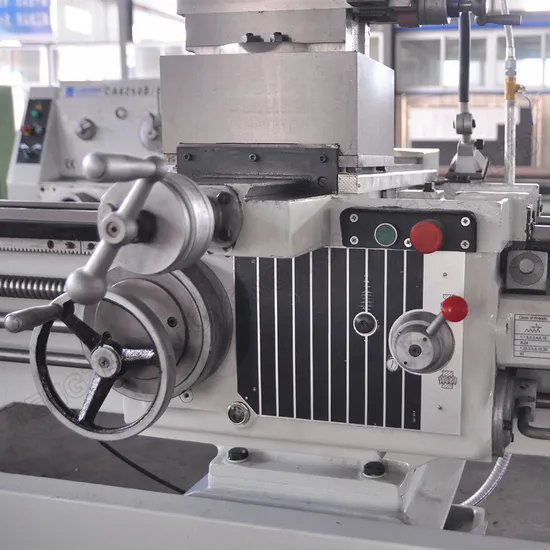

BIG BORE GAP BED LATHE FEATURES:
1.Widen guideway
2.High quality casting body
3.Hardened and ground bed way coated with Turcite-B
4.Integrated automatic lubrication
| MODEL SPECIFICATIONS | CA6140 CA6240 CA6140B CA6240B | CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C | CA6161 CA6261 CA6161B CA6261B CA6161C CA6261C | CA6166 CA6266 CA6166B CA6266B CA6166C CA6266C | CA6180 CA6280 CA6180B CA6280B CA6180C CA6280 | |||||||
| Max .Swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm | |||||||
| Max .Swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm | |||||||
| Max .Swing in gap | -- | 630 | -- | 720 | -- | 830 | -- | 880 | -- | 1020 | ||
| Effective gap length | -- | 210 | -- | 210 | -- | 210 | -- | 210 | -- | 210 | ||
| Max .length of work piece | 750/1000/1500/2000/2200/3000 | |||||||||||
| Width of bed | 400mm | |||||||||||
| Section of turning tool | 25×25mm | |||||||||||
| Spindle | Spindle speed | 10-1400rpm/16-1400rpm(24steps) | ||||||||||
| Hole through spindle | 52mm ,(80mm),[105mm] | |||||||||||
| Spindle taper | (MT6)(Φ90 1:20)[Φ113:20] | |||||||||||
| Feed | No. of feed | (64 kinds)(for each) | ||||||||||
| Range of metric threads | (1-192mm) (44 kinds) | |||||||||||
| Range of inch threads | (1-24tpi) (21kinds) | |||||||||||
| Range of module threads | 0.25-48 (module 39 kinds) | |||||||||||
| Range of diametral pitc threads | 1-96DP (37 kinds) | |||||||||||
| Tailstock | Max. tailstock spindle travel | 150mm | ||||||||||
| Tailstock spindle diameter | 75mm | |||||||||||
| Taper of tailstock | (MT5) | |||||||||||
| Main motor | 7.5KW(10HP) | |||||||||||
| Packing | 750/1000/1500/2000 /2200/3000/4000 | 2440/2650/3150/3650/4030/4800/5680×1140×1750 | ||||||||||
| Weight | G.W. N.W.(kg) | |||||||||||
| 750mm | 2100 1990 | 2170 2060 | 2300 2180 | 2380 2260 | 2520 2400 | |||||||
| 1000mm | 2190 2070 | 2260 2140 | 2380 2250 | 2570 2450 | 2720 2560 | |||||||
| 1500mm | 2350 2220 | 2420 2290 | 2577 2437 | 2810 2640 | 2980 2800 | |||||||
| 2000mm | 2720 2570 | 2790 2640 | 2940 2787 | 3050 2880 | 3260 3087 | |||||||
| 2200mm | 2800 2600 | 2940 2790 | 3120 2970 | 3390 3180 | 3490 3287 | |||||||
| 3000mm | 3300 3200 | 3450 3300 | 3600 3450 | 3930 3687 | 4220 3887 | |||||||
| 4000mm | 3500 3400 | 3750 3600 | 3950 3800 | 4580 4200 | 4850 4500 | |||||||
