Hcm-2800 Full-Automatic Honeycomb Core Machine
| US$120,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HCM-2800
Process
Core Machine
Usage
Make Continous Honeycomb in One Stop
Type
Glue Roller System/Glue Pipe System
Weight
30ton
Characteristic
High Speed and Efficiency
Transport Package
Wood Package
Specification
CE
Trademark
Shenxi
Origin
China
Production Capacity
20PCS/Year
Product Description

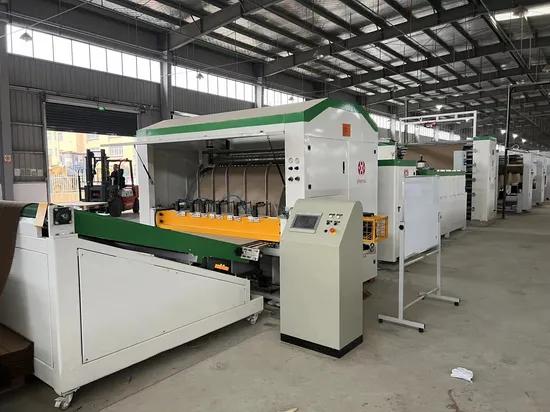

Full-automatic Honeycomb Core Machine
This machine is the newest type of honeycomb core making machine.It apply glue lines by glue
roller system (traditional gluing) or glue pipe system (new gluing system)to make continous
honeycomb in one stop. Horizontal cutting system, use 7075 alloy aluminum knife frame, for high
speed, high efficiency and low vibrating cutting.
Process of honeycomb making:
Paper feeder--Flatten--Gluing uint--Drying&rubber roller drive --Cutter--Conveyor.
| No. | Item | HCM-1600/2000/2400/2800/3200 |
| 1 | Thickness of honeycomb core | 6-100mm |
| 2 | Width of paper core (before expanding) | 1600/2000/2400/2800/3200 |
| 3 | Max. designning cutting speed | 820 cuts/min |
| 4 | Cutting tolerance | +-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm) |
| 5 | Applicable paper | 90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers) |
| 6 | Qty of paper reels | 6/8 |
| 7 | Cell size | 8-40mm (according to customer choice, choose two cell sizes) |
| 8 | Gluing roller /pipe change (for different cell size) | 10-30 minutes |
| 9 | Heating drying method | Electric heating |
| 10 | Total Engine power | 35KW |
| 11 | Power supply | Three phases, 380V/50Hz (can be speical made ) |
| 12 | Layout | 30000X5000X2500mm |
