ID49.5 and ID 55 Car Exhaust Pipe Tube Bellow Production Line Forming Machines^

Product Description

ID49.5 and ID 55 Car Exhaust Pipe Tube Bellow Production Line Forming Machines^
Product Description
Tube Welding Machine
Size range: DN20-DN150
Wall thickness: 0.2-0.6mm
Welding speed:0.8-2.0m/min
Control: Frequency conversion speed control
Welding method: Argon-arc
Welding Welding machine: Panasonic or KEMPPI welding machine
Vertical Hydroforming Bellow Forming machine

NO.	Name	Model	Brand	Unit	QTY	Remark
1	PLC host	XC3-42T-E	Xinjie	pc	1	Transistor output, AC220V power supply
2	Touch screen	ET100	Kinco	pc	1	10 inch
3	Switching power supply	EDR-150-24	MEANWELL	pc	1
4	Intermediate relay	RXM2LB2BD,RXZE1M2C	Famous Brand	set	3	DC24V,2P with LED light
5	AC motor starter	CDV2S-32	DELIXI	pc	1
6	Proximity switch	LJA12M-5D1	C-Lin	pc	5
7	AC contactor	CJX2s-1810	DELIXI	pc	2	Coil voltage,AC220V
8	Breaker	DZ47s-D10,D6	DELIXI	pc	2	10A,6A 1P, one for each
9	Solid-state relay	RT-SSK10D	ENMG	set	1	16 channels 10A DC control DC
10	Rotary knob		YIJIA	pc	1	2-position hold
11	Indicator light		YIJIA	pc	1	Red,DC24V
12	Button		YIJIA	pc	1
13	Aviation plug			set
14	Terminals
15	Communication line	1.5m		pc	1
16	Other electrical accessories	Wire ducts, guide rails, install panel, cable ties,wire nose, etc.

Interlock hose making machine(ID:38-150)
Machine Type No.: CF-150
Available Shape: round or polygonal with different forming dies.
Size range: ID38-150
Forming speed: 150-350m/8hrs
Strip thickness: 0.25-0.5mm
Strip width: 16 and 20mm
Power:4KW
Outer dimensions: 3500mm*1200*1600mm
Weight: 950kgs
48 carrier wire braiding machine
Consisting of: -Braiding grail 1 unit -Caterpillar 1 unit -Bobbin, carrier 48 units Technical parameter: Braiding diameter (mm): 30-75 Carrier rotation speed (r/min): 7.25 Braiding angle: 54°44" Braiding pitch (mm): 66-166 Pulling speed (M/H): 29-72 Carrier NO.: 48 Motor power (KW): Y132M2-6 5.5kw; Y112M-4 4.0kw Dimension (L*W*H): 4150*1830*1900 Machine Weight: 5000 Kgs
12-ply bobbin rewinding machine
Consisting of: -Pay-off rack 1 unit -Winder 1 unit
Technical parameter: Winding diameter(mm): 2-12 Rotation speed (r/min): 180-570 Wire diameter(mm): 0.25-0.5 Winding speed(m/min): 50 Motor Power:2.2KW
Product Parameters

Machine Picture&Main parameters

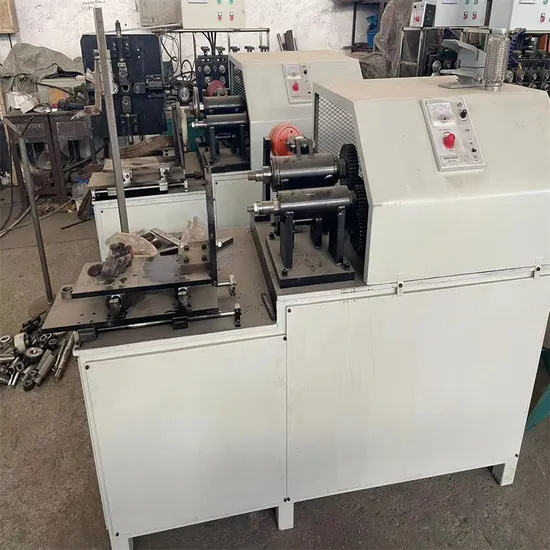

Double end trimming machine
1.Motor Speed regulating motor power:3KW
Oil motor power: 2.2KW
2. Working principle
The speed-adjusting point machine drives the gearbox (200 type speed ratio 40:17) to drive two pairs of gears through the chain,and the hob moves forward and under
the action of the cylinder.
3. Dimension L: 1.6m *W: 0.8m *H: 1.2m
Bellow compressing machine
Size range:ID40-ID80 Including 4 sets of toolings for 4 sizes Power:2.2KW Speed:1600pcs/8hr
Cap Crimping Machine
Size range: ID40-ID80 Including two sets of toolings Power:2.2KW Speed:1600pcs/8hr
Double end expanding machine
Size range:ID40-ID80
Including two sets of toolings for 4 sizes Power:2.2KW
Speed:2800pcs/8hr
Factory
Our client's factory side
Company Profile
We are professional manufacturer of flexible metal hoses/bellow,exhaust pipe production line machinery for over 25 years. Our machines have been exported to many countries, such as Russia, Ukraine, Canada, USA, UK, Poland, Australia, Malaysia,Singapore, Argentina, Brazil,India etc...
FAQ
What is exhaust pipe size, wall thickness,convolution height, pitch,number of convolutions?
It would be helpful if you directly send us the technical drawing of exhaust pipe.
