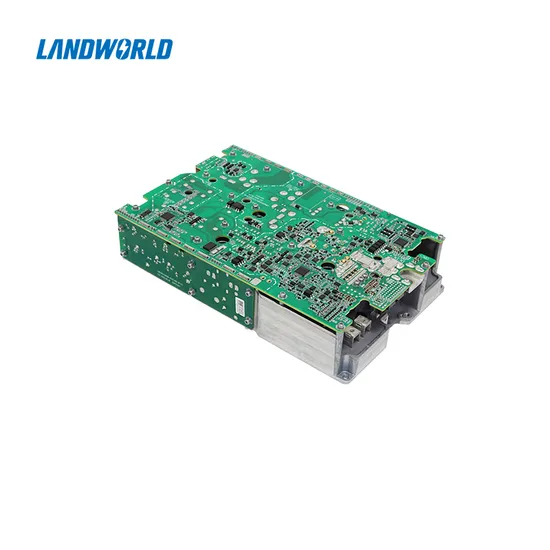

Landworld Power Supply Bidirectional 6.6kw Obc+2kw Dcdc
| US$1,800.00-2,000.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
LWD2KC6K6B-D14C380-M
Usage
EV Power Supply
Specification
270x174x60mm
Trademark
LANDWORLD
Origin
China
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.500kg
Product Description
Product Features: Body Size: 270x174x60mm Weight:≤5.5KG Cooling method:By aluminum plate Support on-line upgrading and fault diagnosis Compatible with single and three phase charging station Full digital software design, Redundant protection function design
Main Technical Parameters
| Items | Technical Specification | Remarks |
| OBC Electrical Features | ||
| Nominal output power | 6.6KW | |
| Input Voltage | 85-265VAC | |
| Input current | 32A Max | |
| Power factor | ≥0.99(220Vac @ full load) | |
Output voltage range | 250-450VDC | Can be adjusted according to battery voltage |
| Max output current | 20A | |
| Efficiency | ≥94% | Typical efficiency |
| Voltage accuracy | ±1% | |
| Current accuracy | ±1% | |
| DC/DC Electrical Features | ||
| Input voltage | 250-450VDC | |
| Output current | <16A @240Vdc full load | |
| Efficiency | ≥94% | |
| Output voltage | 9-16V | |
| Nominal voltage | 14V | |
| Nominal output current | 145A | |
| Nominal power | 2KW | |
