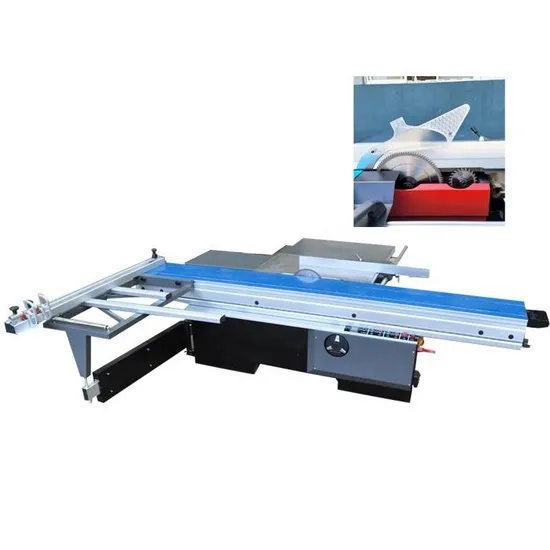

Panel Saw Furniture Tools Wood Cabinet Makers Board Machinery Tables Slide Saw

Product Description

Product Description
1. The operation is light and labor-saving, the driving stroke is large, and the cutting width is large;
2. Equipped with stable and lightweight towing frame, running smoothly;
3. The setting of the mobile table and the main saw blade can be adjusted by 45 degrees, which expands the scope of use of the saw machine. Mouth processing.

Mode	2.8m 45° MJ45YD	2.8m 90° MJ90YD
Dimension of sliding table	2800X320mm	2800*320mm
Length of cut between saw blade and rip fence	2750mm	2750mm
Width of cut between saw blade and rip fence	1250mm	1250mm
Saw blade diameter	300mm	300mm
Height of cut	80mm	80mm
Speed of main saw spindle	4000/6000rpm	4000/6000rpm
Main spindle diameter	30mm	30mm
Tilting saw blade	0-45°	90°
Main motor	4.0/5.5kw	4.0/5.5kw
Scoring saw blade diameter	120mm	120mm
Speed of scoring saw blade	8000rpm	8000rpm
Scoring saw diameter	20mm	20mm
Scoring motor	0.75/1.1kw	0.75/1.1kw
Overall dimension	2850*3050*900mm	2850*3050*900mm

Detailed Images
Electric liftExport lifting mode for electric lifting angle display for digital reading, plus accuracy and convenience.
45°/90° sawThis machine can adjust 45° or 90° saw tooth,suitable for more range of wood use.
Motor double work
support machine stable and effeciency cutting works
Round guide railThe double-layer round bar guide rail push table has stable structure,high pressure bearing and guaranteed precision
Sample
Packing&Shipping
Company Introduction
China(Shandong) Samet Intelligent Manufacturing Co., Ltd. is a scientific and technological enterprise specialized in the research, development and manufacture of automatic woodworking equipment and laser CNC equipment. After nearly 10 years of development experience, the company has a 36000 square modern chemical plant in the beautiful spring city of Jinan, and has become a reliable and reliable CNC machine manufacturer at home and abroad. Our main products include ATC CNC machining center, 4-axis CNC machining center, high-end customized furniture production line, CNC six-sided drill, CNC machining center, CNC side hole machine, edge banding machine, sliding table saw, film coating machine, polishing machine, optical fiber cutting machine, laser engraving machine, stone CNC machining center, vibrating knife cutting machine, plasma cutting machine, 3D scanner and other woodworking machines. These equipment are used in industry, handicraft and art industries around the world. These include woodworking, metal and stone processing, aluminum manufacturing, mechanical processing, mold manufacturing, etc.
OUR SERVICE
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2.24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service
1.Training how to install the machine, training how to use the machine online.
2.Engineers available to clients' factory for training if necessary.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining 6.Free technician training for customers.
Good services
1.2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any
problem during the warranty period. 2.Lifetime maintenance free of charge. 3.Free training course at our plant. 4.We will provide
the consumable parts at an cost price when you need replacement. 5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
