Long Range Thermal Laser PTZ Infrared Surveillance Video Thermal IP Camera 5km

Product Description

Product Description
RC20 Series Long Range HD Infrared Laser Camera
RC20 series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km in the night
Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
Feature:
DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
GHT super homogenizing and power consumption control of NIR laser ensure a better effect.
Independent laser photoswitch.
360° continuously rotation PT, rotation stably.
One integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.
Application:

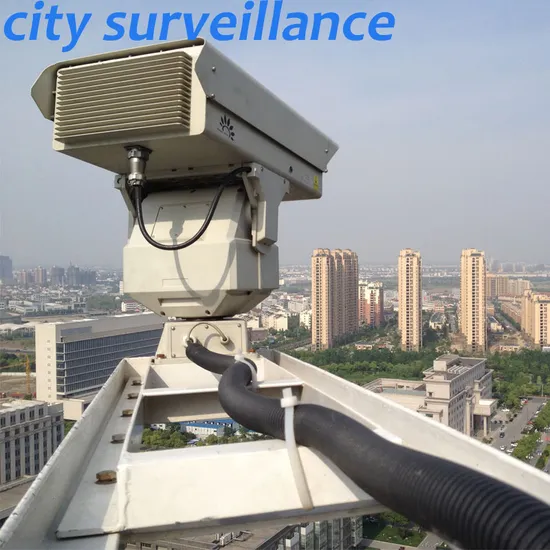

Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention. Product Parameters

Model	RC2021	RC2030	RC2050	RC2076	RC20100
Detection	Day: 1km;	Day:2km;	Day:3 km;	Day: 5 km;	Day:6 km;
	Night: 500m	Night:1km	Night:1.5km	Night: 2km	Night:3 km
Consumption	6W,808nm, NIR	10W,808nm , NIR	12W,808nm , NIR	15W,808nm , NIR	15W,808nm , NIR
Laser angle	1.5°~20°	1°~20°	0.7°~20°	0.5°~20°	0.3°~20°
Angle and distance matching	DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming
	GHT-II super homogenizing HD illumination technology
	0.01°SLM optical axis aiming and locking
Camera	1/2.8'', 0.005lux high sensitive color to B/W CCD ,2 megapixel		1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel
	Automatic ICR switch,H.264 video format		Automatic ICR switch,H.264 video format
Lens	10-210mm HD lens , motorized zoom	12-320mm HD Infrared correction lens , motorized zoom	15-528mm HD lens, infrared correction, motorized zoom	25-750 mm HD lens,2 mega pixels, motorized zoom	20-1000mm HD lens, infrared correction, 2 mega pixels, motorized zoom
Penetrate fog	Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog
Housing	One integral aluminum alloy housing,sealed and waterproof,IP66
Load duty	20kg	30kg		50kg
PT	Pan: 0°~355°	Pan: 360° continuously		Pan: 360°continuously
	tilt: +10°~-70°	Tilt: +40°~-75°		Tilt: +45°~-45°
Rotation speed	Pan: 9°/S	Pan: 0.01~60°/S		Pan: 0.01~30°/S
	Tilt: 4°/S	Tilt: 0.01~30°/S		Tilt: 0.01~15°/S
Preset	50, with patrol and scan function	80, with patrol and scan function
Interface	1*RJ45,1*AC24V
Power supply	AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter
Weatherproof	IP66
Anti-lighting	Power voltage 4000V,communication signal 2000V
Protocol	Pelco-P,Pelco-D and so on standard protocol, baud rate 2400,4800,9600,19200
Operational temp.	-25ºC~+55ºC (-40ºC optional)
Weight	≤30kg			≤40kg
