Metal Copper Iron Aluminum Stainless Steel Pipe Diameter Reducing, Hydraulic Tube End Tapering, Tube Cone Forge Shaping, Manual Handheld Rotary Swaging Machine

Product Description

Product Description

Metal Copper Iron Aluminum Stainless Steel Pipe Diameter Reducing, Hydraulic Tube End Tapering, Tube Cone Forge Shaping, Manual Handheld Rotary Swaging Machine

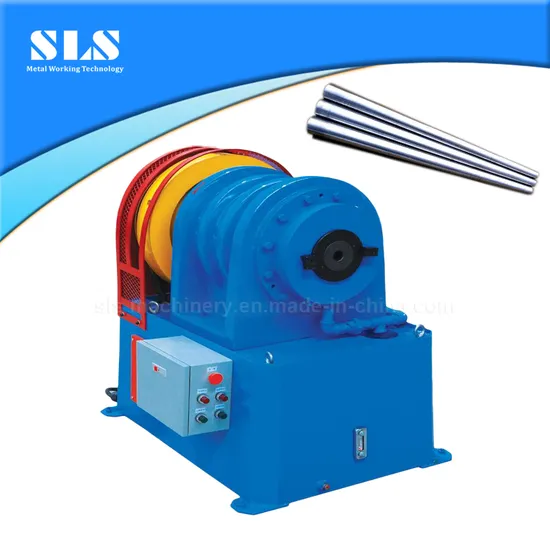

Brief Introduction on Pipe Rotary Swaging Machine
SLS Metal Copper Iron Aluminum Stainless Steel Pipe Diameter Reducing, Hydraulic Tube End Tapering, Tube Cone Forge Shaping,
Manual Handheld Rotary Swaging Machine also know as pipe tapering machine or pipe cone machine is a special kind of pipe cold
forming machine.In other words, rotary swaging is designed as a cost-efficient alternative to traditional metal forging and
machining operations.The function by using four die rotary hammering mechanisms to taper a tube to its final form. As the tube is
fed into the machine, it will be swaged by the dies to taper it into the desired form, which will be set according to the specifications
on the control mechanism.By applying German advanced technology and good mechanism&electrical quality controlling, machine
with extremely advantage of low noise.It is the practical manual rotary swaging solution for small to medium productions.

Features on Pipe Rotary Swaging Machine Operation panel offers easy operation of machine.
All the parts are made under very strict quality control, so the quality of machine is in high level and the specification
is standardized.
Machine featured as manual pipe loading,manual pipe feeding into machine,automatic rotary swaging.
A high quality Pipe Shaping Machine will use tools that move the dies in and out, offering as many as 3000 blows per minute
to hammer the tube into the desired shape.
The thickness of the pipe and the strength of the material to be tapered will also impact how the materials should be prepared
to create a clean tapered edge.
Available pipe material: steel, stainless, aluminum, titanium and brass...
The design of the tooling help customer easy to change.
Very Low noise during working: 75-85db.
CE&ISO 9001:2000.
Main Technical Parameters Sheet

Model	TF-38F	TF-50F	TF-76F	TF-38Y	TF-50Y	TF-76Y	TF-38CNC	TF-50CNC	TF-76CNC
Capacity	38x1.5mm	50x1.5mm	76x2.5mm	38x1.5mm	50x1.5mm	76x2.5mm	38x1.5mm	50x1.5mm	76x2.5mm
Swagging Power	4Kw	5.5Kw	7.5/11Kw	4Kw	5.5Kw	7.5/11Kw	4Kw	5.5Kw	7.5/11Kw
Accuracy	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm	+/- 0.1mm
Tapering Length	300mm	400mm	600mm	300mm	400mm	600mm	300mm	400mm	600mm
Type	Manual	Manual	Manual	Semi Auto	Semi Auto	Semi Auto	Full Auto	Full Auto	Full Auto

FAQ:

1.Q: Are you a manufacturer or trading company?	A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2.Q:Where is the nearest airport to your company?	A: Wuxi Airport or Shanghai Airport.
3.Q: How to choose the pipe/tube forming machines?	A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Pipe forming length - Diameter after forming - Other requirements
4. Q: Do you have CE certificate?	A: We have CE certificate.
5. Q:How about your service?	A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
