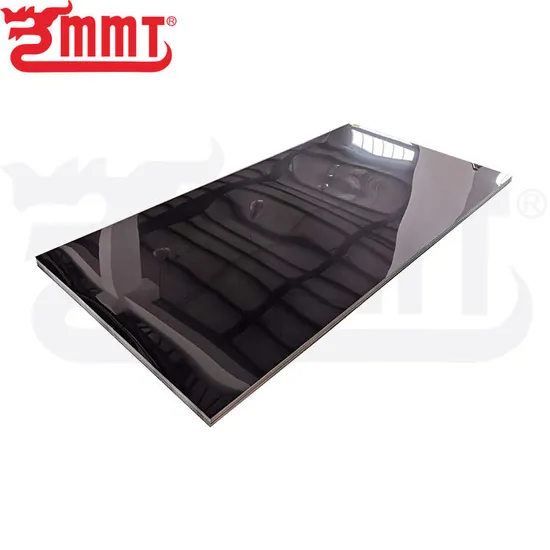

High Selective Solar Absorber Coating Film for Solar Collector Thermal Absorber
Basic Info.
Model NO.
0.4mm
Working Temperature Range
Low/Middle/High Temperature
Type
Flat Panel
Application
Water Heater, Solar Thermal, Air Conditioning System
Pipe Material
N/a
Use
Heat Water
Size
0.4mm
Color
Dark Blue
Tolerance
10%
Grade
1000 Series
Material
Aluminum Alloy
Absorptance
92-96%
Processing Service
Cutting
Absorber Coating
Highly Selective Vacuum Coating
Alloy or Not
Non-Alloy
Delivery Time
8-14 Days
Product Name
Blue Selective Coating
Temper
O-H112
Surface Treatment
Coated
Certificate
ISO9001
Transport Package
Plywood Crate
Specification
0.4mm
Trademark
SMMT
Origin
Fujian, China
Product Description
The key accessory of every solar collectors is the solar absorber. Its efficiency is given by a high absorptive and low emission rate.SMMT high selective solar absorber "Thermal Collector is manufactured by advanced PVD coating devices, which achieve absorptive rate up to 95% and heat emission lower than 5%. It is also optimized to the wavelengths of sunlight with the high intensity to bring the maximum heating performance.
SMMT high selective solar absorber "Thermal Collector" is made with continuous air-to-air producing vacuum coating equipment, which give us the possibility to coat with high efficiency and speed. It combines sputter process and electron beam technology to form the selective absorber layers on metal strips.
This kind of PVD still achieves both the high quality of layers and the environment protection.
SMMT will be a reliable long-term cooperation partner for flat plate solar water heater and evacuate tube water heater supplier. Product & Applications
Product Parameters
| Product Name | High Selective Solar Absorber | "Thermal collector" |
| Substrate Specification | Material | Aluminum Strip |
| Width[mm] | 1000-1250 | |
| Standard Thickness[mm] | 0.3-1.0 | |
| Standard Alloy | 1050 | |
| Temper | H18 | |
| Density [g/cm3] | 2.7 | |
| Thermal Conductivity [W/(m.K)] | ~230 | |
| Tensile Strength [N/mm2] | >=135 | |
| Yield Strength [N/mm2] | >=100 | |
| Optical Property | Solar Absorptive Rate(%) | 95±2 |
| Heat Emission Rate(%) | 5±2 | |
| Payment Term | TT, LC | |
| Packing | 1. Product surface attached with proctective film 2. Plastic film sealed 3. Anti-collision foam 4. Drying agent 5. Seaworthy exporting wooden case | |
| Delivery Time | Future goods: 25-35 work days; Ready Stock: 7- 10 days | |
