Hot Sale Xj350 Truck Mount Drilling Rig

Hot Sale Xj350 Truck Mount Drilling Rig

US$1,500,000.00
1-2 Sets
US$1,250,000.00
3+ Sets

Basic Info.

Model NO.
XJ350
Condition
New
Motor
Diesel
Drill Hole Diameter
>300mm
Drill Hole Depth
>300m
Bit Type
Cone Bit
Drilling Way
Impactor
Voltage
380V
Weight
51000 Kg
Workover Depth
3,200m (10,500FT, 2-7/8 Dp)
Rated Hook Load
600kn (134,900 Lbf)
Max. Hook Load
900kn (202,330 Lbf)
Hook Hoisting Speed
0.25~1.4m/S (0.82~4.6FT/S)
Max.Travel Speed
45km/H (28mil/H)
After-Sales Service Provided
Free Spare Parts, Online Support
Servicing Depth
4,000m (13,120FT, 2-7/8 Eue Tubin
Transport Package
Naked Outfit
Specification
18.5X2.9X4.2m
Trademark
Beyond
Origin
Shandong China
HS Code
8431431000
Production Capacity
100

Product Description

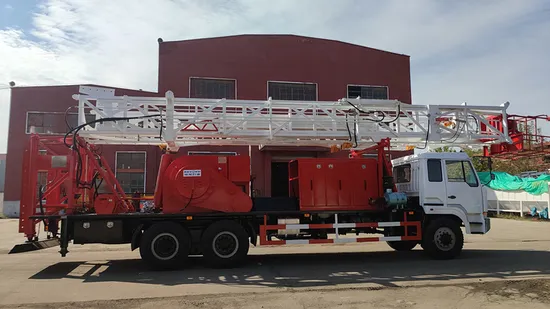

XJ350 Drilling & Workover Rig features fast moving speed and high service efficiency. Equipped with Allison 4700 transmission, the XJ350 workover rig can reach up to 4,000m for workover and well service. The rig is rated by customer all over the world as the best economic workover rig for its reliable performance, innovative design and economical cost.

Description XJ350 Workover Rig (Overhaul) XJ350 Workover Rig (Servicing)
Workover Depth 3,200m (10,500ft, 2-7/8″DP)2,500m (8,200ft, 3-1/2″DP)
Servicing Depth 4,000m (13,120ft, 2-7/8″EUE Tubing)
Rated Hook Load 600kN (134,900 lbf)
Max. Hook Load 900kN (202,330 lbf)
Traveling System 3×4 {Φ26mm (1'') Wireline}
Hook Hoisting Speed 0.25~1.4m/s (0.82~4.6ft/s)
Overall Dimensions(l×w×h) 18.5×2.9×4.2m60.7ft×9.5ft×13.8 ft 18.5×2.85×4.2m60.7×9.4×13.8ft
Total Weight 51,000kg (112,440 lb) 49,500kg (109,130 lb)
Speed 45km/h (28mil/h)
Carrier Self-propeller 10×8
Transmission Allison 4700 OFS Allison M5610s
Max. Static Load 900kN (202,330 lbf)
Racking Board Capacity 4,000m (13,120 ft, 2-7/8″EUE Tubing)
Racking board Height 16.8m (55 ft)
Drawwork Rated Power 224kW (300hp, Double drum) 238kW (320hp)
Main Drum Φ406×890mm (Φ16″×35'') Φ429×965mm (Φ16.9″×38'')
Max. Faster Line Pull 180kN (40,470 lbf )
Sanding Drum Φ965×264mm (Φ38″×10.4'')
Air Assist Brake System KOBELT Disc4-7-35″ Caliper 5026-CM KOBELT Disc4-7-48″ Caliper 5026-CM
Drill Floor (l×w×h) 4.2×4.2×3.7m (13.8×13.8×12.1 ft)
Swivel Model and Max. Load SL90 900kN (202,330 lbf)
ZP125 Rotary Table Max. Load 900 kN (202, 330 lbf
Max. Open Dia. 292mm (11.5")
Shandong Beyond Petroleum Equipment Co., Ltd, hereinafter referred to as "Beyond", was established in year 2016 and certified by ISO9001. Its main business scope is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, construction and HDD.
Beyond products cover but not limited to: oil drilling & workover rig, water well drilling rig, pile drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We can customize the product supply as per your on-site conditions, and we can offer overseas after-sale services with our strong technical support. Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products had covered countries like USA, Venezuela, Argentina, India, Singapore, Kazakhstan, Azerbaijan, Egypt and Ethiopia.
With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its business principle, Beyond believes we will become your trustable and reliable partner in China. We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. Choose Beyond, You will get beyond your expectations and we will not let you down.
