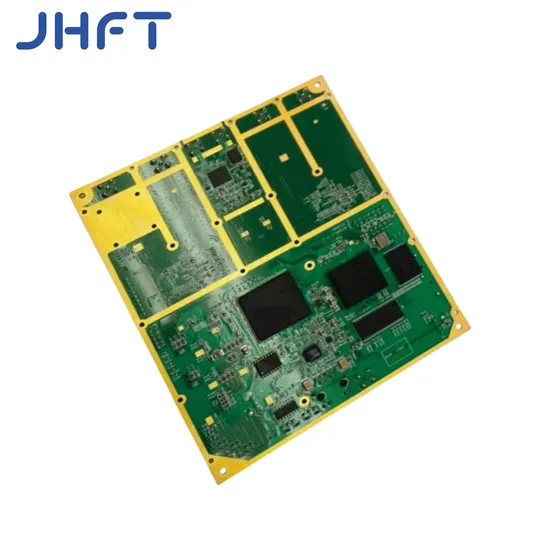

ODM Inverter Multi-Zone System Compressor Control PCBA for Air Conditioner Duct Machine

Product Description

Company Profile

LED display
Product Parameters

Item	Specification
1	Number of Layer	1-26Layers(standard)
2	Material	FR3,Aluminum ,FPC
3	Surface Finish	HASL(LF),Gold plating,Enig ,lmmersion gold,lmmersion Tin,OSP
4	Finish Board Thickness	0.2mm-6.00mm(8mil-126mil)
5	Coppeer Thickness	1/2oz min;12oz max
6	Solder Mask	Green/Black/White/Red/Blue/Yellow
7	Min.Trace Width&Line Spacing	0.075mm/0.1mm(3mil/4mil)
8	Min Hole Size	0.15mm
9	Driling Hole Size	0.15~6.5mm
10	Min Soldermask Bridge	0.1mm
11	Orifice diameter	10:1
12	Board Thickness	0.20mm-10mm

Packaging & Shipping
Certifications
FAQ Q. What is your best pricQ.What kind of documents/files do you need for quotation?
For PCBA project, please send us your Gerber files, BOM(bill of material),and pcb specification.
For plastic enclosure/junction box/shell, please send us your 3D drawing,and material.
For ODM/Engineer Development service, please consult our sales engineer for more details.
Q. How to keep our product information and design file secret ?
We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q.How long does it take for PCB and PCBA Quote ?
*Please note that the following detail will speed up evaluation:
Material:
Board thickness:
Copper thickness:Surface finish:
Solder mask color:
Silkscreen color: Q.How can we guarantee you receive an good quality product?
For PCB, we will use Flying Probe Test, E-test etc. for it.
For PCBA, we need you to offer us a method or test fixture for the function test.Before that, our inspectors will use microscope and X-ray to check the IC footwelding or bad solder etc.
