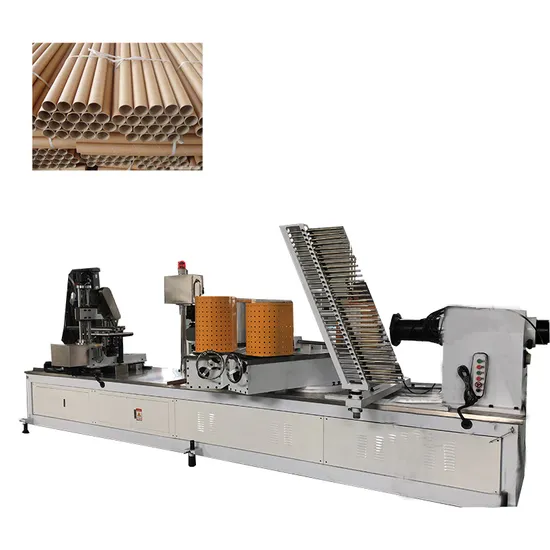

Automatic Spiral Paper Core Winder
| US$30,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JT-50A
Max. Machine Speed
20m/Min
Paper Core Diameter
10-100mm
Paper Core Thickness
1-5mm
Paper Core Length
500-5000mm
PLC Control System
Yes
Dialogue Monitor
Available
Paper Roll Layer
1-16layers
Frequency Inverter
Yes
Machine Type
Spiral Paper Core Winding Machine
Material
Paper
Transport Package
Wooden Case
Specification
2700*1600*1900mm
Trademark
JOTAMACHINERY
Origin
Ruian, Zhejiang, China
HS Code
84411000
Production Capacity
400PCS/ Year
Product Description
JT-200A Paper Core Making Machine| It is used for making all kinds of paper core in different diameter and length, which is used for gift packing, tissue paper, stretch film, fax paper etc. it can make flowers, cloth movements, Split, cotton yarn, fax paper, film preservation, tissue paper and pipe tobacco production. Special high-precision lathe with a fixed three-jaw chuck, top flange bear more than solid, more convenient replacement Spindle | |
| Model Type | JT-200A |
| Paper Roll Layer | 1-24 layers |
| Paper Core Thickness | 1-20mm |
| Paper Core Diameter | 20-250mm |
| Paper Core Length | 500-5000mm |
| Max. Machine Speed | 20m/min |
| Specifications |
| Application Material |
| Kraft Paper |
| Main |
| It adopts Programmed Control System and meter counter, all the working parameters can be setup on the control panel. Delta PLC control system, a mainframe operating |
| It adopts HIGHTECH touch screen from Taiwan, all the parameters can be displayed on the control panel, and easy operation. |
| It adopts imported frequency inverter to control the AC motor, the machine working is more stable |
| It adopts separate electrical control box, and it is with input plug terminal, the sale after service and repair shall be more easier |
| Text Display operation, all of the features automatic memory, automatic preservation, automatic fault display. |
| It adopts dialogue monitor, it is with function of automatic store, trouble display, working position |
| It adopts imported single disc cutter to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting. |
| The transmission parts with extreme quiet design,adopt special treatment, it is high efficiency and low maintenance. |
| It adopts double side glue coating devices, the paper core is more sticky and stronger. The use of double-sided adhesive plastic trough independent stainless steel scraper polyurethane imports, production of a paper on the strength of stronger glue on one side of the traditional paper machine. |
| It adopts double photocell for the paper core length tracking, after get to the setup length, the paper core shall be cut off. |
| Circuit System with Remote Control function, users can travel in the office or in the field can be a computer monitor in the operation of plant equipment. If the circuit and system failure and other reasons, and in our communications tools and software control, plant technical personnel can be created to implement and maintain operational functions |
| Specifications |
| The unwinding angle is adjustable on the control panel |
| It adopts compact structure for space saving. |
| The Main Technical Parameters | |
| Paper Dish Dia. | 100-1200mm |
| Layers | 16 |
| Weight | 500 Kg |
| Overall Dimension(L x W x H) | 2500 x 1500 x 1800 mm |
| Specifications |
| It adopts automatic glue recycle system. |
| It adopts stainless steel glue tank for rust avoiding, |
| single/ double side coating is available. |
| The Main Technical Parameters | |
| Max. Layers | 16 |
| Type of Glue-spread | Circle |
| Type of Paper Delivery | lateral |
| Main Power | 1.5 kw |
| Weight | 500 Kg |
| Overall Dimension(L x W x H) | 1300 x 1200 x 1700mm |
