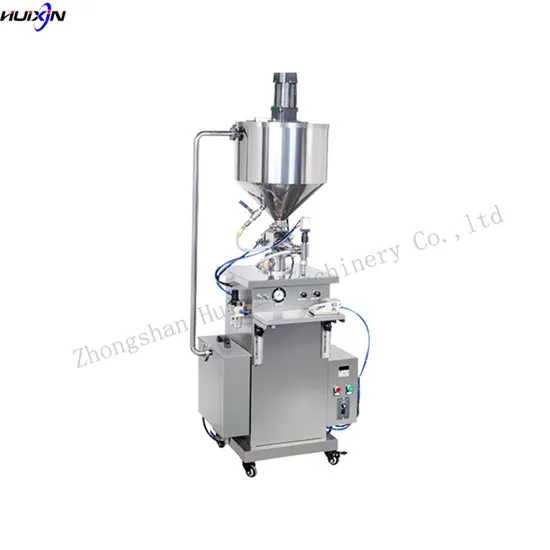

Semi Auto Filling Machine for Liquid Soap, Shampoo, Cream, Skin Cream Product

Product Description

liquid, cream, lotion, shampoo, skincream cream filling machine packing machine
Product Description
The machine is automatic production line to meet the requirements of automation,will improve the production efficiency and save the labor cost by 80%.This line will designed by URS,including the capacity,layout,process standards and any specific requirement.This line includes the bottle sorting machine,filling machine,capping machine, labeling machine,shrink sleeve machine.
Product Parameters The below parameter is for reference only. It can be customized according to clients' requirement.

Model	Filling volume	Filling precision	Air supply	Productivity
PFM-S-5	5-60ml	±0.2%	0.2-0.6Mpa	0-45bot/min
PFM-S-10	10-120ml	±0.2%	0.2-0.6Mpa	0-35bot/min
PFM-S-25	25-250ml	±0.2%	0.2-0.6Mpa	0-30bot/min
PFM-S-50	50-500ml	±0.2%	0.2-0.6Mpa	0-30bot/min
PFM-S-100	100-1000ml	±0.2%	0.2-0.6Mpa	0-25bot/min
PFM-S-250	250-2500ml	±0.2%	0.2-0.6Mpa	0-18bot/min
PFM-S-500	500-5000ml	±0.2%	0.2-0.6Mpa	0-12bot/min

Working principles Adopt single feed and return bottles photoelectric sensor, top feeding without one-way valve mechanical structure, filling nozzle drive by servo motor, down to the bottom of the bottle, filling while lifting, can be greatly reduce the bubble during filling, so as to improve the filling output. The servo motor drives the piston cylinder, to make its filling accuracy more accurate, and it is more convenient to adjust the filling volume, so as to ensure the machine's efficient and stable continuous production.
