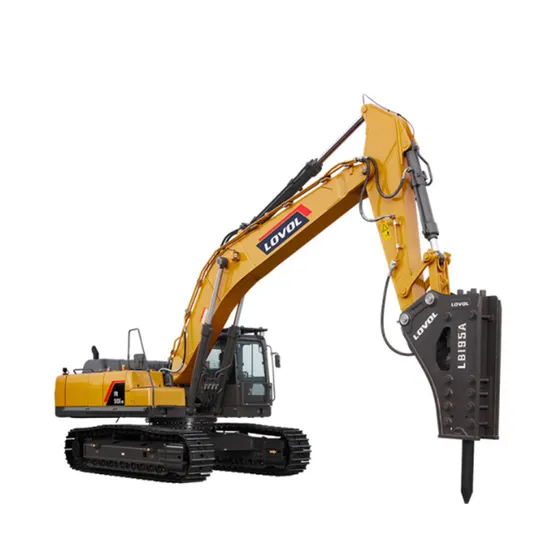

China Heavy Equipment Fr510e2-HD Excavator with 298kw 2.5m3 Rock Bucket and Hydraulic Pipe for Sale

Product Description

China Heavy Equipment FR510E2-HD Excavator with 298kw 2.5m3 Rock Bucket and Hydraulic Pipe for Sale
PRODUCT DESCRIPTION
FR510E2-HD excavator adopts hydraulic simulation technology, smooth circuit design, equipped with low temperature sensitive buffer valve, which improves the softness of the whole machine; independent cooling circuit, effectively reduces the oil return back pressure, making the operation more smooth.
Performance characteristics
high performance
The new generation of QSM11 engine imported from the United States, with a rated power of 298kW, is designed to provide strong power for mining operations. Its unique PT fuel control and injection technology is more accurate and fuel efficient than traditional electronically controlled high-pressure common rail technology.
Using hydraulic simulation technology, smooth circuit design, equipped with low temperature sensitive buffer valve, improve the softness of the whole machine; independent cooling circuit, effectively reduce the oil return back pressure, making the operation more smooth.
Adapt to different operating conditions in the temperature range of -40°C ~50°C;
Adapt to 5500m altitude plateau working conditions;
Adapt to high dust and harsh working conditions;
Cooperate with crushing device to meet the crushing operation of granite and other hard rocks. more reliable
The new large-capacity rock bucket adopts high-strength wear-resistant materials to increase the strength and wear resistance by 40%.
8-inch ultra-thin LCD display, the main page design of the space warehouse, high-end atmosphere. Using Apple mobile phone nine-square grid menu display mode, simple operation, from the original multi-layer structure to a flat structure, one key in place. Moreover, the basic menu information at the upper part of the page is frozen every time you switch, no need to query repeatedly.
Intelligent control system can realize a unified working platform equipped with buckets, breakers, rippers, rock arms, hydraulic shears and other attachments.

Machine parameters			Engine
Total length	mm	12253	model	Cummins/QSM11
Grounding length (transport)	mm	7398	Type	Air-to-air cooling, turbocharging
Total height (to the top of boom)	mm	3900	Rated power kW/rpm	298 /2000
Total width	mm	3340	Maximum torque N·m/rpm	1898 /1300
Total height (to the top of the cab)	mm	3260	Walking drive
Counterweight ground clearance	mm	1237	Maximum gradeability °	35
Minimum ground clearance	mm	550	Maximum walking speed km/h	4.6
Radius of tail gyration	mm	3800	Maximum traction kN	382
Track ground length	mm	4370	Maintenance filling capacity
Track length	mm	5357	Diesel fuel L	670
gauge	mm	2740	Total hydraulic oil of hydraulic system L	550
Track width	mm	3340	Hydraulic oil tank volume L	370
Track shoe width	mm	600	Engine oil L	38
Tooth height	mm	48	Engine coolant L	37.5
Machine cover height	mm	2348	Rotary reducer oil quantity L	14
Upper platform width	mm	3152	Travel reducer oil quantity L	2×13
Distance from the center of rotation to the back end	mm	3800	Hydraulic system
Maximum digging height	mm	10620	Maximum flow of main system L	760
Maximum unloading height	mm	7443	Working oil pressure mPa	35.3
Maximum digging depth	mm	7282	Maximum pressure of pilot system mPa	3.9
Maximum vertical digging depth	mm	6220	Slewing mechanism
Horizontal cutting 8′ maximum digging depth	mm	6360	Rotation speed r/min	9.5
Maximum digging radius	mm	11520	Rotating moment kN	159.3
Maximum digging radius on the ground	mm	11306	/
Minimum radius of gyration	mm	4962
Minimum radius of gyration	mm	4371
