Smart Metal Remote Control Aluminum House Audio Controller Air Purifier
| Negotiable | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
LPI-13A
Certification
CCC, CE, FCC, ISO9001, RoHS
Code Type
Fixed Code, Hopping Code, Learning Code, Rolling Code
Color
Black, Customized, Gray, Red, White, Yellow
Encode Mode
NEC, RC5, IR, RF, 2.4G
Frequency
Customized
Material
Metal
Transmission Distance
<50m
Type
Button
Universal
Not Universal
Voltage
3V
Customized
Yes
Battery
UL4200A-2023
Outcase
Aluminous Material
Transport Package
Bulk
Specification
121x36x10mm
Trademark
customized
Origin
China
HS Code
8543709990
Production Capacity
50000PCS/Month
Product Description
OEM IR/RF remote control,Controlo remotoApply: TV, AUDIO,SPEAKER, LIGHT, MUSIC, MEDIA, DIMMER, AUTO PARTS, AIR PURIFIER ,HEATER, THREADMILL...

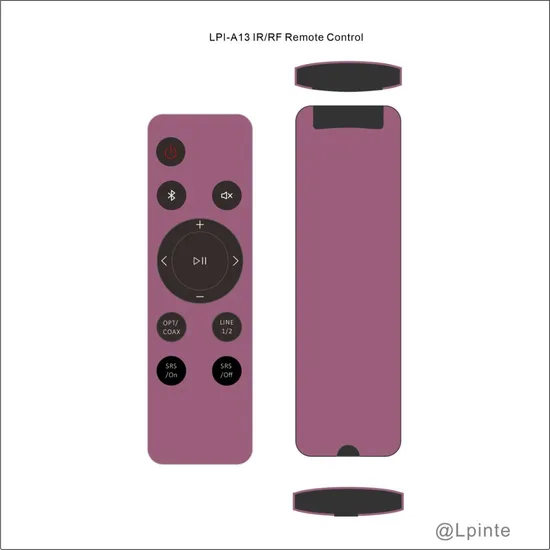

Specification: LPI-A13
| LPI-A13 | |||
| Small form factor remote control | |||
| Aluminum shell | |||
| Remote Controller | IR, RF, 2.4G | ||
| Application: audio,speaker, light, | |||
| OEM & ODM are welcome | |||
| Specifications | |||
| Number of keys | 1-13 | ||
| Dimensions | 121x36x10mm | ||
| Case | Aluminum alloy | ||
| Buttons Type | metal dome, plastic | ||
| Textplate | YES | ||
| Weight (incl. batteries) | 35.5g | ||
| Battery | DC3.0V/CR2032 |
Battery: CR2032 brand long lifespan
Keys: From 6 to 13 max
Your artwork/logo, OEM available.
IC Protocol: Normal standard NEC format, 38kHz. IR, RF, 2.4G
Or programmed code system
Contact us now for your own design to envalue your products.
Small order acceptable
OEM/ODM are welcome.
Regular Parameter data:
1, Operation Force:
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2, Key Stroke:
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3, Straight Distance:
IR remote control distance up to 15 meters
RF remote control up to 30 meters
4,IR Receiver Direction:Up Down Left Right Direction 15degree at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms
