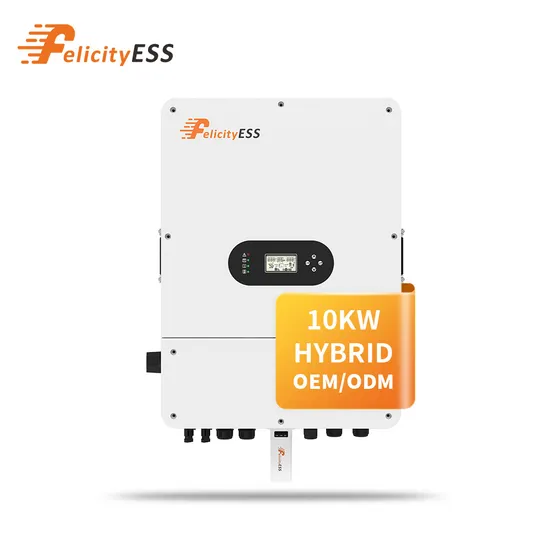

FelicityESS 10kw on off Grid High Frequency Inverter Hybrid Solar with MPPT Controller Technology IP65 Protection

Product Description

FelicityESS 10kw on off Grid High Frequency Inverter Hybrid Solar with MPPT Controller Technology IP65 Protection
BECOME FELICITY NEWENERGY DEALER
0 Inventory, 0 Cost Investment, 0 Risk
FelicityESS- Top 100 Global Energy Storage Product Brands
1.4 Billion Annual Output Value
100+ Global Patented Technologies
30+ Global Branches
100+ Senior Experts and Professional Technical Talents in New Energy
Product Description
Product Parameters

Model	T-REX-10KLP3G01
Battery Input Data
Battery Voltage Range	40V~60V
Max.charging and discharging current	200A/200A
Max.charging and discharging power	10000W
Battery type	Li-lon/Lead-acid
DC Input Data(PV side)
Max.recommended PV power	13000W
Max.PV voltage	900V
Start voltage	180V
PV voltage range	160V-900V
MppTvoltage range	200V-850V
MppT Voltage Range forFullLoad	450V-850V
Nominalvoltage	720V
Max.input current	15A/15A
Max.shorted current	18A/18A
Numberof MPp trackers/strings per MPP tracker	2/1
Grid Data
NominalInput Voltage	L1/L2/L3/N/PE,230/400Vac
Input Voltage Range	184-264.5Vac*
Nominalgrid frequency	50/60Hz
Max.input current	30A
Max.Charge Current	30A
Max.AC output power	10000W
AC Output Rated Current	14.5A
Max.Output current	18A
Max.Continuous AC Passthrough	30A
Power Factor	>0.99
Displacement power factor	0.8leading.0.8lagging
THDI	<3%
AC Output Data(BackUp)
Rated output power	10000VA/10000W
Max.Output current	30A
Rated AC output voltage	L1/L2/L3/N/PE,230/400VaC
Rated AC output frequency	50/60Hz
Efficiency
Max.efficiency	97.6%
Euro efficiency	97.0%
MPpT efficiency	99.9%
Protection
Output over current protection	Integrated
Output over power protection	Integrated
Output shorted protection	Integrated
Anti-islanding protection	Integrated
GFCI Protection	Integrated
Insulation Resistor Detection	Integrated
GeneralData
operating temperature range	-25°C~60°C,>45°CDerating
Protection degree	P65
Relative humidity	100%
Cooling concept	Smart cooling
Altitude	2000m
Communication	RS232/RS485
BMS Communication	CAN/RS485
Monitor module	WiFi/GPRS
Display	LCD+LED
Installation Style	Wall-mounted
Warranty[1]	10years
Grid Regulation	VDE-AR-N4105;G99/1;EN50549-1;CEI-21;AS4777.2;NRS097-2-1
Safety Regulation	IEC62109-1/2IEC62040-1
EMC	EN61000-6-1.EN61000-6-3
Net Weight(KG)	38.9KG
Gross Weight(KG)	47.1KG
Product Dimension(MM)	655*475*266MM
Package Dimension(MM)	792*597*351MM

Certifications
Company Profile
FelicityESS New Energy Technologies is a leading, inverter manufacturer and energy system integrator with17 years of experience. With a 40,000 square meter facility and more than 1,000 employees, the company hasmore than 30 offices around. Our prod!sfotoucts include home energy storage batteries, all-in-svstems andsolar inverters.Our products offer flexibleenergy conversion, eficient storage solutions forhomes ana businesses
Our Factory
Packaging & Shipping
Our Exhibitions

FAQ
Q1: How to install and use the solar inverter?
A1: We provide an English manual and videos. All videos covering every step of machine disassembly, assembly, and operation will be sent to our customers.
Q2: What if I don't have export experience ?
A2: We have over 30 overseas offices and warehouses that can ship items to you by sea, air, or express delivery. We will help you choose the most suitable shipping service.
Q3: How is your technical support?
A3: We have over 30 offices overseas with professional technical engineers and sales teams stationed year-round. They can address your pre-sales and post-sales issues. If any problem arises after delivery, we can send technical engineers to assist you. You can also contact us online via WhatsApp, Skype, WeChat, or email.
Q4: Can you customize the solar inverter for us?
A4: Of course. We offer customization for product specifications, brand name, machine color, and unique design patterns.
Q5: How can I become your agent?
A5: Contact us, and we will provide details about our dealer program.
Q6: What is the warranty for the inverter?
A6: 10 years.
