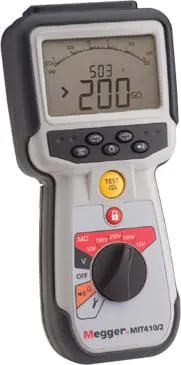

Megger Mit415/2 Insulation and Continuity Tester

Product Description

Product Parameters
MIT415/2-LG2 (EN ES PT IT) Insulation and Continuity Tester 10/25/50/100/250/500V 600 V CAT IV PI and DAR with Language Group LG2 - English, Spanish (European), Portuguese and Italian
10 V and 100 V ESD testing25 V & 50 V signal cable insulation testing250 V & 500 V Insulation testing up to 50 GΩ (500 V)Continuity testing at 200 mA or 20 mA from 0.01 Ω to 999 kΩDC and TRMS AC voltage measurementLarge backlit displayCombined analogue and dual digital readoutWeatherproof to IP54Supplied with AA alkalineDescriptionMegger MIT415/2 - Insulation and Continuity Tester Designed for Electrical and Industrial testingInsulation testing up to 1000 V and 200 GΩ rangeStabilized insulation test voltageSingle range, faster continuity testing from 0.01 Ω to 1 MΩ600 V Trms AC and DC voltage measurementThe Megger MIT415/2 insulation and continuity tester has been designed for electrical testing by utilities, industrial, commercial and domestic electricians. The wide range of test voltages makes the MIT415 series ideal for the engineer or technician involved with combined applications of both communications circuits and power circuits such as would be found in elevator service/repair and routine maintenance. The low test voltage insulation ranges also makes the MIT415 ideal for ESD testing.
The MIT415/2 and MIT417/2 insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.
Continuity testing is now significantly faster, and a single auto- ranging 0.01 Ω to 1.0 MΩ function replaces the "ohms" and "kOhms" ranges. Retained are the 200 mA and 20 mA test options.
Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.
Model applicationsThese models include all the features required for electricians, technicians and engineers working in a range of industries. Available features are selected to make testing easy and fast in a range of situations.
Building/Campus electrical maintenanceLarge and small scale electrical installationsPeriodic electrical systems inspection and testingCable testingFeatures and BenefitsCAT IV 600 V rating - provides greater safety when testing at higher voltage levelsAdjustable insulation test voltages - provides 250 V to 1000 V or 50 V to 1000 V. The special applications instrument (Model MIT40X) offers test voltages from 10 V to 100 V in 1 V steps.Dual digital display readout - allows display of complimentary test information simultaneously (for example: M½ plus test voltage or M½ plus leakage current)Digital and analog arc display - includes not only the digital readout but also Megger's patented analog arc to replicate the response of a moving coil displayExceptional measurement range from 20 G½ to 200 G½ - highest insulation test range available on the market, providing a superior range of measurement applications.Choice of 20 mA or 200 mA continuity testing - allows user to select lower continuity range thus increasing battery life considerablyContinuity auto-test capability - enables real twohanded operation without the need to press the test buttonAdjustable continuity limit alarm - allows pass/fail limits to be sent to speed testingAutomatically perform PI and DAR tests - user is able to quickly perform two important diagnostic tests. . . Polarization Index (PI) and Dielectric Absorption Ratio (DAR)True RMS voltage measurement - allows accurate voltage measurement on noisy linesAuto ranging voltage measurement - automatically adjusts range from millivolts to 600 V AC or DC,eliminating the need to keep changing rangingLive circuit warning - automatically warns of contact to a live circuit, voltage is displayed and testing is inhibitedAuto fuse warning - warns of fuse failure automatically.No need to test the fuse manually.Buzzer select button - enable or disable buzzer as required with resistance also displayed on the screenBaker's Dozen Reasons to Buy the MIT400 Series - 13 "sweet" reasons why the MIT's are far superior to those other brands:Patented analog/digital display with real-time pointer movement.IP54 ingress protection ratingCAT IV 600 V for all test modesHighest resistance range (up to 200 GO) on the market for a hand-held unitDual digital display that shows test voltage (or other complementary information) as well as the measurement resultSelectable 200 or 20 mA continuity testDAR, PI and timed test capabilityTRMS voltage measurementSelectable buzzer thresholds/limit alarmsUnique silicon test leads to improve measurement accuracyAutomatic fuse check/warning3-year warrantyBacklight displayIn The BoxHard carry caseRed/black test lead set with clips6 AA (LR6) batteries fittedWarranty cardFactory (non-NIST) Calibration CertificateOwners CD manualQuick start guideSP5 remote switched probeManuals/GuidesManualsMegger MIT400-2 Series User ManualSpec SheetsMegger MIT4002 Series 1-KV Insulation Test Equipment - Data SheetApplication NotesMegger Insulation Resistance Testing of Heat Trace Cable Application NoteManufacturer Specs

Specifications
Insulation
Insulation Nominal test voltages	10 V, 25 V, 50 V, 100 V, 250 V, 500 V
Insulation resistance range	10 V - 1 GΩ 25 V - 2 GΩ 50 V - 5 GΩ 100 V - 10 GΩ 250 V - 20 GΩ 500 V - 50 GΩ
Range Full Scale Accuracy	500 V ±3% ±2 digits ±0.4% per GΩ 250 V ±3% ±2 digits ±0.8% per GΩ 100 V ±3% ±2 digits ±2.0% per GΩ 50 V ±3% ±2 digits ±4.0% per GΩ 25 V±3% ±2 digits ±2.0% per 100 MΩ 10 V±3% ±2 digits ±2.0% per 100 MΩ
Analogue range	1 GΩ full scale
Resolution	0.01 MΩ
Short circuit current	2 mA +0% -50%
Open circuit terminal voltage	-0% + 20% ±1 V
Test current on load	1 mA at min. pass value of insulation specified in BS7671, HD384and IEC364, 2 mA max.
Leakage current range	0 µA 2000 µA
Leakage current	10% ±3 digits
Voltage display	3% ±3 digits ±0.5% of rated voltage
Timer	1, 2, 3, 4, 5, 6, 7, 8, 9, 10 minute count down in seconds
Continuity
Measurement	0,01 Ω to 99,9 Ω (0 to 100 Ω on analogue scale)
Accuracy	±2% ±2 digits (0 to 100 Ω )
Open circuit voltage	5 V ±1 V
Test current	200 mA (±1 mA) (0.01 Ω to 9.99 Ω )20 mA (±1 mA ) (10.0 Ω to 99.9 Ω )
Zero offset at probe tips	0,10 Ω typical
Lead resistance zeroing	Up to 9.00 Ω
Buzzer	Variable limit 1 Ω , 2 Ω , 5 Ω , 10 Ω , 20 Ω
Resistance
Measurement	0.01 kΩ to 1000 kΩ (0 to 1 MΩ on analogue scale)
Accuracy	±3% ±2 digits
Open circuit voltage	5 V ±1 V
Short circuit current	20 µA ±5 µA
Other
Voltage range	0 to 600 V d.c. ±2% ±2 digits 10 mV to 600 V TRMS sinusoidal (40 to 400 Hz) ±2% ±1 digit 0 to 1000 V on analogue scale Unspecified input level 0 - 10 mV (40 to 400 Hz)
Temperature coefficient	<0,1% per °C up to 1 GΩ <0,1% per °C above 1 GΩ

Tech SpecsMicro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers TemplateIR Test VoltageMaximum Insulation ResistanceAutomated Test ResultsTypeMinimum Insulation ResistanceVariable Incremental VoltageDisplay (Megohmmeter)Continuity TestLive Circuit Voltage DetectionPower SupplyTimerCAT RatingCAT VoltageTest Equipment General AttributesUnique FeaturesWarrantyWarranty DetailsSafety ApprovalIP RatingProduct WeightProduct HeightProduct LengthProduct WidthShipping WeightData LoggingHTS/Schedule B NumberECCN NumberCalibration IncludedBattery TypePower Supply VoltageCountry of OriginShipping HeightShipping LengthShipping Width

1,000 V, 100 V, 250 V, 50 V, 500 V

200 G Ohms

Dielectric Absorption Ratio, Dielectric Discharge, Leakage Current, Other, Step Voltage

Battery

0.01 Ohms (0.00000000001 G Ohms)

Yes

Analog, Digital, Graphical

Yes

Yes

Battery

Yes

IV

600 V

True RMS voltage measurement - allows accurate voltage measurement on noisy lines Auto ranging voltage measurement - automatically adjusts range from millivolts to 600 V AC or DC, eliminating the need to keep changing ranges Live circuit warning - automatically warns of contact to a live circuit, voltage is displayed and testing is inhibited Auto fuse warning - warns of fuse failure automatically. No need to test the fuse manually. Buzzer select button - enable or disable buzzer as required with resistance also displayed on the screen

3 YEARS

Years 2 and 3 require free registration of the unit.

CE

IP54

27.22 OUNCES (1.70 LBS)

2.32 IN

9.00 IN

4.25 IN

32 OUNCES (2 LBS)

No

9030.31.0000

EAR99

Factory Calibration

AA

Battery Powered

United Kingdom

5 IN

20 IN

9 IN
