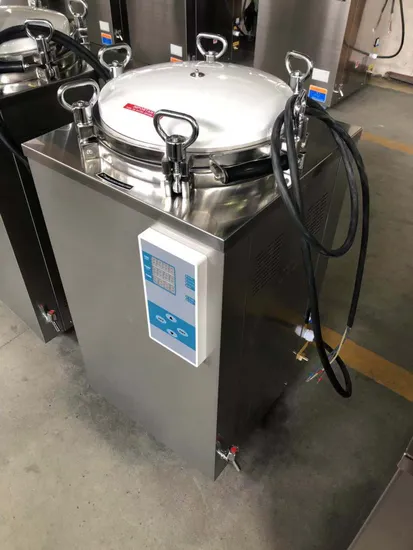

75L Vertical Steam Sterilizer, Medical Autoclave (LS-75LD)
| US$900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LS-75LD
Certification
CE, EEC, ISO13485
Electric Tension
220V
LCD Display
LED Display
Ultra High Temperature Alarm
Ultra High Temperature Alarm
Sterilization Information Recording and Printing
Sterilization Information Recording and Printing
Material
Stainless Steel
Product Name
Vertical Steam Sterilizer
Sterilizing Volume
75L
Working Pressure
0.1~0.22 MPa
Timer
0~99min
Working Temperature
120~134 Degree
Power Supply
4.5kw/AC22V 50Hz
Dimension
560 X 560 X 980 mm
Package Dimension
650 X 630 X 1150 mm
Gw / Nw
90 / 70 Kg
Warranty
12 Months
Lead Time
Within 7 Working Days
Transport Package
Strong Packing
Specification
CE ISO TUV
Trademark
PIOWAY
Origin
China
HS Code
8419200000
Production Capacity
10000 Units/Month
Product Description
75L Vertical Steam Sterilizer, Medical Autoclave (LS-75LD)Use
The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Characteristics
1. Fully stainless high-alloy steel structure
2. Digital display of working status, touch of key
3. Manual or semi-automatic control
4. Auto discharge the cool air, and steam discharging automatically after sterilization
5. Automatically shut off with beep reminding after sterilization
6. The accident protection system
7. Automatic off of heating elements at reducing of a water level
8. Blocking top cover at working
9. Blockage of starting at opening
10. Heater protection sensor
11. Pressure and water level control
12. With three stainless steel sterilizing baskets
13. Easy to operate, safe and reliable
14. The drying system is optional for 120L and 150L size
Different Models
| Model technical data | LS-35LD | LS-50LD | LS-75LD | LS-100LD |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
| working pressure | 0.1-0.22MPa | |||
| Working temperature | 120-134 ºC | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1 ºC | |||
| Timer | 0 ~ 99min or 0 ~ 99hour59min | |||
| Adjustment of temperature | 105 ~ 134 ºC | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw /AC220V.50Hz | 4.5KW AC220V.50Hz | |
| Overall dimension | 480×460×850(mm) | 520×520×980(mm) | 560×560×980(mm) | 590×590×1080(mm) |
| Transport dimension | 570×550×970(mm) | 590×590×1110(mm) | 650×630×1150(mm) | 680×650×1220(mm) |
| G.W/N.W | 56Kg/ 42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg |
Detailed Images
Our Workshop
