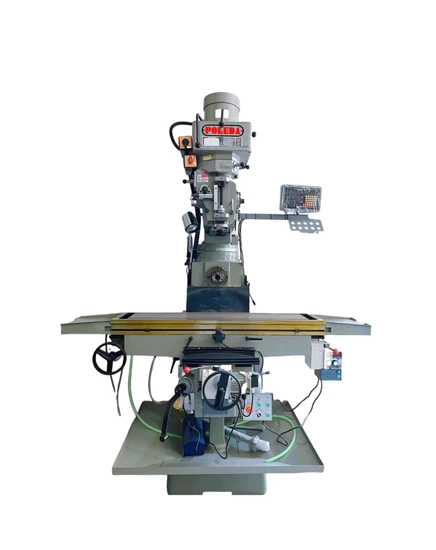

High Precision Nt40 Spindle Vertical Horizontal 6hv Universal Milling Machine

Product Description

Product Description
Characteristics of Vertical and Horizontal Milling Machine
Versatile Spindle Adjustment: The vertical and horizontal dual-purpose milling machine boasts a flexible spindle axis, effortlessly adaptable to varying processing demands. This feature not only enhances compatibility across diverse scenarios but significantly elevates processing efficiency.
Unmatched Power and Versatility: The innovative spindle axis variability empowers our vertical and horizontal dual-purpose milling machine with unparalleled functionality. Its capability to process surfaces at multiple angles to the horizontal plane addresses an extensive array of processing requirements with ease.
Exceptional Adaptability: This dual-purpose milling machine excels in executing a multitude of complex tasks. Whether it's plane, surface, or specialized angle processing, simply adjust the spindle direction to meet the challenge head-on.
Enhanced Production Efficiency: A single installation enables this advanced milling machine to process multiple surfaces by merely altering the spindle direction. This strategic reduction in workpiece repositioning time translates to remarkable improvements in production efficiency.
Effortless Operation: Despite its formidable capabilities, the vertical and horizontal milling machine prioritizes user-friendly operation. Seamlessly switch between modes through straightforward controls to accommodate your specific processing needs.
Product Parameters
Structural Characteristics of Vertical and Horizontal Milling Machine
First, the Bed Structure
Engineered with a robust double-column design, the bed of our milling machine guarantees exceptional strength and rigidity, ensuring both precision and stability. Equipped with a sliding bed, it adeptly supports the table and spindle, minimizing vibration and noise for superior performance.
Second, Workbench Structure
The workbench stands as a pivotal element, securing workpieces with precision. Designed with a convenient T-slot for effortless clamping, it offers multidirectional movement-horizontal, vertical, and even rotational-for seamless bevel machining.
Three, the Main Shaft Structure
The spindle, adaptable in vertical or horizontal configurations, features a versatile tool clamping system with chuck or tool handle options. High speed and torque capabilities cater to diverse machining needs, complemented by an integrated cooling system for optimal tool and workpiece temperature management.
Four, Feed System
An integral component, the feed system comprises a feed shaft, servo motor, and guide rail. This system orchestrates precise tool movement in both horizontal and vertical planes, driven by a servo motor for unmatched precision and speed. The guide rail assures stability, guaranteeing an accurate machining process.
Fifth, Structural Advantages
The vertical and horizontal milling machine is a marvel of compact design, delivering powerful functionality and a broad application scope. Its high accuracy and automation level promote efficient processing while reducing manual effort, saving both time and resources.

Product name	Vertical and horizontal milling machine
Product model	6HV
Product technical parameters
dimension	Table size	1372*330MM
	Table load	350KG
journey	Left and right travel (X)	1000MM
	Forward and backward travel (Y)	420MM
	Up and down travel (Z)	380MM
Vertical spindle coefficient	Spindle taper	NT40
	Distance from spindle to table	150-530MM
	Spindle speed	80-5440RPM
	Spindle lift stroke	127MM
	Spindle horse power	5HP
	Arm reach	600MM
Transverse spindle coefficient	Horizontal shaft motor power	2.2KW
	Transverse spindle speed	60-1320RPM
	Transverse spindle taper	NT40
	Transverse spindle travel	120
	Bracket center height	230
Machine profile dimensions	T-slot (width * Slot number * slot distance)	16MM*3MM*65MM
	Milling head tilt Angle	45 front/back side
	Machine size (L * W * H)	2200*2000*2500MM
	Approximate machine weight	2500kgs
	Accessories name and specification	quantity
Standard parts for machine tools	1.Hand oil pump	1
	2.Work light	1
	3.Organ board + protective glue	1
	4.Vertical NT40 tie rod, horizontal NT40 tie rod	1
	5Tools and toolboxes	1

Special parts for machine tools	6.Two axis electronic ruler	1
	7.X-axis automatic feed	1
	8.6 "flat pliers	1
	9.58 piece composite platen	1
	10.NT40 cable nozzle	2
	11. Operation instructions	1
	12.Z axis lifting motor	1
