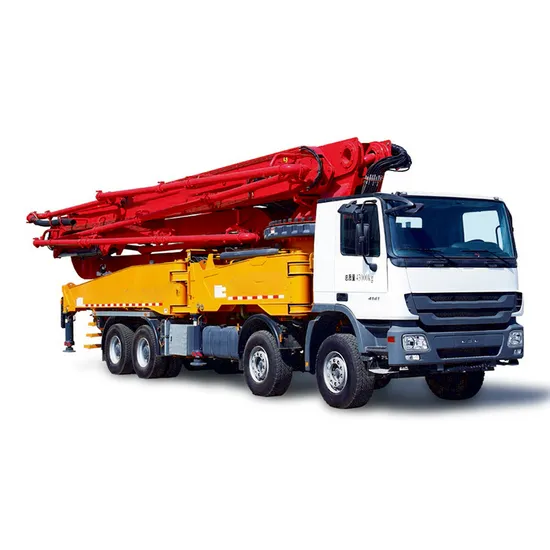

New 60m Concrete Pump Truck Hb60K

Product Description

New 60m Concrete Pump Truck Hb60K
Product Description
ONE BUTTON STABILIZATION TECHNOLOGYNo matter how much vibration the boom incurs after being moved, only one button can make the boom stop steadily and immediately. Meanwhile, the terminal hose will exercise quick and precise positioning.BOOM ANTI-VIBRATION TECHNOLOGYEffectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.ENERGY-SAVING TECHNOLOGYWith reversing times hitting 29 times/minute (when the system pressure is 12MPa). Pumping efficiency, an increase of up to 25%, and fuel consumption, a decline of up to 10%.ANTI-SWING CONTROL TECHNOLOGYAdopt the brand-new rotary braking technology, and the boom's rotary swing amplitude decreases by 60%, which helps realize unprecedented precise braking.
SMART BOOM SYSTEMPeople-oriented intelligence and sophisticated technology make the truck-mounted concretepump operation more human-centric and convenient.One-button boom extension and retractionOne-button extendable arm pushes upwards or downwards the automatic arm switch to extend or retract the boom automatically.Limit the operation heightIn the event of indoor construction or outdoor construction with upper obstacle, this function can effectively prevent the boom from touching the top and suffering damage.Locate the boom postureEasily locate the first and second section's position, and greatly simplify the boom operation.
Product Parameters

Category	Item	Unit	HB75K
Chassis	model		Actros6555
	Manufacturer		Daimler AG
	Wheelbase	mm	1700+1750+4950+1350+2000
Engine	Output Power	kw/(r/min)	405
	Exhaust emission standards		National IIII
Machine	Dimensions	mm	16600×2500×4000
	Maximum total mass	kg	64000
Operating Status Main technical parameters
category	Item	unit	HB75K
Pumping system	Theoretical delivery	m³/h	180
	Pumping concrete pressure	Mpa	8
	Theoretical pumping times	r/min	21-23
	Feed cylinder diameter * travel	mm	Φ260*2200
	Feeding height	mm	1400
Cloth bar	structure type		7RZ
	The material bar is reachable with height / depth / radius	m	74.2/55.3/69.7
	Cloth rod rotation angle	°	370

Detailed Photos
