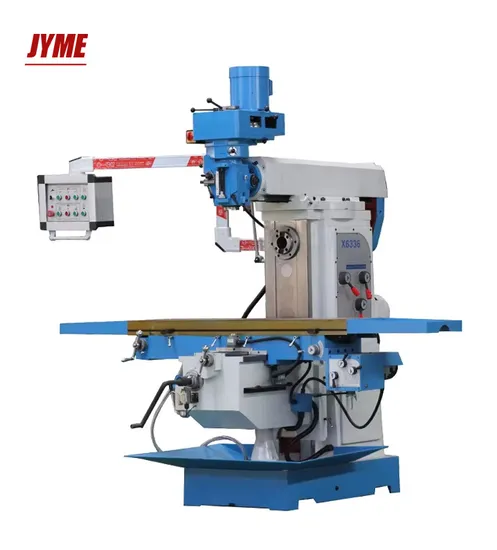

X6336 China Vertical Horizontal Second Hand Universal Milling Machine for Sale
| US$9,200.00-9,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6336
Power Source
Manual
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Taper
Nt 40(Vertical) Nt 50(Horizontal)
Spindle Travel
127mm
Sleeve Feed
0.04/0.08/0.15mm/R
Distance From Vertical Spindle to Column
200-600mm
Distance From Vertical Spindle to Table
180-530mm
Distance From Horizontal Spindle to Tabl
0-350mm
Distance From Horizontal Spindle to Arm
230mm
Spindle Speed Range
66-4540/16(Vertical) 60~1800/12(Horizontal)
Table Size
1370×360/1500*360mm
Table Travel
1000×320×400mm
Range of Longitudinal,Cross Travel
15~370/(Max.540)mm/Min
up/Down Speed of Table
590mm
T of Table(N0./Width/Distance)
3/18/80mm
Main Motor
3.7/4 Kw
Overall Dimension
2600*2100*2300mm
Transport Package
Wood CTN
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
The product is easy to operate and reliable. Available for all kinds of cylindrical milling cutter, milling cutter, angle cutter, milling cutter and face Various plane, inclined plane, groove, etc.. If the use of appropriate milling machine accessories, can be processed gear, cam, arc groove And other special shaped parts, such as the spiral surface, the configuration of universal milling head, round table, the worktable size of the machine can be further expanded,Large machine tool use range, according to user needs can be configured to display device.
Parameters:
| pecification | Unit | X6336 |
| Spindle taper | | NT 40(VERTICAL) NT 50(HORIZONTAL) |
| Spindle travel | mm | 127 |
| Sleeve feed | mm/r | 0.04/0.08/0.15 |
| Distance from vertical spindle to column | mm | 200-600 |
| Distance from vertical spindle to table | mm | 180-530 |
| Distance from horizontal spindle to table | mm | 0-350 |
| Distance from horizontal spindle to arm | mm | 230 |
| Spindle speed range | r/min | 66-4540/16(vertical) 60~1800/12(horizontal) |
| Table size | mm | 1370×360/1500*360 |
| Table travel | mm | 1000×320×400 |
| Range of longitudinal,cross travel | mm/min | 15~370/(MAX.540) |
| Up/down speed of table | mm | 590 |
| T of table(N0./WIDTH/DISTANCE) | mm | 3/18/80 |
| Main motor | kw | 3.7(optional:7.5HP )(vertical)4(horizontal) |
| Motor of table power feed | kw | 0.75 |
| Up/down motor of headstock | kw | 1.1 |
| Coolant pump motor | kw | 90 |
| Speed of coolant pumps | L/min | 25 |
| Overall dimension | mm | 2600*2100*2300 |
| N.W./G.W. | kg | 2500/2700 |
