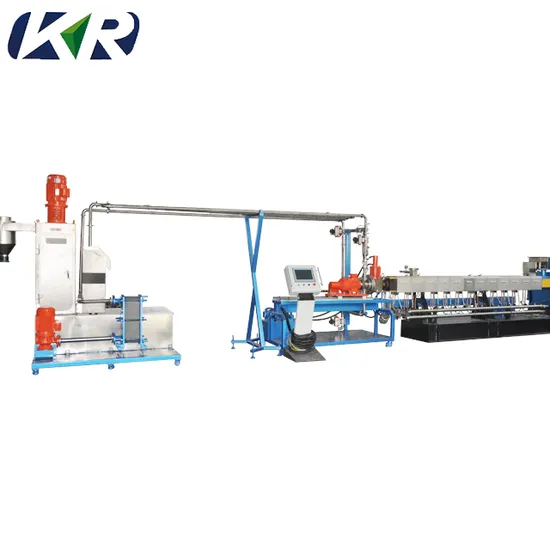

TPE TPR EVA PE Compound Production Hot Melt Underwater Pelletizing Line

Product Description

Description:
The machines are designed by suing the "toy bricks" principle, the screw configuration, barrel setup, L/D or mode
of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted
according to different materials properties and requirements in consideration of the versatility in each general
applications.
Co-rotating parallel twin-screw extruder is widely used in general plastic, engineering plastic and thermal plastic
rubber, etc polymer materials such as filling, reinforcing, toughening, etc blending modification, as well as the
special fiber and special adhesive, etc processing fields
Plastic pellet machine extruder Parameter

Mode	Diameter(mm)	L/D	Rotating speed	Power(kw)	Capacity(kg/h)
			(r/min)
TSE-20	22	32-44	600	5.5	0.5-10
TSE-30A	31	32-48	500	11	5-30
TSE-30B			600	15	5-40
TSE-35A/B	35.6	32-52	600-800	15-22	30-70
TSH-35B	35.6	32-52	600-800	15-22	30-70
TSE-40A	41	32-64	400	22	100-120
TSE-40B	41	32-52	600	30	100-160
TSH-40B	41	32-52	600	45-55	150-220
TSE-50A/B	50.5	32-52	500	45-55	180-270
TSH-52B	51.5	32-60	600	90-132	682
TSE-65B	62.4	32-64	600	90	250-350
TSE-65C	62.4	32-64	600	110	300-400
TSH-65B	62.4	32-64	600-800	110-160	350-500
TSE-75B	71	32-64	600	132	350-550
TSE-75C	71	32-64	600	160	400-600
TSH-75B	71	32-64	600-800	200-250	600-800
TSE-95A	93	32-64	500	250	600-1000
TSE-95B	93	32-64	600	315	800-1200
TSH-95B	93	32-64	600-800	400-450	1200-1600
TSE-135A	1333	32-64	500	550	1500-2250

Characteristics and spare parts of the extrusion machine1.The gearbox· New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.2.The feeding system· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.3.Screw · The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.4.The barrel · Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.5.The heater· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.6.Pelletizing· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.Work Line
FAQ: 1. Q: How can we go to your factory?
R:Our factory is located in Nanjing jiangning, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company
2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company
All our clients, from domestic or abroad, are warmly welcome to visit us!
2. Q: Why chose us?
R: 1)Quick reply. Once we received the inquiry from ******, we will reply you within 24hours.
2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60days.
3) Before delivery, the machine will be tested to ensure every part is ok.
4) Wooden case package to ensure no damage during shipping.
3.Q:What is the payment?
R: 1) T/T payment; 2) LC;
