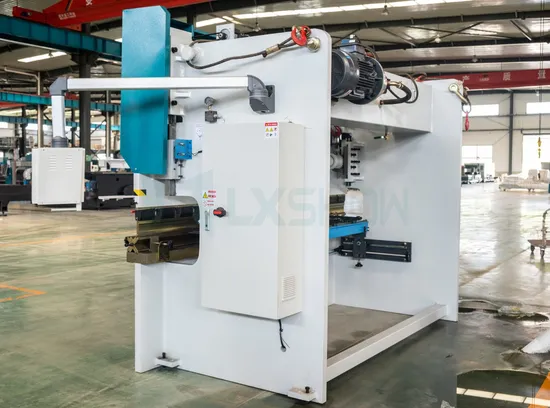

Lxshow Steel Sheet Plate Metal Electric Bending Press Brake

Product Description

Product Description
High Efficiency CNC Bending Machine for Sheet Metal Bend
•Complete steel-welded structure, with sufficient strength and rigidity;
•Hydraulic down-stroke structure, reliable and smooth;
•Mechanical stop unit, synchronous torque, and high precision;
•The backgauge adopts the backgauge mechanism of the T-type screw with smooth rod, which is driven by a motor;
•Upper tool with tension compensating mechanism, In order to guarantee high precision of bending;
•TP10S NC system;
Product Parameters
Technical Specifications
Product Details
Standard ConfigurationCNC System:TP10 Touch Screen• Support angle programming and depth programming switching
• Support settings of mold and product library
• Each step can set opening height freely
Upper Tool Fast Clamp
·Upper tool clamping device is fast clamp
Multi-V Bottom Die Clamping(option)
·Multi-V bottom die with different openings
Backgauge
·Ball screw/liner guide are high precision
Front Support
·Front support moves along linear guide, hand wheel adjust the height up and down
·Aluminium alloy material platform ,attractive appearance, and decrease scratch of workpicec.

Optional Parts
Crowning Compensation for Worktable
· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
·The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
Quick Change Bottomm Die
·Adopt 2-v quick change clamping for bottom die
Lasersafe Safety Guard
·Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
· Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers;three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.
Mechanical Servo Bending Help
· When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.
· Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning
·Support platform can be brush or stainless steel tube, according to workpiece size,two supports linkage movement or seperate movement can be chosed.
Show
Sample Show
Bending Mold Show
Company Profile
* About Jinan Lingxiu Laser Equipment Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia, Africa etc, more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.
At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall bechanged free of charge(some parts will be maintained) when if any problem during the warranty period. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.
