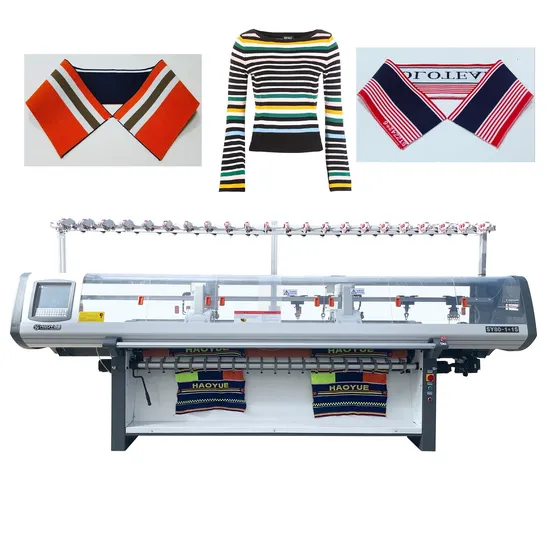

14gauge 80inch 2heads Collar & Sweater Knitting Making Machine
Basic Info.
Model NO.
SY80-1+1S
Knitting Machine Cut
14G
Knitting Product Type
Collar
Knitting Style
Flat
Knitting Method
Double
Needle Style
Bearded Needle/Spring Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE
Condition
New
After-sales Service
Video Technical Support/on-Site Technical Support
Knitting Function
Professional Fully Jacuard
Knitting Width
80 Inch(52-80inch)
Gauge
14gauge(12-18gauge)
Knitting System
Single/Double System
Control System
Hengqiang/Raynen/Maihong System
Transport Package
Wooden Case
Specification
3800*1050*1800MM/950KGS
Trademark
HAOYUE TEXTILE INDUSTRY
Origin
China
HS Code
8447202000
Production Capacity
500sets/Month
Product Description
Product Description| NINGBO HAOYUE COLLAR & SWEATER KNITTING MACHINE The single-system flat knitting machine with milling type needle bed. Insert type needle bed(optional). This series adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns (full needle, single side, Etc.), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting sweaters, collar and clothing accessories. |
COLLAR & COLLAR & SWEATER KNITTING MACHINESWEATER KNITTING MACHINE
| COLLAR & SWEATER KNITTING MACHINE |
| Single carriage | Double carriage |
Detailed Photos
| Single carriage display | Double carriage display | HQ control system |
| Single carriage | Double carriage | Common needle bed |
| 3 feeders rail | 4 feeders rail(Optional) | Needle bed with transfer |
| Full cam motorized carriage | High roller | Sub roller |
| Main&Rack motor | Roller Motor | Start, Turn off, Power button |
| Motorized color-changing | Super-sensitive automatic reset probe | LYCRAYARN device |
| Yarn storage device | Positive yarn feeder | Free spare parts |
Machine Paramenters
NINGBO HAOYUE brand Collar & Sweater knitting machine Can make high definition collar, sweater, carpet, muslim cap, beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl.
| Gauge | 12G,14G,16G |
| Knitting width | 52,60,80,100,120 Inch |
| Knitting system | Single system Double carriage 1+1 system(optional) |
| Knitting speed | Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s. |
| Knitting function | Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns. |
| Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. |
| Stitch density | Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Dynamic stitch | Using high speed stepping motor, multi-stitch function can be achieved in one line. |
| Needle selection | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.which can be installed or removed simply from the carriage and maintained easily. |
| Transfer system | Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high production. |
| Quickly turning | Intelligent switching braiding system improves machine weaving efficiency. |
| Take-down system | Machine With high roller and sub roller, Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between0-100. |
| Color-changing system | 2×3 yarn feeders on each side of 3 guide rails, shift able on any needle position. |
| Yarn feeder device | Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality. |
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system | 1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc. |
| Network function | Has network interface,enable remote-monitoring via network,and connecting with ERP system. |
| Power supply | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. |
| Non waste yarn Comb device | Non waste yarn Comb device(Optional) |
| Volume and weight | 2500*900*1700mm,700kgs(52inch) 3800*900*1700mm,950kgs(80inch double carriages) |
Packaging & Shipping
| Model | Knitting Width | Machine Package Size(MM) | Gross Weight(KGS) |
| SY52-1S | 52 Inch | 2500*1050*1800 mm | Aroun 700 kgs |
| SY60-1S | 60 Inch | 3100*1050*1800 mm | Aroun 800 kgs |
| SY80-1+1S | 80 Inch | 3800*1050*1800 mm | Aroun 950 kgs |
Knitting Samples
Company Introduction
| NINGBO HAOYUE is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception. |
