Intelligent Travel Filter to The Textile Industry Filter Industry

Product Description

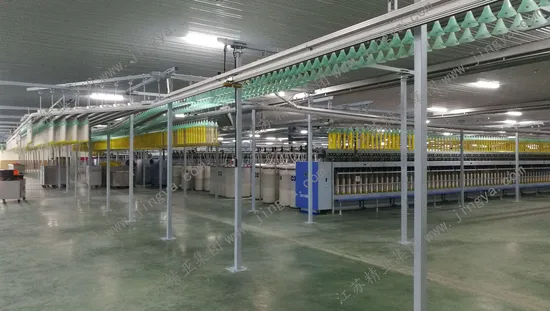

JYQJ series traveling cleaner is a new development of Jingya Group in the dust-filtering field. It can be widely used with spinning flame, roving flame, winding machine, twisting machine, air-jet loom, etc. It can effecively increase yarn quality, improve working environment and reduce labor cost.It is mainly applied for cleaning shuttleless loom. It can effectively improve working environment of the shuttleless loom, diminish blemish and yarn break and reduce cleaning work load. Being a new equipment to be matched in modern weaving process, it is adapted to and can meet different requirements of the user. The Main Features:
-Being of high reliability, easy operation, less maintenance, and more economic, it can meet continous working requirement in textile factories.
-The Switzerland Habasit belt adopted is high-quality imported product, combined with unique drive technology, a prolonged service life of it is ensured.
-Structural parts such as Separate Rail have high versatility and are finely processed, also equipped is a derailment guard device. Special fan of high performance.high efficiency and low energy consumption.
-Air volume can e adjusted easily to realize optimum operating effect.
-Besides multiple specifications, there're also configuration and modes like mechanical return when encountering obstacle and intermittent operation for the user to choose from.
-There are several outside suction systems to meet user's different requirements.
Technical DATA:

Volume Max.(m3/h)	1680~1160
Pressure Max.(pa)	2380~1330
Power(kw)	2.2~1.5 / 1.1~0.75
Travelling Speed(m/min)	9.5~13.5
Number of Blowing and Sucking tubes	2/2~4
Noise(dB[A])	<81
