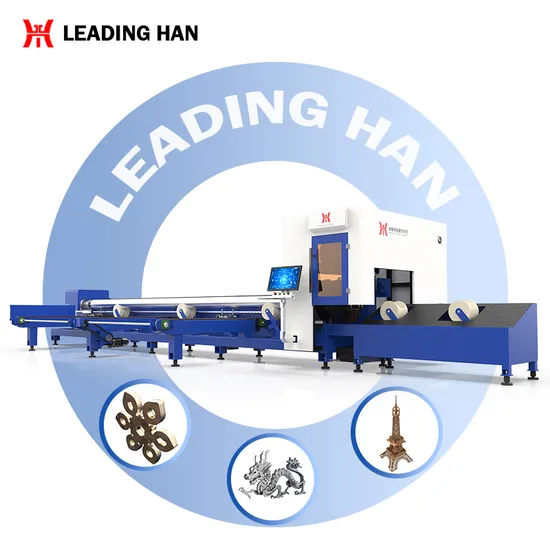

Hot Selling 1500W 2000W 3000W 6000W Metal Small Round Tube Processing Equipment High Precision Tube Cutting Machine CNC Laser Tube Cutting Machine

Product Description

Product Description
All-round fiber laser metal tube cutting machine, ranging from 1.5kw to 12kw laser power, processes pipes up to 7500mm with precision and efficiency. Equipped with automatic loading and unloading, it maximizes work efficiency and reduces labor costs. Moreover, it's perfect for cutting racetrack-shaped, oval-shaped stretching tubes, angle steel, channel steel, I-beam, and other special-shaped steels.
Machine Features:
1. The front and rear use a double pneumatic chuck clamping design. The rear chuck is equipped with an air blowing device to reduce debris on the pipe wall during cutting. The clamping force is adjustable, accommodating different loads to prevent deformation of thin pipe clamps and ensure thick pipe clamps are secure.
2. Paired with a fully automatic loading and unloading system, it saves labor costs, reduces the operator's workload, and increases production efficiency.
3. The operation is simple, with remote control for cutting, drilling, moving, calibrating, and emergency stopping. The wireless handle allows for free control of clamping pressure, making it convenient and practical for fully automated production. Product Advantages
Product advantages:
1. The front and rear double pneumatic chuck clamping design is adopted, and the rear chuck is equipped with a blowing device to reduce the slag attached to the pipe wall during the cutting process.
The clamping force can be adjusted arbitrarily, and different forces can bear different loads to avoid the deformation of thin pipe clamps and loose clamps of thick pipes.
2. With the fully automatic loading and unloading system, it saves labor costs and reduces the labor intensity of operators, making pipe cutting so easy.
3. The operation is simple, and the machine can be remotely controlled for cutting, perforation, movement, calibration, emergency stop and other operations.
Wireless handle control, free control of clamping pressure, convenient and practical, reducing pipe deformation.

Model	PS6013	PS6024	PS6035	PS9035	PS12035
brand name	Leading han
Plate processing size	customizable
Pipe processing range	10-550mm
Laser head brand	Raytools\Boci
Laser source brand	RAYCUS\IPG
Servo motor brand	DELTA
Guiderail	On the silver
Control system brand	Cypcut
Laser power	1500W-12000W
Maximum cutting length	7500mm
Cutting accuracy	±0.05 mm
Positioning accuracy	±0.03mm
Maximum running speed	60m/min
Maximum acceleration	0.5G-1G
Applicable Material	Round tubes, square tubes, special-shaped tubes, rectangular tubes, channel steels, I-beams, etc. can be cut into various shapes

Machine Details
Autofocus Laser Cutting Head
Auto-focus software adjusts lens for precision cutting of 20mm thick plates. 10x faster than manual adjustment.Collimator andfocus lenses have water-cooling heat sink, extending head life.
Intelligent Pneumatic Chuck
Pneumatic Self-Centering Chuck with Intelligent Jaws. Clamping is now fast and easy, taking only 3 seconds at the minimum, with high repeat precision. The jaws offer a large clamping force and stable feeding, ensuring cutting accuracy and efficient processing.
±45° bevel cutting for pipes and profiles
achieved with bevel tube laser cutter's dedicated head and auto-focus. Cuts round, square, angle, and channel steel.
Heavy plate welding machine bed
Super stable heavy duty plate welding machine bed for high power laser cutting. High-quality steel construction resists deformation and ensures accuracy. Efficient heat dissipation and dust removal extend equipment life.
Application Industry
LH Fiber Laser Cutting Machine is suitable for metal sheet or tube cutting with Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Spring Steel, Iron, Galvanized Iron, Galvanized, Aluminum, Copper, Brass, Bronze, Titanium, etc.
Different cutting thickness depends on different laser power selection in laser cutting machine.
Certifications
Company Profile
Jiangsu Linghan Laser Equipment Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, and informatization of professional laser complete equipment. We are committed to providing global users with intelligent laser equipment solutions and have a broad and stable range of benchmark clients in industries such as precision instruments, sheet metal manufacturing, automotive parts, and kitchen and bathroom hardware. Our professional team expertly adjusts to diverse requirements for laser equipment across different countries, regions, industries, materials, climates, and processing parameters. Located in Jiangsu, the company boasts a standardized intelligent equipment manufacturing base with a total area of over 20,000 square meters. Since its establishment, the company has developed rapidly, implementing standardized and efficient personnel and production management systems to ensure orderly and efficient production. We focus on the laser intelligent equipment manufacturing field, adhering to the principles of "technological innovation, lean production, research excellence, and honest management," and actively seek talented individuals to help the company soar!
After Sales Service
1. 3 year warranty, Provide a full range of technical support for life. 2. From monday to sunday 9am to 22pm. Experienced technician to guarantee lifetime online support. So there is no need to worry about technical support due to time difference.
3. Support local after-sales service.
Packing & Delivery
Professional package of laser cutting machine: 1. Whole film packaging tube laser cutting machine;
2. Anti-collision package edge;
3. Fumigation-free plywood wooden box and pallets with iron binding belt.
FAQ:
Q: Could we send you our board or pipe samples so that you can demonstrate to us the cutting methods and results of our materials?
A: We always welcome customers to send us their materials for testing. Please send us at least 3 pieces of each size.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: What customized services you provided?
A: LH Laser is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
